- RS Stock No.:
- 183-3682
- Mfr. Part No.:
- 740444
- Brand:
- ABB
Available to back order for despatch 06/06/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£265.50
(exc. VAT)
£318.60
(inc. VAT)
Units | Per unit |
1 + | £265.50 |
- RS Stock No.:
- 183-3682
- Mfr. Part No.:
- 740444
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

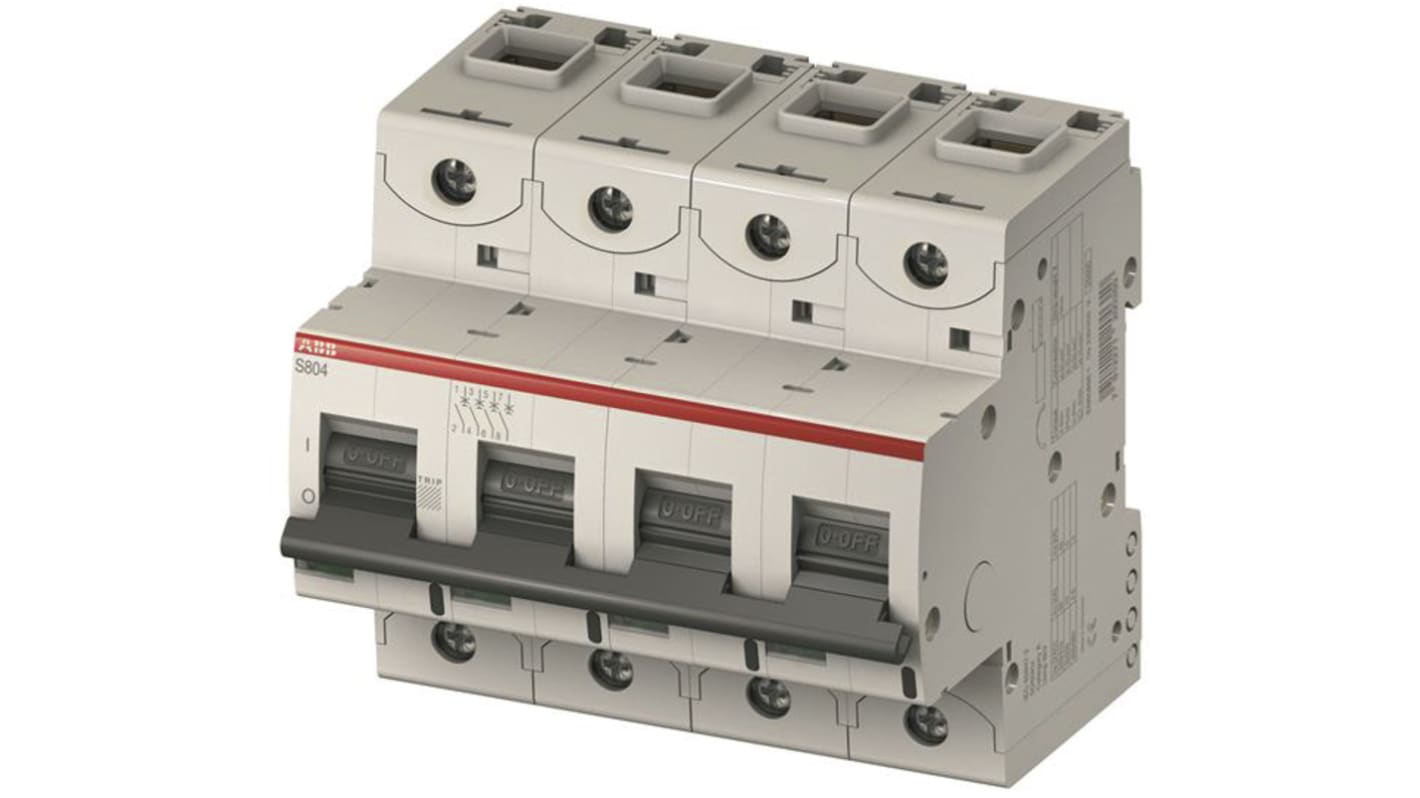

The S804N-C63 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804N-C63 allows the use for residential, commercial and industrial applications. The extensive range of accessory makes the use of S804N-C63 more comfortable. Due to the fast arc extinction of S804N-C63 your application will be secured.
Specifications
Attribute | Value |
---|---|
Number of Poles | 4P |
Current Rating | 63A |
Tripping Characteristics | Type C |
Rated AC Voltage | 690V |
Rated DC Voltage | 375V |
Breaking Capacity at Maximum Voltage Rating | 36 kA |
Range | High Performance |
Series | S800N |
Circuit Breaker Type | MCB |
Width | 82.5mm |
Length | 106mm |
Mounting Style | DIN Rail Mount |
Depth | 95mm |
Model Number | S804N-C63 |
Terminal Contact Type | Screw |
