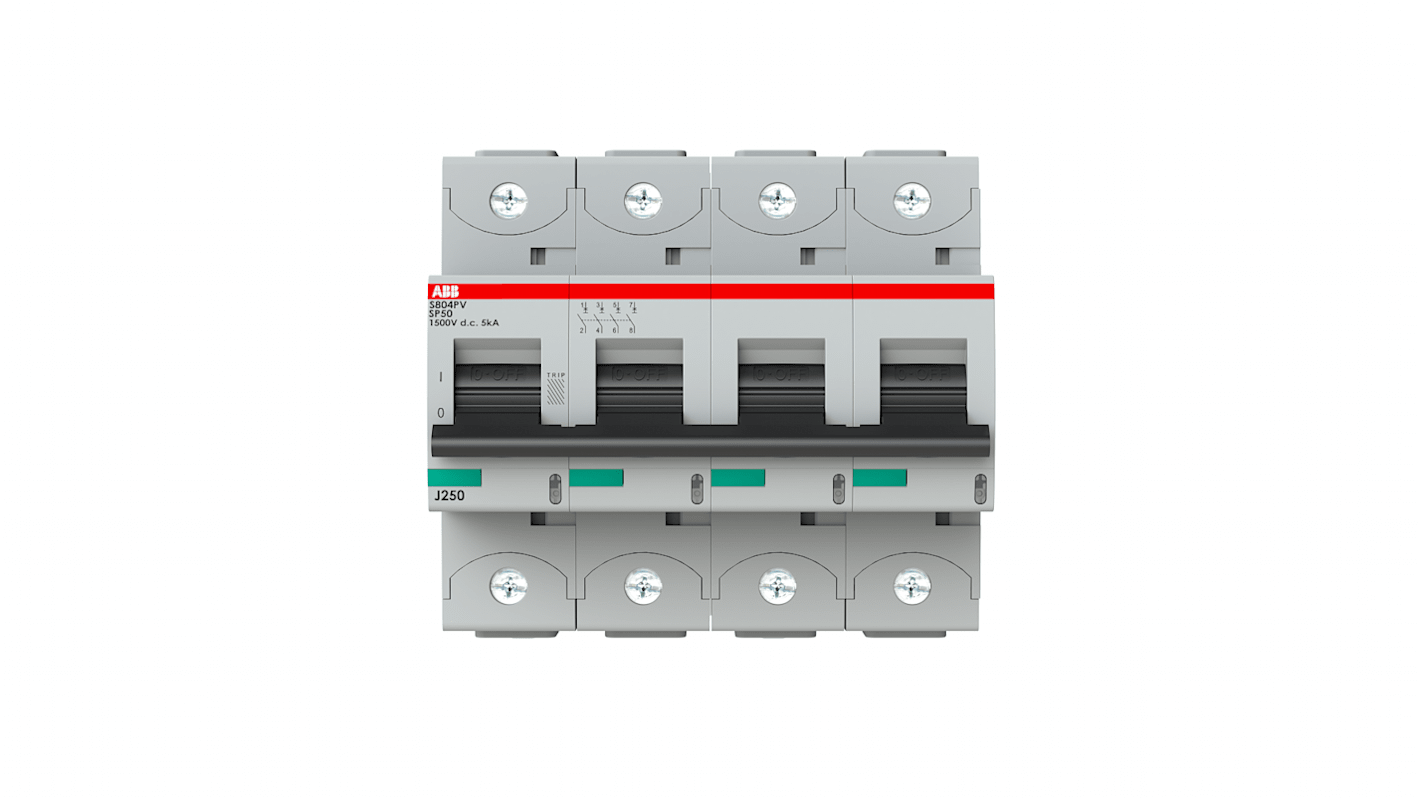

ABB S800PV MCB, 4P, 50A Curve B, 1500V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 225-5948
- Mfr. Part No.:
- 2CCF019629R0001 S804PV-SP50 - 5 kA
- Brand:
- ABB
Subtotal (1 unit)*
£410.55
(exc. VAT)
£492.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £410.55 |
*price indicative
- RS Stock No.:
- 225-5948
- Mfr. Part No.:
- 2CCF019629R0001 S804PV-SP50 - 5 kA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 4 | |
Current Rating | 50A | |
Tripping Characteristics | Type B | |
Rated DC Voltage | 1500V | |
Breaking Capacity at Maximum Voltage Rating | 5 kA | |
Series | S800PV | |
Circuit Breaker Type | MCB | |
Length | 82.5mm | |
Width | 106mm | |
Mounting Style | DIN Rail Mount | |
Depth | 82.5mm | |
Model Number | S804PV-SP50 | |
Tripping Mechanism | Thermal | |
Reset Actuator Type | Toggle Switch | |
Terminal Contact Type | Cage Clamp | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Current Rating 50A | ||
Tripping Characteristics Type B | ||
Rated DC Voltage 1500V | ||
Breaking Capacity at Maximum Voltage Rating 5 kA | ||
Series S800PV | ||
Circuit Breaker Type MCB | ||
Length 82.5mm | ||
Width 106mm | ||
Mounting Style DIN Rail Mount | ||
Depth 82.5mm | ||
Model Number S804PV-SP50 | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Cage Clamp | ||
ABB S800PV Series MCB, 50A Current Rating, 4 Poles - 2CCF019629R0001 S804PV-SP50 - 5 kA
This Miniature Circuit Breaker from ABB is a compact 4-pole circuit breaker designed for DC applications. It has a electrical rating of 50A and 1500V. Its DIN rail mounting style allows for easy installation.
Features & Benefits
• 5kA breaking capacity ensures effective fault clearing
• Type B circuit breaker suitable for resistive loads
• Cage terminal contact type allows secure wire connection
• Compact dimensions aid in space-efficient installations
• Type B circuit breaker suitable for resistive loads
• Cage terminal contact type allows secure wire connection
• Compact dimensions aid in space-efficient installations
Applications
• Used in solar inverters and photovoltaic systems
• Utilised within renewable energy applications
• Employed in battery storage systems
• Utilised within renewable energy applications
• Employed in battery storage systems
Will it automatically reset after a fault?
No, it requires manual reset using the toggle switch.
Can it be installed in conjunction with other breakers?
Yes, it is compatible with other DIN rail mounted products.
Is it effective for protecting against overloads?
Yes, the thermal mechanism provides overload protection.
