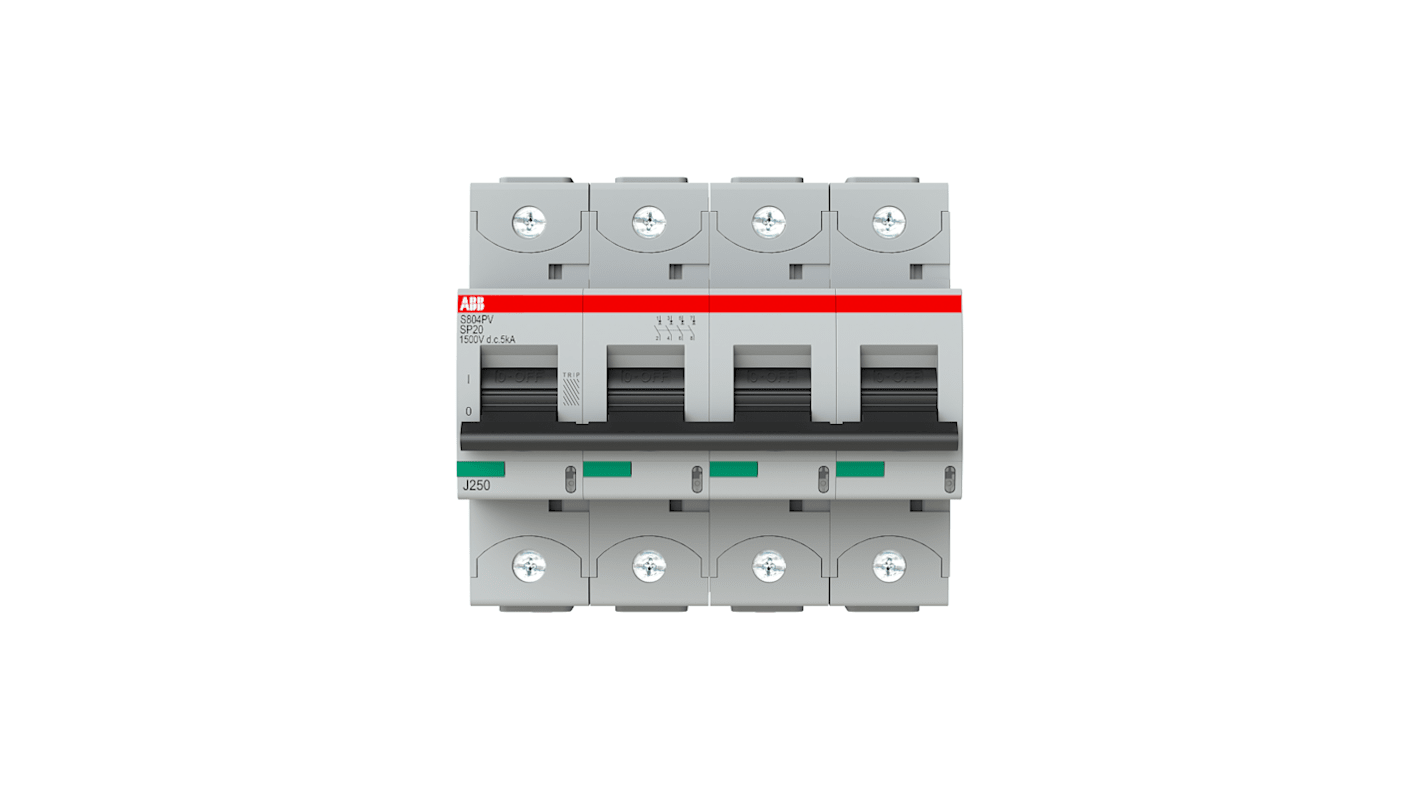

ABB S800PV MCB, 4P, 20A Curve B, 1500V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 225-5944
- Mfr. Part No.:
- 2CCF019625R0001 S804PV-SP20 - 5 kA
- Brand:
- ABB
Subtotal (1 unit)*
£367.50
(exc. VAT)
£441.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £367.50 |
*price indicative
- RS Stock No.:
- 225-5944
- Mfr. Part No.:
- 2CCF019625R0001 S804PV-SP20 - 5 kA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type B | |
| Rated DC Voltage | 1500V | |
| Breaking Capacity at Maximum Voltage Rating | 5 kA | |
| Series | S800PV | |
| Circuit Breaker Type | MCB | |
| Width | 106mm | |
| Length | 82.5mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 82.5mm | |
| Model Number | S804PV-SP20 | |
| Terminal Contact Type | Cage Clamp | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Current Rating 20A | ||
Tripping Characteristics Type B | ||
Rated DC Voltage 1500V | ||
Breaking Capacity at Maximum Voltage Rating 5 kA | ||
Series S800PV | ||
Circuit Breaker Type MCB | ||
Width 106mm | ||
Length 82.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 82.5mm | ||
Model Number S804PV-SP20 | ||
Terminal Contact Type Cage Clamp | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal | ||
ABB S800PV Series MCB, 20A Current Rating, 4 Poles - 2CCF019625R0001 S804PV-SP20 - 5 kA
This MCB is designed for effective circuit protection with a 4-pole configuration, allowing safe management of electrical circuits. It measures 106mm in width and 82.5mm in both length and depth, and is compatible with standard DIN rail mounting. Its robust construction ensures consistent performance in various environments, with a current rating of 20A.
Features & Benefits
• High breaking capacity to manage surge conditions efficiently
• Thermal tripping mechanism for reliable fault detection
• Compact design suitable for DIN rail mounting
• Toggle switch for straightforward manual operation
• Cage terminal contact type for secure connections
• Thermal tripping mechanism for reliable fault detection
• Compact design suitable for DIN rail mounting
• Toggle switch for straightforward manual operation
• Cage terminal contact type for secure connections
Applications
• Used with solar photovoltaic systems for DC protection
• Ideal for commercial and industrial setups
• Utilised in electrical distribution boards
• Appropriate for integration within renewable energy systems
• Ideal for commercial and industrial setups
• Utilised in electrical distribution boards
• Appropriate for integration within renewable energy systems
Can it handle 1500V DC?
Yes, it provides effective protection at 1500V DC.
Will it operate reliably in high-temperature conditions?
Yes, it is designed to function effectively in various environments.
Is it suitable for automation applications?
Yes, it is compatible with many automation systems.
