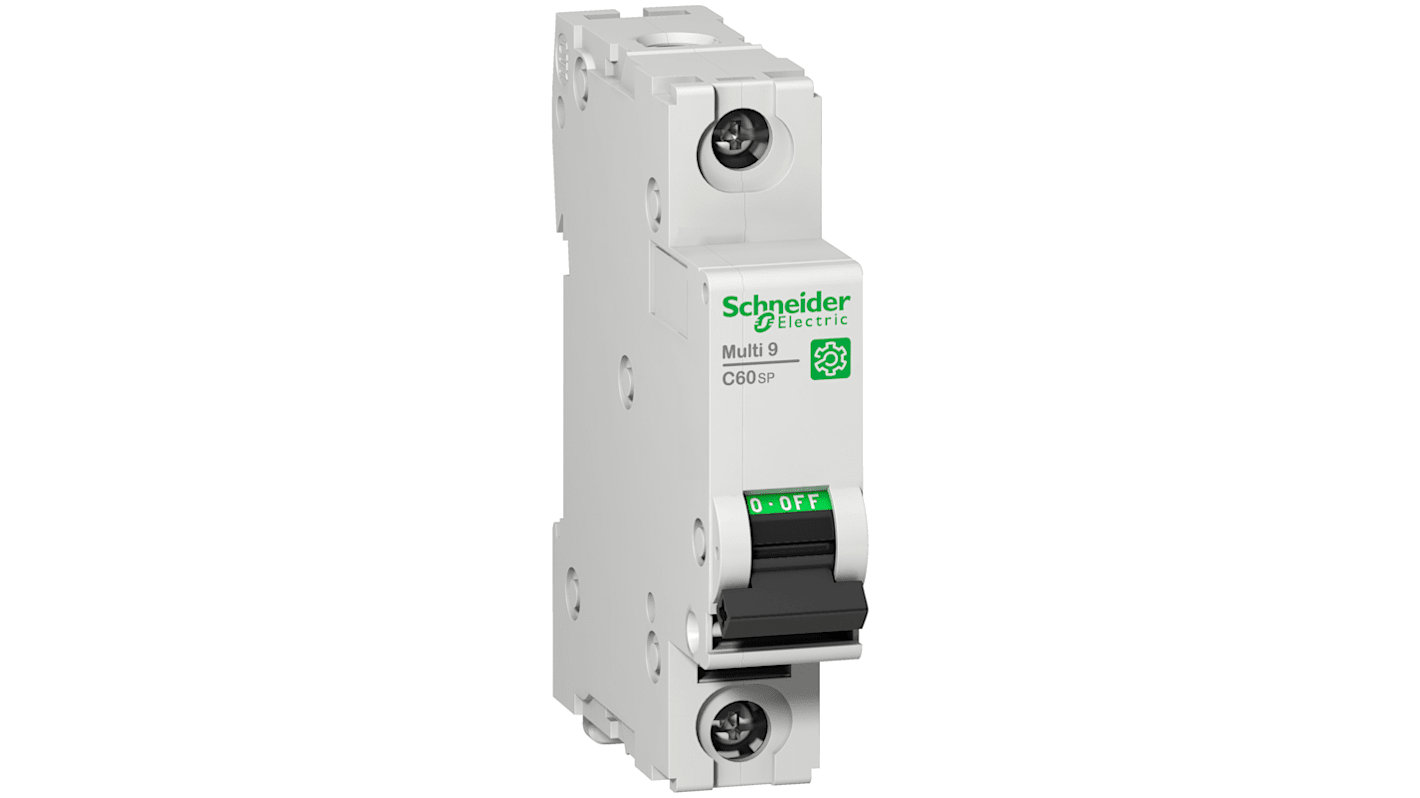

Schneider Electric Multi9 Multi9 Miniature Circuit Breaker, 1-Pole, 1A, Type C, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 211-2354
- Mfr. Part No.:
- M9F22101
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£28.97
(exc. VAT)
£34.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12 unit(s) shipping from 11 May 2026
- Plus 35 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.97 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-2354
- Mfr. Part No.:
- M9F22101
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 1A | |
| Tripping Characteristics | Type C | |
| Rated DC Voltage | 60V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 10kA | |
| Range | Multi9 | |
| Series | Multi9 | |
| Terminal Type | Tunnel | |
| Height | 81mm | |
| Depth | 72mm | |
| Width | 18mm | |
| Standards/Approvals | GB 14048.2, CSA C22.2 No 235, EN/IEC 60947-2, UL 1077 | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 1A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 60V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 10kA | ||
Range Multi9 | ||
Series Multi9 | ||
Terminal Type Tunnel | ||
Height 81mm | ||
Depth 72mm | ||
Width 18mm | ||
Standards/Approvals GB 14048.2, CSA C22.2 No 235, EN/IEC 60947-2, UL 1077 | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
Schneider Electric C60SP Series MCB, 1A, 20kA Breaking Capacity (at Maximum Voltage Rating) - M9F22101
This thermal-magnetic circuit breaker is designed for effective distribution applications. Its robust construction provides protection to electrical circuits against overloads and short circuits. The 415V MCB serves as a dependable safeguard in diverse environments, ensuring safety and reliability in electrical installations.
Features & Benefits
• Suitable for AC and DC networks, enhancing flexibility
• 3kA breaking capacity at maximum voltage for reliable protection
• Type C circuit breaker designed for inductive loads
• Tunnel terminal design facilitates easy cable connections
• Thermal-magnetic mechanism ensures accurate tripping response
• Compact design optimises DIN rail space usage
Applications
• Suitable for electrical installations needing short circuit protection
• Used in industrial environments for distribution management
• Ideal for applications with inductive loads, such as motors
• Promotes safety in residential electrical systems
What voltage ratings can it handle effectively?
It can manage operational voltages of 240V AC, 415V AC, and 60V DC.
Can it be easily mounted in different environments?
Yes, it is designed for straightforward DIN rail mounting.
How does it signal operational status?
The product features a local ON/OFF indicator for clear status reporting.
Is it capable of providing isolation?
Yes, it is suitable for isolation applications.
What is the recommended cable gauge for terminal connections?
The terminal connections support rigid cables from 1mm² to 25mm².
