Schneider Electric Multi9 Multi9 Miniature Circuit Breaker, 1-Pole, 13A, Type C, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 211-2358
- Mfr. Part No.:
- M9F22113
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£20.75
(exc. VAT)
£24.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.75 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-2358
- Mfr. Part No.:
- M9F22113
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 13A | |
| Tripping Characteristics | Type C | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | DIN Rail | |
| Range | Multi9 | |
| Series | Multi9 | |
| Terminal Type | Tunnel | |
| IP Rating | IP20, IP40 | |
| Height | 81mm | |
| Depth | 72mm | |
| Width | 18mm | |
| Standards/Approvals | UL 1077, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 235 | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 13A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 10kA | ||
Mount Type DIN Rail | ||
Range Multi9 | ||
Series Multi9 | ||
Terminal Type Tunnel | ||
IP Rating IP20, IP40 | ||
Height 81mm | ||
Depth 72mm | ||
Width 18mm | ||
Standards/Approvals UL 1077, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 235 | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR

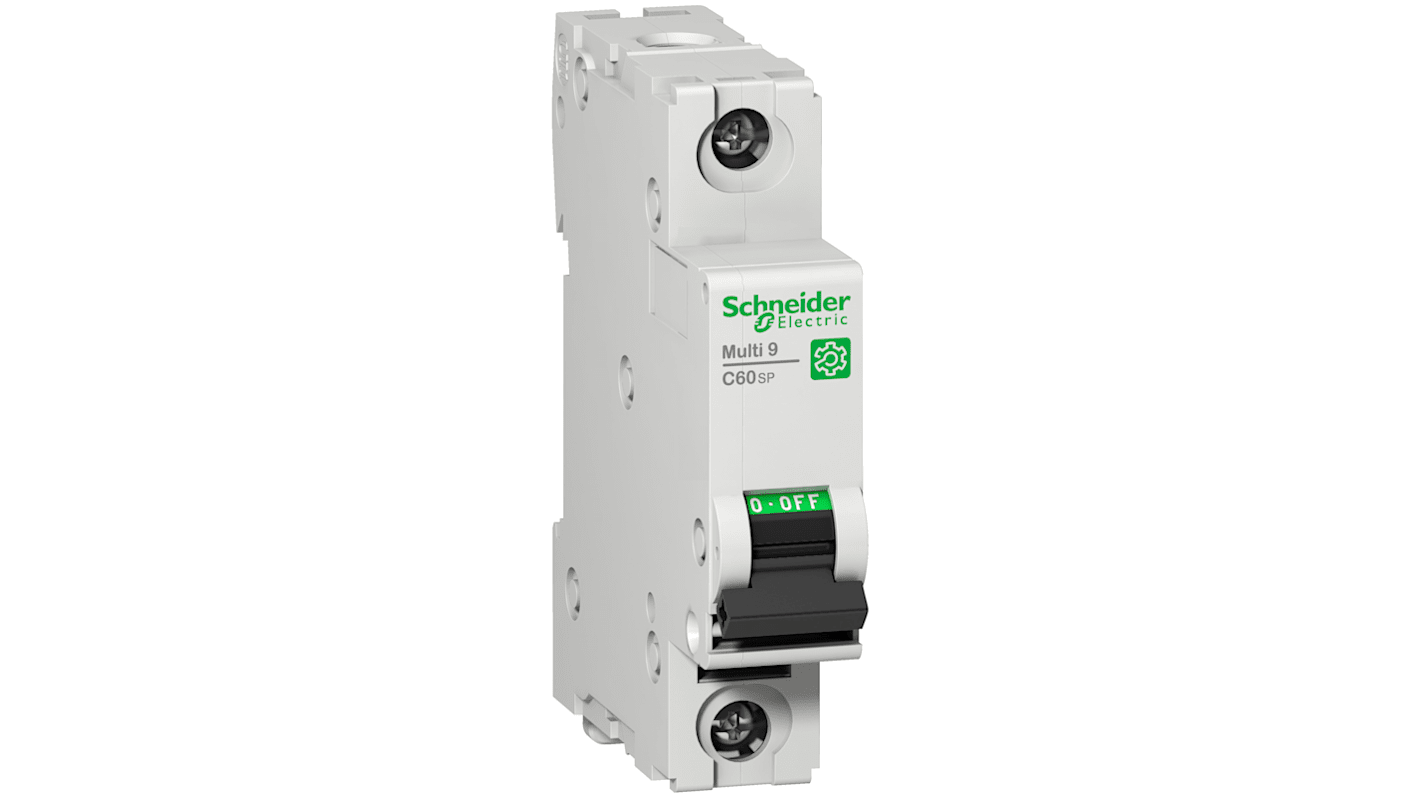

Schneider Electric C60SP Series MCB, 1 Pole, 13A Current Rating - M9F22113
This miniature circuit-breaker (MCB) is designed for distribution systems, specifically as a 1P (single pole) device rated for 13A. With dimensions of 18mm in width, 81mm in length, and 72mm in depth, this compact design fits efficiently onto a DIN rail. The device ensures protection by featuring a thermal-magnetic tripping mechanism and a rated operational voltage of 415V AC, making it suitable for a wide range of applications.
Features & Benefits
• Provides a breaking capacity of 20kA for enhanced safety
• Utilises thermal-magnetic technology for operation
• Compact DIN rail mount design for ease of installation
• Tunnel terminal connections accommodate flexible and rigid wires
• Operates effectively in temperatures ranging from -30°C to 70°C
• Compliant with Green Premium for environmentally conscious choices
Applications
• Designed for electrical distribution systems
• Suitable for use in automation and control panels
• Ideal for commercial and industrial installations
• Utilised in applications requiring circuit protection
Can it handle both AC and DC systems?
Yes, it is rated for both AC and DC applications.
Will it provide isolation for the circuit?
Yes, it is suitable for isolation as per standards.
Is it possible to padlock the switch in an off position?
Yes, the device has a provision for padlocking.
