Siemens SENTRON 5SY6 MCB, 1P, 4A Curve B, 440V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 203-2269
- Mfr. Part No.:
- 5SY6104-6
- Brand:
- Siemens
Subtotal (1 unit)*
£17.81
(exc. VAT)
£21.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.81 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 203-2269
- Mfr. Part No.:
- 5SY6104-6
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Number of Poles | 1 | |
Current Rating | 4A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 440V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | SENTRON | |
Series | 5SY6 | |
Circuit Breaker Type | MCB | |
Width | 18mm | |
Length | 90mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Better World Claim | Extended product life | |
Better World Product | Yes | |
Reset Actuator Type | Toggle Switch | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand Siemens | ||
Number of Poles 1 | ||
Current Rating 4A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 440V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range SENTRON | ||
Series 5SY6 | ||
Circuit Breaker Type MCB | ||
Width 18mm | ||
Length 90mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Better World Claim Extended product life | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE

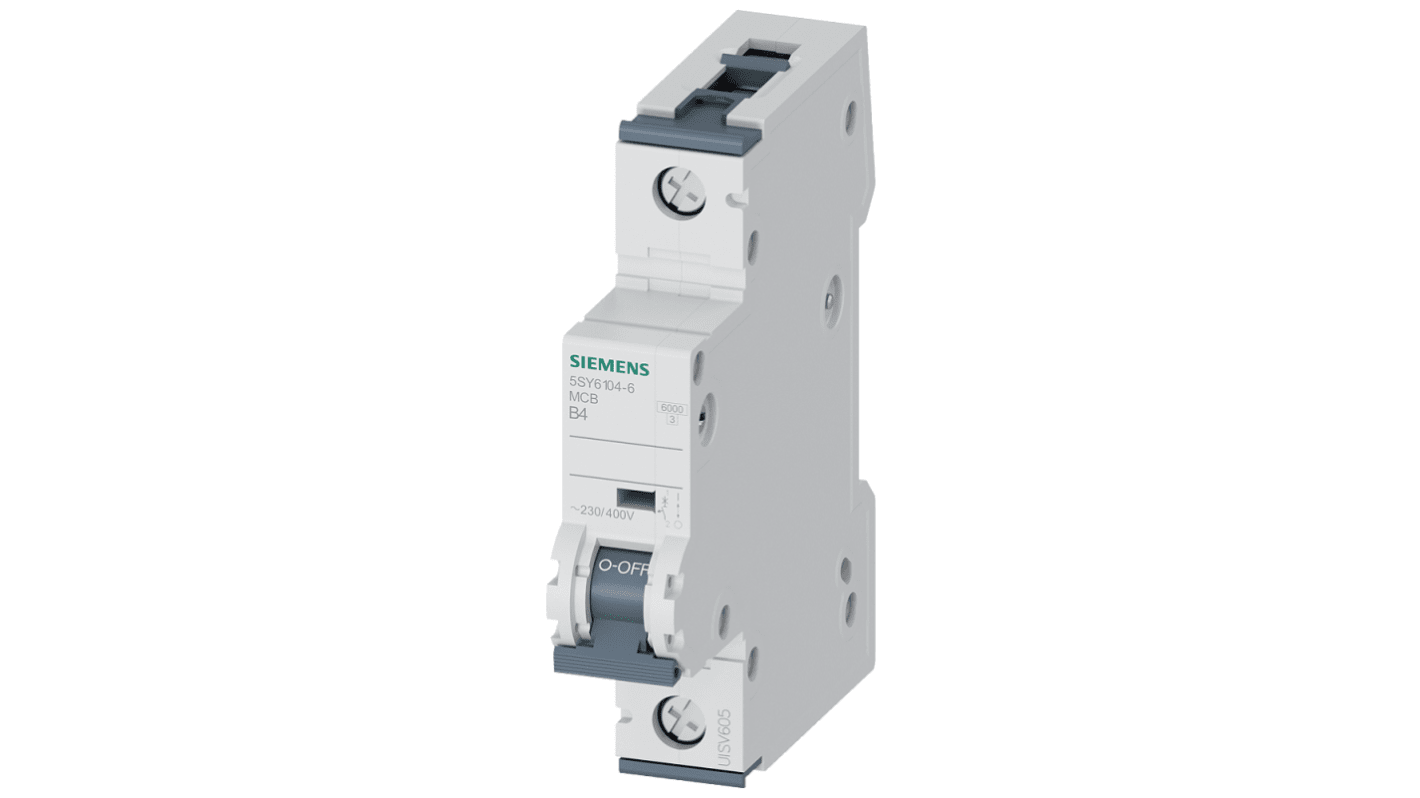

Siemens 5SY6 Series MCB, 90mm Length, DIN Rail Mount Mounting Style - 5SY6104-6
This miniature circuit breaker protects electrical circuits by providing efficient overcurrent and short-circuit protection. With Type B tripping characteristics, it is suitable for residential and light commercial applications, ensuring safety and consistent performance. Its compact design allows for straightforward installation on DIN rails, making it a practical choice for a range of environments.
Features & Benefits
• 6kA breaking capacity for effective protection
• 440V rated voltage to accommodate a variety of applications
• Type B tripping characteristics for dependable operation
• Screw terminals for secure connections
• Touch protection enhances user safety
• Efficient design promotes product longevity
• 440V rated voltage to accommodate a variety of applications
• Type B tripping characteristics for dependable operation
• Screw terminals for secure connections
• Touch protection enhances user safety
• Efficient design promotes product longevity
Applications
• Residential power distribution systems
• Industrial machinery protection
• Infrastructure projects requiring circuit protection
• Industrial machinery protection
• Infrastructure projects requiring circuit protection
How does the circuit breaker respond to overload conditions?
It operates based on Type B tripping characteristics, allowing it to trip for overloads, which is suitable for devices with high inrush currents.
What is the maximum conductor cross-section it can accommodate?
It can accept a maximum conductor cross-section of 35mm² for both solid and stranded conductors, allowing for versatile installations.
Can it function effectively in varying ambient temperatures?
Yes, it operates within a temperature range of -25°C to 55°C, ensuring reliability in different environmental conditions.
What type of mounting method is utilised for installation?
It employs a quick assembly system for efficient DIN rail mounting.
Is it compatible with supplementary devices?
Yes, it supports the installation of supplementary devices, enhancing functionality in complex applications.
