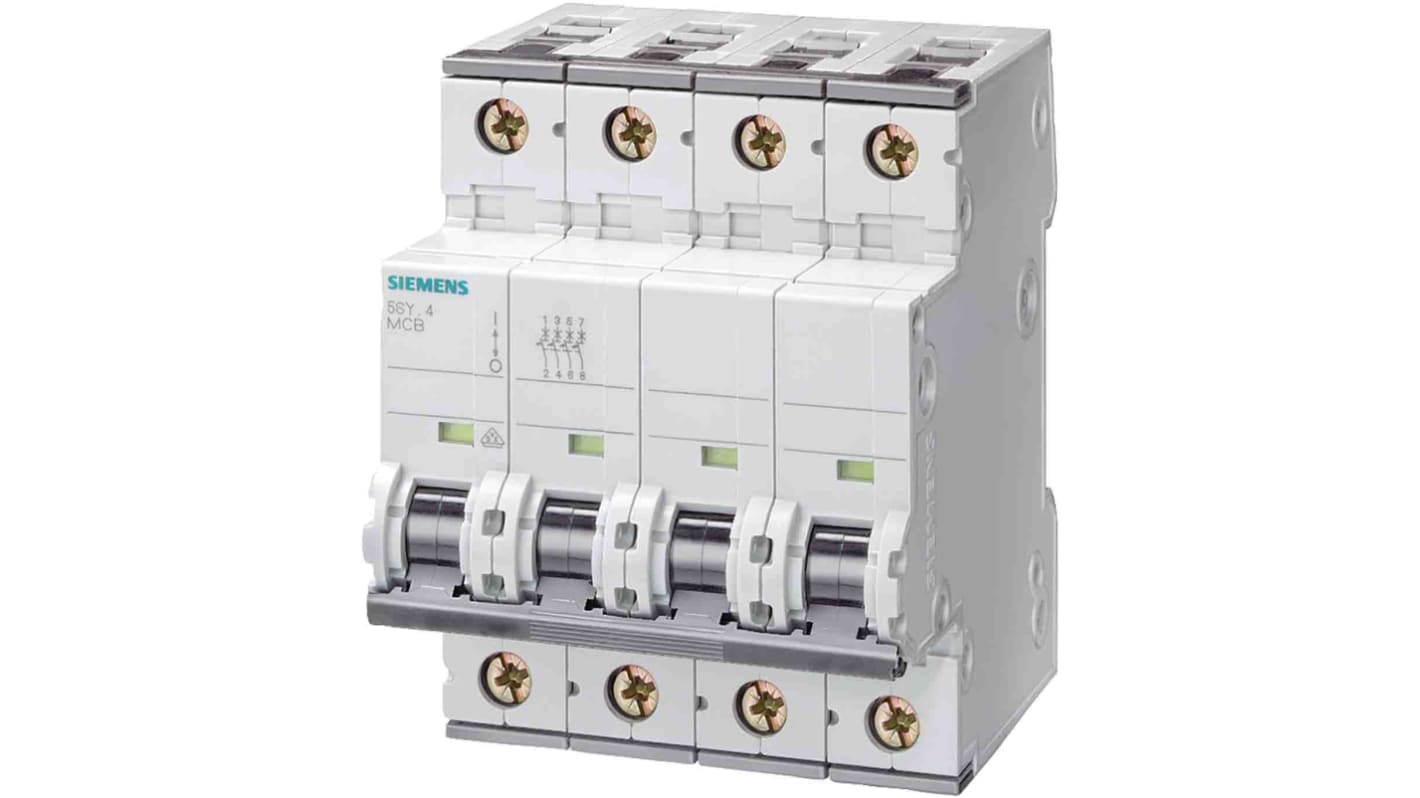

Siemens SENTRON 5SY6 MCB, 3P+N, 4A Curve C, 400V AC, 72V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 209-6692
- Mfr. Part No.:
- 5SY6604-7
- Brand:
- Siemens
Available to back order for despatch 03/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£120.81
(exc. VAT)
£144.97
(inc. VAT)
| Units | Per unit |
| 1 + | £120.81 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6692
- Mfr. Part No.:
- 5SY6604-7
- Brand:
- Siemens
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Siemens SENTRON series miniature circuit breaker has a 3+N pole and has a current breaking capacity of 6kA. In the event of an overload or short-circuit this miniature circuit breakers safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The device have a uniform design and, with the appropriate accessories, can be expanded by many additional functions.
Type C Tripping characteristic
simple to mount and install
simple to mount and install
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P+N |
| Current Rating | 4A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Breaking Capacity at Maximum Voltage Rating | 5 kA |
| Range | SENTRON |
| Series | 5SY6 |
| Circuit Breaker Type | MCB |
| Length | 90mm |
| Width | 72mm |
| Mounting Style | DIN Rail Mount |
| Depth | 76mm |
| Model Number | 5SY6604-7 |
| Better World Product | Yes |
| Better World Claim | Designed for disassembly, Extended product life |
| Terminal Contact Type | Screw |
