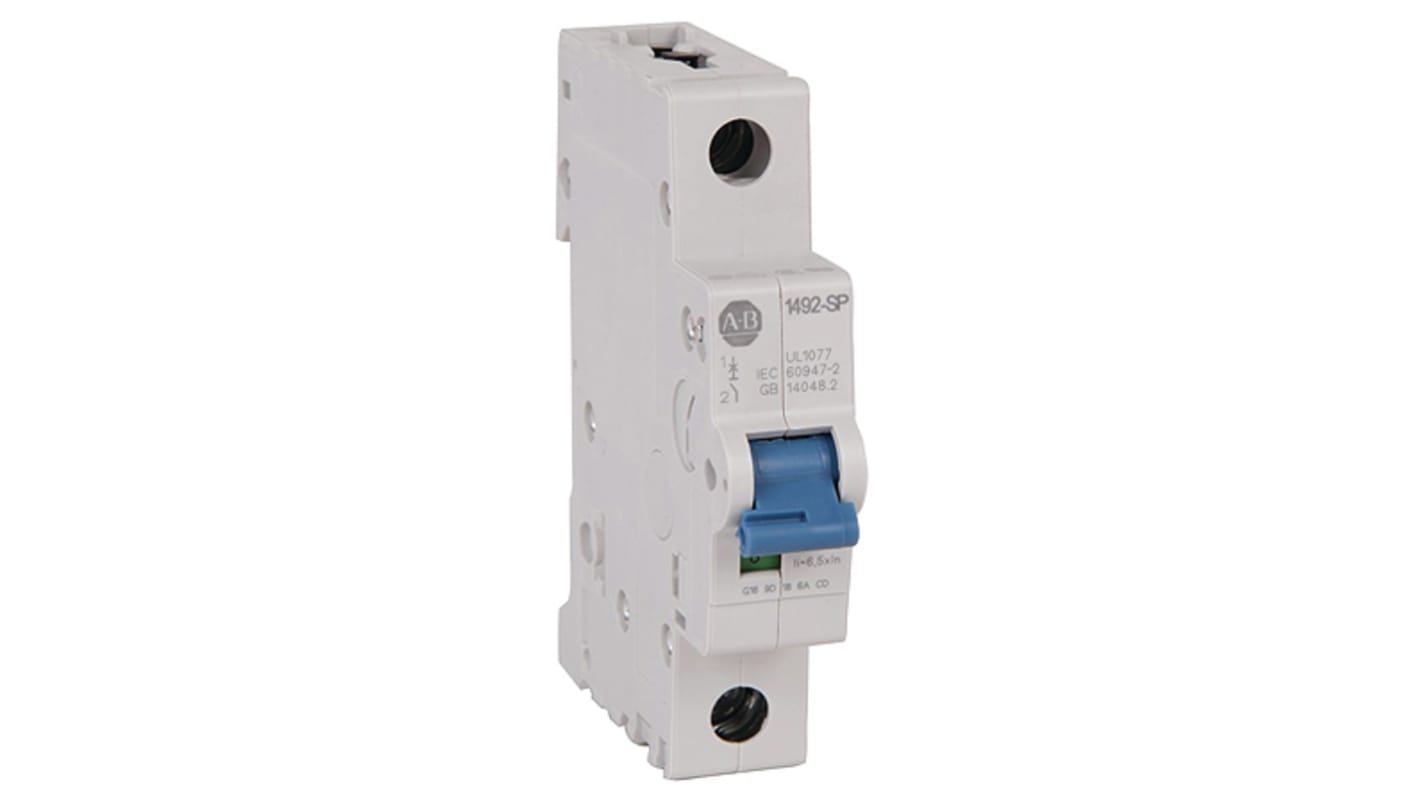

Allen Bradley 1492 1492-SPM MCB, 1P, 1A Curve D, 277V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1493
- Mfr. Part No.:
- 1492-SPM1D010
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£19.92
(exc. VAT)
£23.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.92 |
*price indicative
- RS Stock No.:
- 125-1493
- Mfr. Part No.:
- 1492-SPM1D010
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 1 | |
Current Rating | 1A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 277V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Width | 74mm | |
Length | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Tripping Mechanism | Thermal-Magnetic | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Application | General Purpose | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 1 | ||
Current Rating 1A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 277V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Width 74mm | ||
Length 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Application General Purpose | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- BG
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D
Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.
These MCBs have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCBs help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.
Type D MCBs are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.
Features and Benefits:
• Instantaneous break time
• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley Mini Circuit Breaker, 10kA Breaking Capacity, 1A Current Rating - 1492-SPM1D010
Protect your electrical circuits with this 1-pole miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. This high-performance safety device automatically cuts the power supply when faults are detected to reduce the risk of electrical shocks and fire. As a Type-D unit, this MCB will trip instantly at a rate of between 10 to 25 times its 1A (ampere) current rating, making it suitable for industrial and commercial applications. Confidently use this item with very high-inductive load equipment like x-ray machines, uninterruptible power supply (UPS) systems and transformers.
• High impact resistance prevents nuisance power cuts leading to production downtimes• DIN rail mounting for fast, easy and space-saving installation• Thermal-magnetic tripping mechanism ensures immediate electricity supply cuts to reduce risks of injuries to workers and damage to equipment
Standards and Certifications
• UL (Underwriters' Laboratories)• CSA (Canadian Standards Association)• CE (Conformité Européenne)• CCC (China Compulsory Certificate)• VDE (Verband der Elektrotechnik)• RoHS (Restriction of Hazardous Substances)
Can I install this MCB in harsh conditions?
Yes. This essential safety device has a calibration temperature of +40˚C and can withstand jolts and shocks without sustaining damage.
