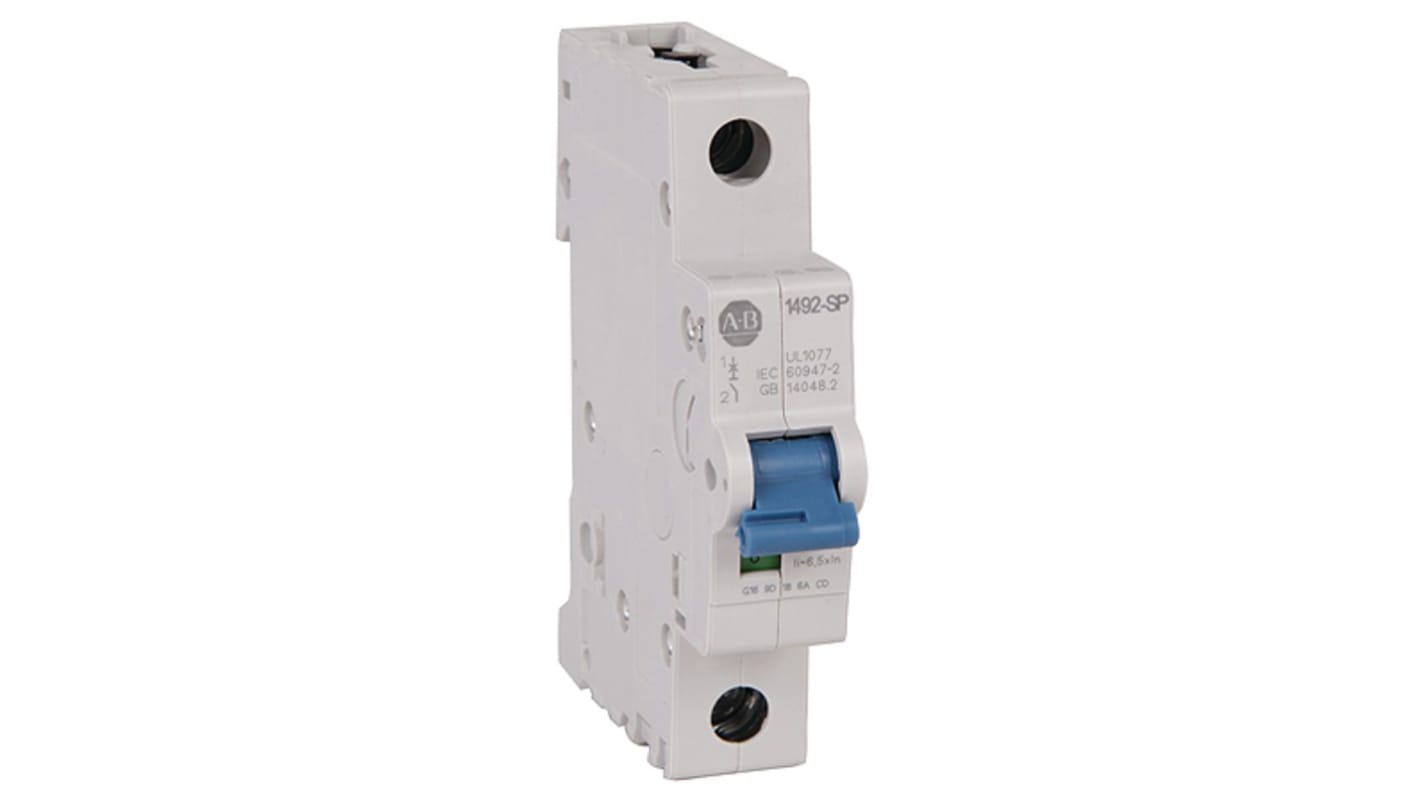

Allen Bradley 1492 1492-SPM MCB Mini Circuit Breaker, 1P, 1A Curve B, 277V AC, 48V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 125-1416
- Mfr. Part No.:
- 1492-SPM1B010
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£19.92
(exc. VAT)
£23.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.92 |
*price indicative
- RS Stock No.:
- 125-1416
- Mfr. Part No.:
- 1492-SPM1B010
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 1 | |
Current Rating | 1A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 277V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Length | 17.5mm | |
Width | 74mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Reset Actuator Type | Toggle Switch | |
Break Time | Instantaneous | |
Tripping Mechanism | Thermal-Magnetic | |
Application | General Purpose | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 1 | ||
Current Rating 1A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 277V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Length 17.5mm | ||
Width 74mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
Tripping Mechanism Thermal-Magnetic | ||
Application General Purpose | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- BG
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B
The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.
The 1492-SPM series of MCBs are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCBs can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.
A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCBs are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.
Features and Benefits:
• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley Mini Circuit Breaker, Breaking Capacity 10kA, 1A Current Rating - 1492-SPM1B010
Provide reliable protection for your electrical systems with this high-performance mini circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. The unit works by cutting off the power supply to your equipment when an electrical fault occurs and only restoring it when the error is resolved. As it comes in a thermoplastic housing, this is a durable and impact-resistant choice for use in harsh environments. For easy diagnosis of an issue, it has clear red and green indicators to show you when it's off or on. MCBs like this one are designed for general purpose use in electrical circuits.
• Light weight of 115g, so it's easy to handle and won't put strain on your equipment
• Easy DIN rail mounting saves time and effort
• Wide operating temperature range of -40°C to +70°C for use in harsh environments
• Easy DIN rail mounting saves time and effort
• Wide operating temperature range of -40°C to +70°C for use in harsh environments
Standard and Certifications
• UL (Underwriters' Laboratory)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)
• CCC (China Compulsory Certificate)
• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)
• CCC (China Compulsory Certificate)
• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)
Does this mini circuit breaker automatically reset?
No, it doesn't. It's designed to trip when a fault occurs and should be manually reset when the error has been cleared.
