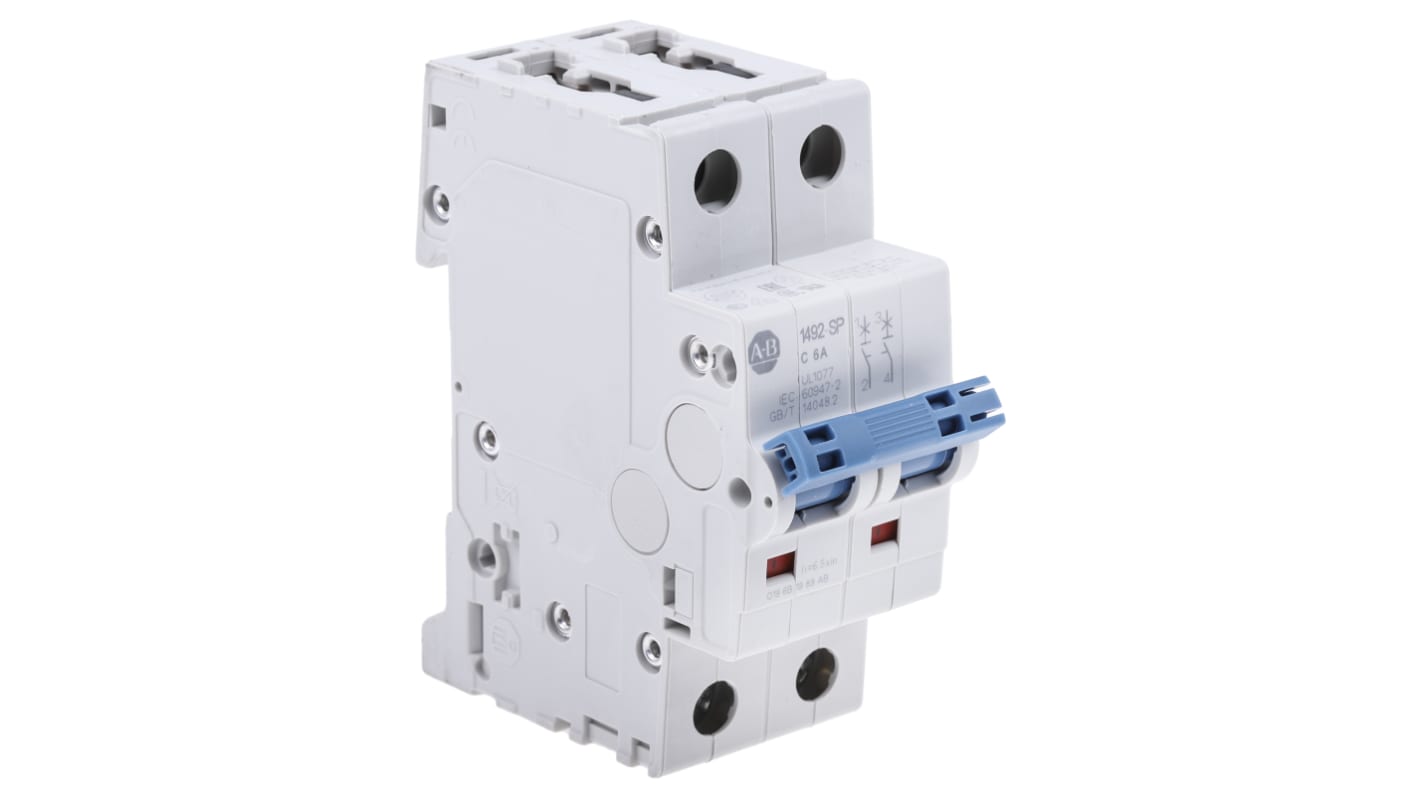

Allen Bradley 1492 1492-SPM MCB, 2P, 6A Curve C, 277V AC, 96V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1471
- Mfr. Part No.:
- 1492-SPM2C060
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£42.28
(exc. VAT)
£50.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.28 |
*price indicative
- RS Stock No.:
- 125-1471
- Mfr. Part No.:
- 1492-SPM2C060
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 2 | |
Current Rating | 6A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 277 V, 480V | |
Rated DC Voltage | 96V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Length | 35mm | |
Width | 75mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Tripping Mechanism | Thermal-Magnetic | |
Application | General Purpose | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 2 | ||
Current Rating 6A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 277 V, 480V | ||
Rated DC Voltage 96V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Length 35mm | ||
Width 75mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal-Magnetic | ||
Application General Purpose | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- BG
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C
Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.
These 1492-SPM MCBs have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.
Type C MCBs are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.
Features and Benefits:
• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley Mini Circuit Breaker, 10kA Breaking Capacity, 6A Current Rating - 1492-SPM2C060
Prevent short circuits in your electrical supply with Rockwell Automation's Allen Bradley miniature circuit breaker (MCB). The unit automatically trips when an overload occurs by sensing when a current reaches its maximum capacity of 10kA (kiloamps). Two switches extend a few inches from the main unit to provide protected clearance and enhance safety. MCBs like this are commonly used with highly inductive loads where switching surges are common, such as in fluorescent lighting and small electric motors.
What are MCBs and how do they work?
• Indicator window is red when on and green when off for easy status identification• Screw terminals for secure fixing• IP20 (ingress protection) finger-safe switches protect against electric shocks• DIN rail mountable for simple, convenient installation• Shock and vibration resistant design prevents nuisance tripping
Standards and Certifications
• UL (Underwriters' Laboratories)• CSA (Canadian Standards Association)• CE (Conformité Européenne)• VDE (Verband der Elektrotechnik)
Does this MCB have any special installation features?
This MCB has dual terminals for flexibility in how you wire the unit. The enhanced terminal design directs wires into the terminal openings, helping to prevent wiring misses. You can install it with up to six accessory installations for enhanced current safety.
