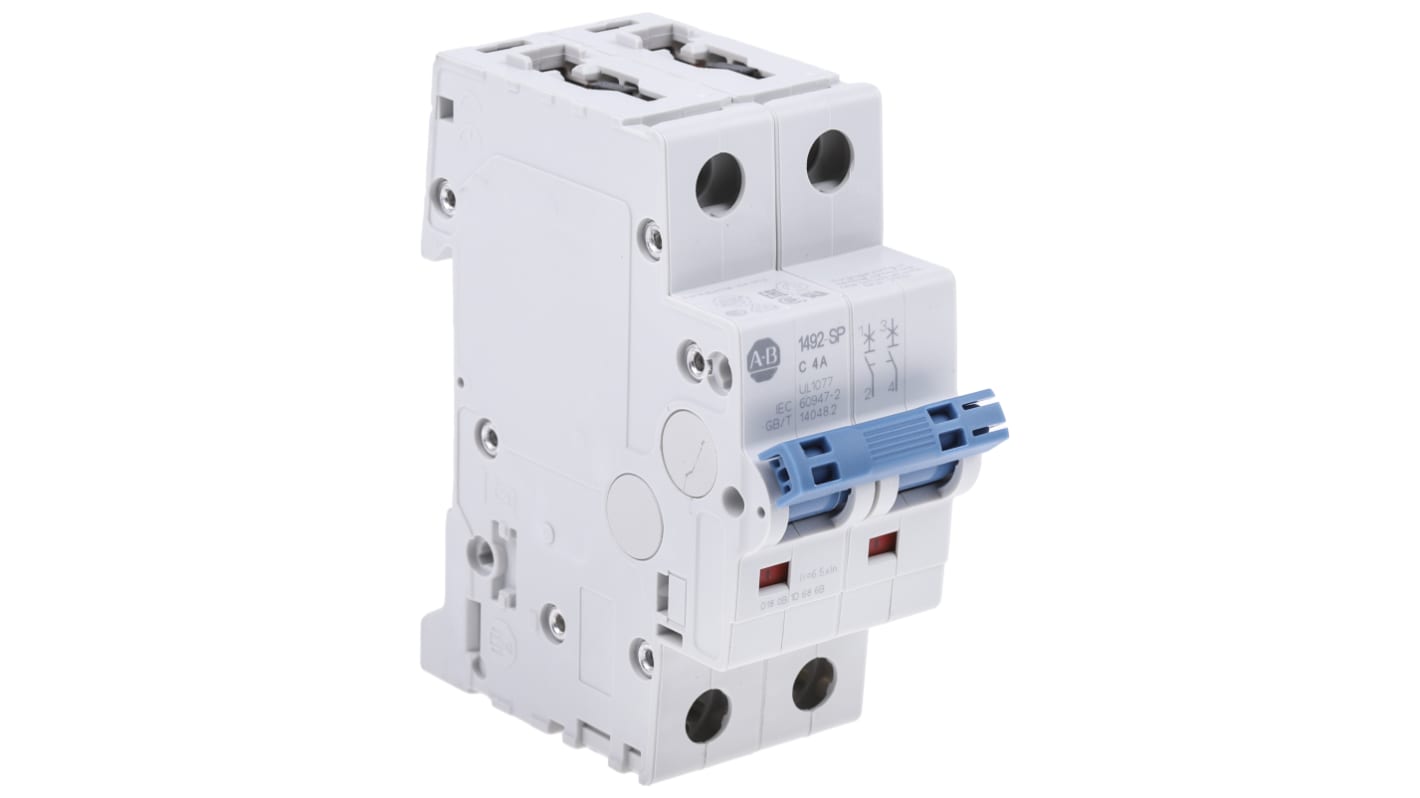

    Allen Bradley 1492 1492SPM MCB, 2P Poles, 4A Curve C, 277V AC, 96V DC, 10 kA Breaking Capacity

    RS Stock No.:
    125-1470
    Mfr. Part No.:
    1492-SPM2C040
    Brand:
    Allen Bradley
    Allen Bradley
    View all MCBs
    22 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £37.99

    (exc. VAT)

    £45.59

    (inc. VAT)

    UnitsPer unit
    1 +£37.99
    RS Stock No.:
    125-1470
    Mfr. Part No.:
    1492-SPM2C040
    Brand:
    Allen Bradley
    COO (Country of Origin):
    BG

    Legislation and Compliance

    COO (Country of Origin):
    BG

    Product Details

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.


    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.


    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.


    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution


    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant


    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2


    Allen Bradley Miniature Circuit Breaker, Type C, 4A Current Rating - 1492-SPM2C040


    Need reliable short-circuit protection for your equipment? Use this miniature circuit breaker from Rockwell Automation's Allen Bradley range. It uses a thermal-magnetic mechanism to trip the circuit off when its 10kA (kiloamps) breaking capacity is reached. As a type C device, it's normally used for loads where switching surges are high, such as inductive commercial and industrial installations. The indicator window on the unit makes it straightforward to check the unit's state, as it displays red when closed and green when open.


    Features & Benefits


    • Combines with up to six auxiliary elements such as an auxiliary contact, a signal contact or a shunt trip for complex safety setups
    • Mountable in any position for fitting in awkward work areas
    • IP20 (ingress protection) rating indicates a finger-safe switch that protects against electric shocks


    Standards and Certifications


    • CSA (Canadian Standards Association)
    • VDE (Verband der Elektrotechnik)
    • UL (Underwriters' Laboratories)
    • CE (Conformitè Europëenne)


    Is this miniature circuit breaker robust enough to withstand industrial environments?


    Yes, this miniature circuit breaker has an approximate mechanical lifespan of 20,000 for long-lasting use. Screwing it tightly into place will keep the device further protected against impact shocks and industrial vibration that could otherwise lower its durability.



    Allen Bradley MCBs


    Specifications

    AttributeValue
    Number of Poles2P
    Current Rating4A
    Tripping CharacteristicsType C
    Rated AC Voltage277 V, 480V
    Rated DC Voltage96V
    Range1492
    Series1492SPM
    Breaking Capacity at Maximum Voltage Rating10 kA
    Circuit Breaker TypeMCB
    Mounting StyleDIN Rail Mount
    Width75mm
    Length35mm
    Depth88mm
    Reset Actuator TypeToggle Switch
    ApplicationGeneral Purpose
    Terminal Contact TypeScrew
    Break TimeInstantaneous
    Tripping MechanismThermal-Magnetic
