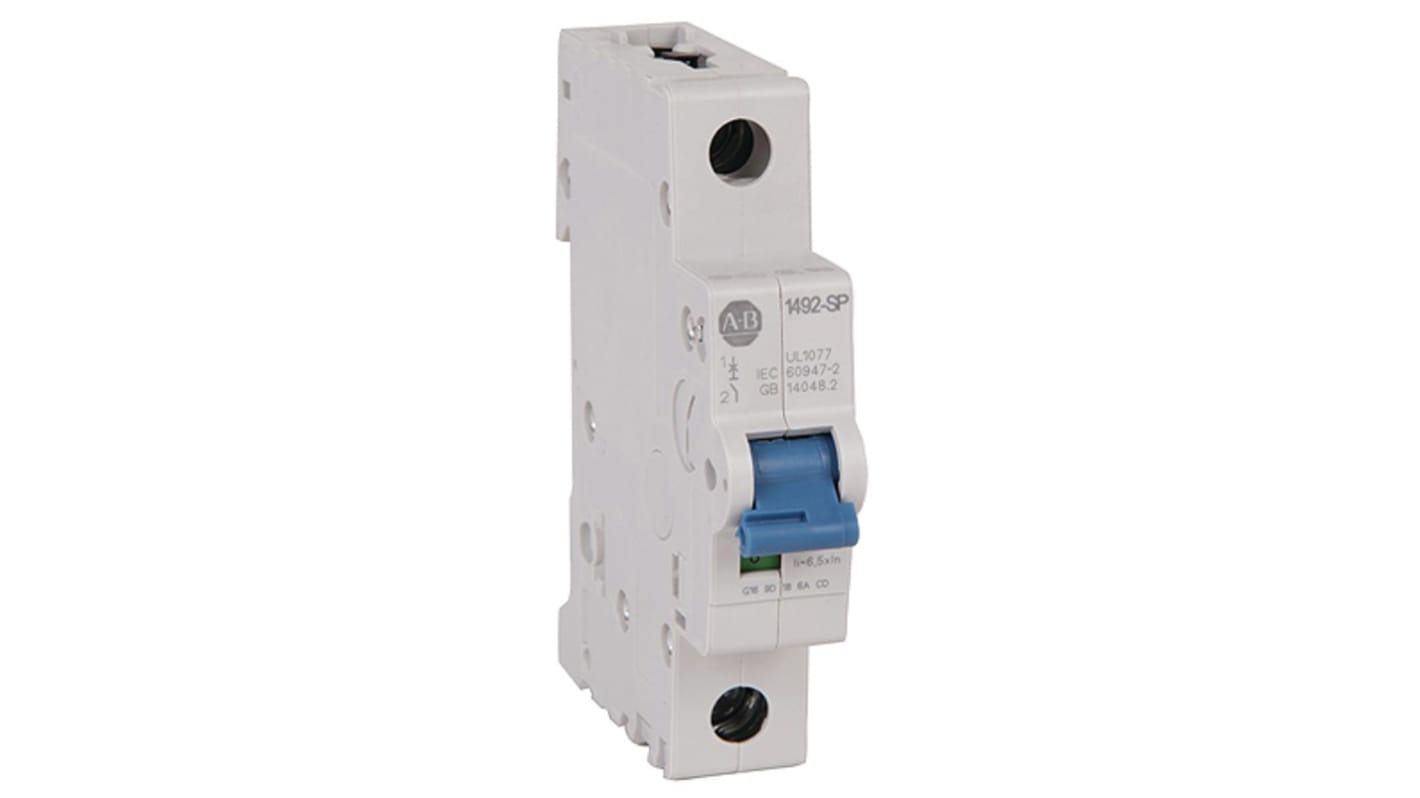

Allen Bradley 1492 1492-SPM MCB, 1P, 32A Curve C, 277V AC, 48V DC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£22.20

(exc. VAT)

£26.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 03 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£22.20

*price indicative

RS Stock No.:
125-1463
Mfr. Part No.:
1492-SPM1C320
Brand:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Number of Poles

1

Current Rating

32A

Tripping Characteristics

Type C

Rated AC Voltage

277V

Rated DC Voltage

48V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

1492

Series

1492-SPM

Circuit Breaker Type

MCB

Width

74mm

Length

17.5mm

Mounting Style

DIN Rail Mount

Depth

88mm

Terminal Contact Type

Screw

Break Time

Instantaneous

Reset Actuator Type

Toggle Switch

Application

General Purpose

Tripping Mechanism

Thermal-Magnetic

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

Features and Benefits:


• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution

Certifications:


UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:


UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Miniature Circuit Breaker, Type C, 32A Current Rating - 1492-SPM1C320


Keep your electrical equipment shielded from short circuits with this miniature circuit breaker from Rockwell Automation's Allen Bradley range. It's a type C design that trips at five to ten times the rated current and is commonly used for highly inductive commercial and industrial installations such as transformers or power generators. For versatility, the device has dual wire terminals that can be connected up either way round. Thanks to an operating temperature range of -40°C and +70°C, you can rely on it in demanding industrial environments.

Features & Benefits


• Thermal magnetic tripping mechanism for high-speed current limiting
• Mountable in any position so you can fit it into busy industrial setups
• Screw terminals keep the device fixed in place and heighten its resistance to nuisance tripping
• Indicator window makes it easy to see the unit's state, appearing red when closed and green when open

Standards and Certifications


• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)
• VDE (Verband der Elektrotechnik)

Where's the best place to mount this miniature circuit breaker?


This miniature circuit breaker is best mounted to a standard DIN rail. It comes with a rear clip, meaning installation is fast and secure.
