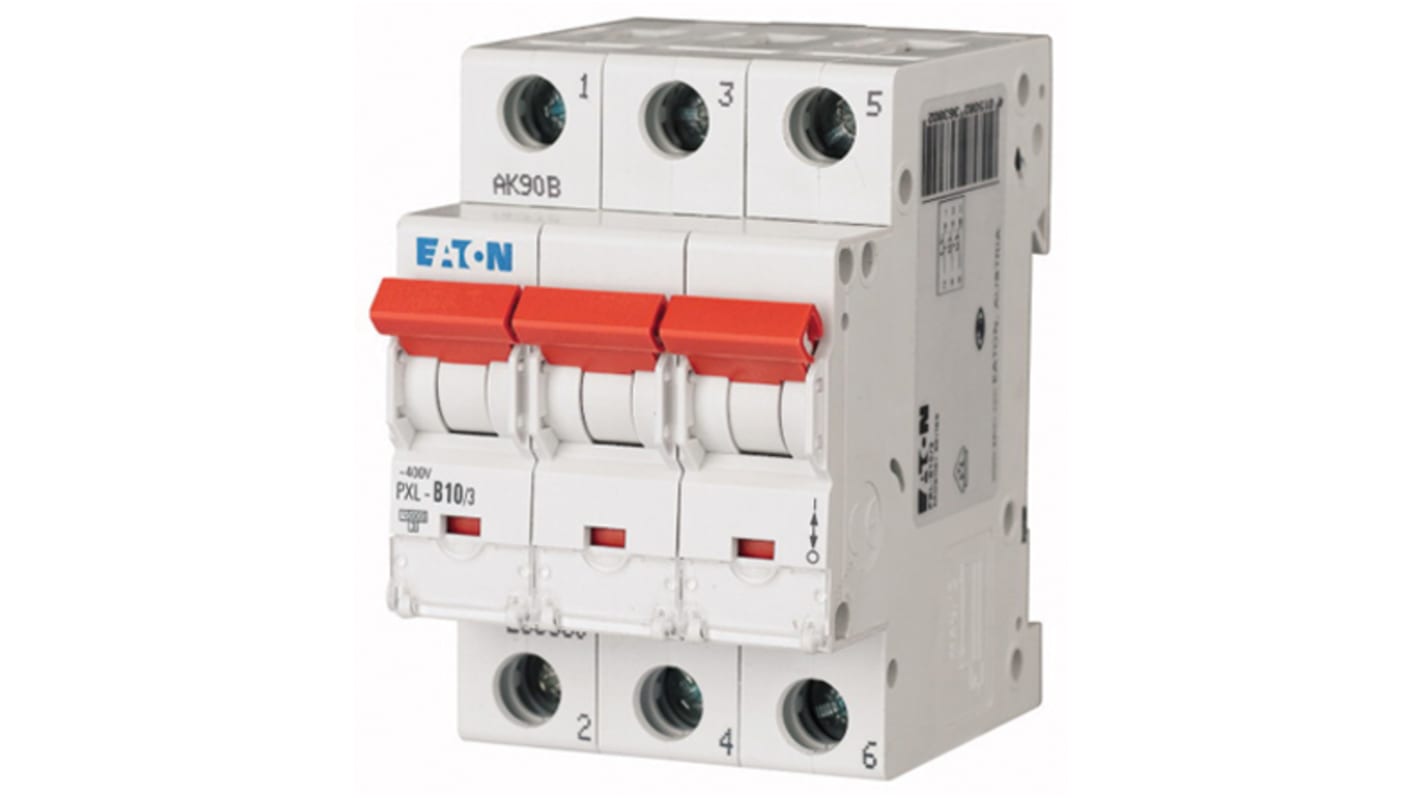

Eaton xPole PXL, S200 MCB, 3P, 10A Curve B, 400V AC, 48V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£47.12

(exc. VAT)

£56.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.12

*price indicative

RS Stock No.:
490-355
Mfr. Part No.:
236380 PXL-B10/3
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

3

Current Rating

10A

Tripping Characteristics

Type B

Rated AC Voltage

400V

Rated DC Voltage

48V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

xPole

Series

PXL, S200

Circuit Breaker Type

MCB

Length

52.5mm

Width

80mm

Mounting Style

DIN Rail Mount

Depth

60mm

RoHS Status: Exempt

COO (Country of Origin):
AT

PXL series, B characteristic, 3-pole


Circuit breaker with high selectivity as a pre-fuse with low passband energy
Bus bar compatible
With double terminal, lift / jaw top and bottom
Free selection of rail arrangement top and bottom
Finger-proof / back-of-hand-proof
Quick-fit action with 3 locking positions for top-hat rail IEC / EN 60715

Standards

IEC / EN 60898

Note

Eaton formerly known as Moeller
