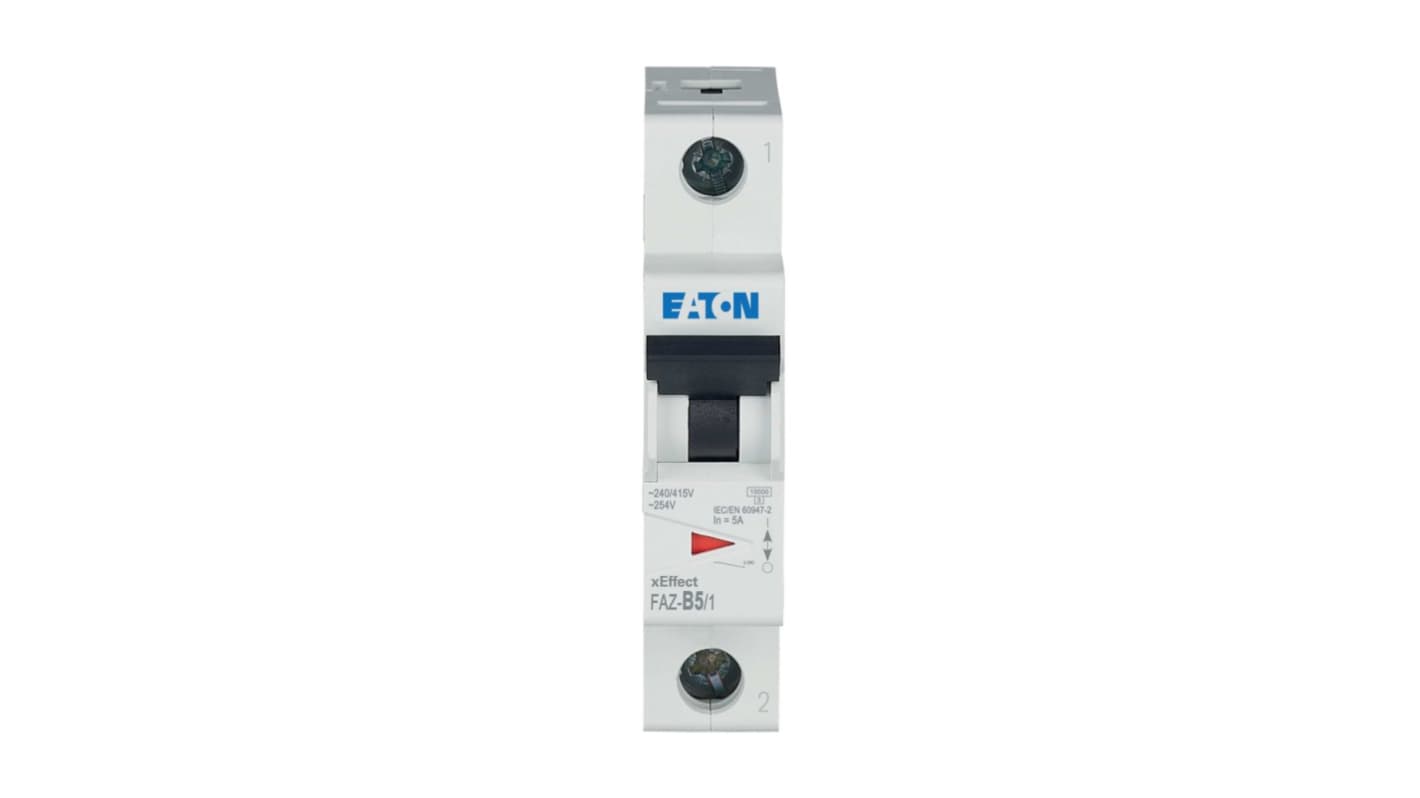

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 5 A, Type B, 230 V ac AC, 48 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-992
- Mfr. Part No.:
- 278528 FAZ-B5/1
- Brand:
- Eaton
Subtotal (1 unit)*
£36.60
(exc. VAT)
£43.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship from another location
- Plus 72 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.60 |
*price indicative
- RS Stock No.:
- 258-992
- Mfr. Part No.:
- 278528 FAZ-B5/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 5 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 48 V | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | CE, CSAC. . 5, CSA (Class . 150), CSA (File . 0445), EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, rth America (UL,CSA ), UL 1077, UL (Category Control Number QVNU,QVNU8), UL CSA09, UL (File . E177451) | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Width | 17.5 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 5 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 48 V | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP40, IP20 | ||
Standards/Approvals CE, CSAC. . 5, CSA (Class . 150), CSA (File . 0445), EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, rth America (UL,CSA ), UL 1077, UL (Category Control Number QVNU,QVNU8), UL CSA09, UL (File . E177451) | ||
Height 75.5mm | ||
Depth 80mm | ||
Width 17.5 mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series xEffect is a compact and robust miniature circuit breaker designed for safeguarding branch circuits. Engineered with dependability in mind, it features a B tripping characteristic, making it ideal for protecting delicate electronic equipment against overloads and short circuits. Its compact dimensions, combined with exceptional performance, cater to modern requirements for safety and efficiency.
Offers an IP20 degree of protection safeguarding internal components
Features twin purpose terminals for ease of wiring and connectivity
Electrical lifespan of 10000 operations ensures longevity and reliability
Incorporates features to meet stringent electromagnetic compatibility requirements
Supports a variety of conductor cross sections for flexible installation
