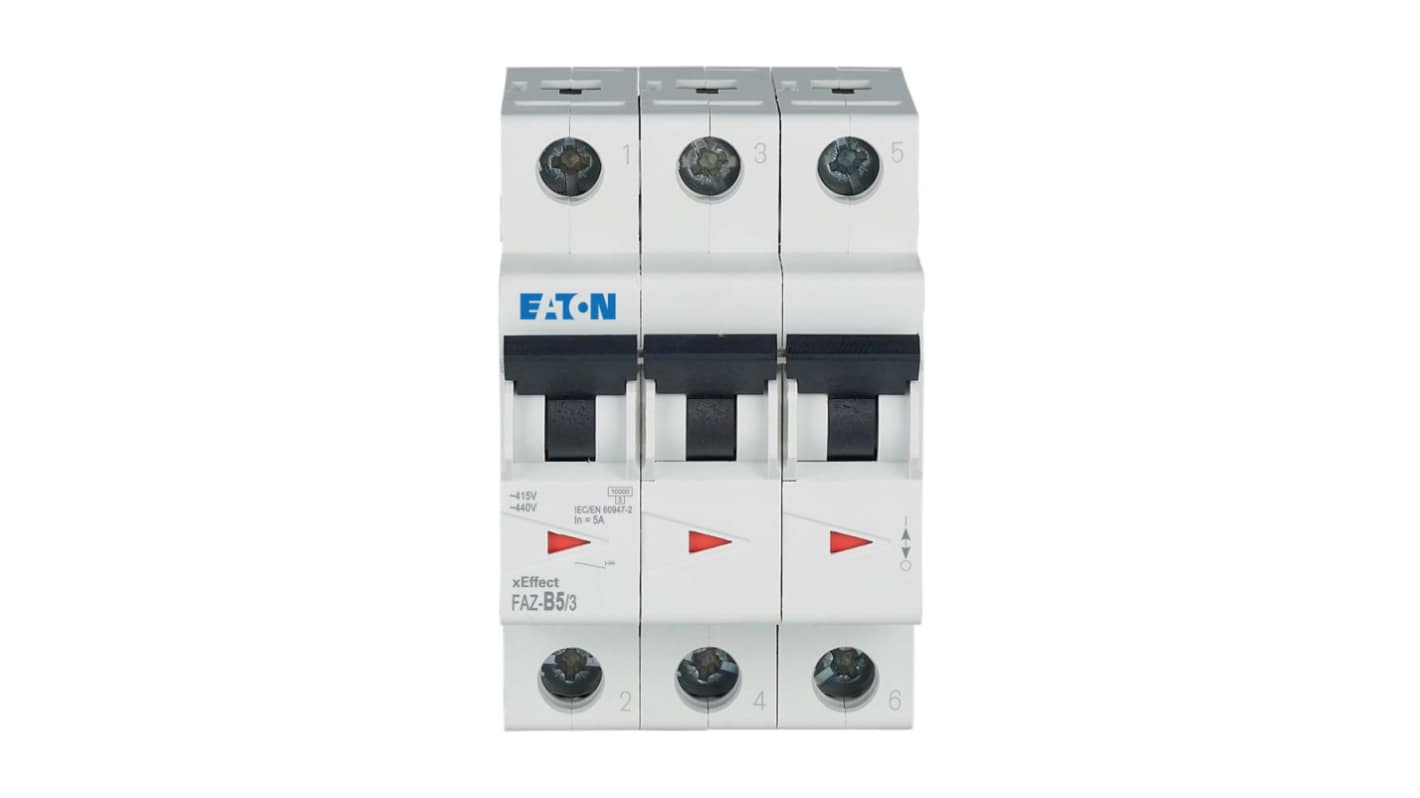

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 5 A, Type B, 400 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-756
- Mfr. Part No.:
- 278840 FAZ-B5/3
- Brand:
- Eaton
Subtotal (1 unit)*
£136.60
(exc. VAT)
£163.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £136.60 |
*price indicative
- RS Stock No.:
- 258-756
- Mfr. Part No.:
- 278840 FAZ-B5/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 5 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Height | 75.5mm | |
| Standards/Approvals | RoHS, UL, CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | |
| Depth | 80mm | |
| Width | 54 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 5 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Height 75.5mm | ||
Standards/Approvals RoHS, UL, CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | ||
Depth 80mm | ||
Width 54 mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series xEffect offers exceptional reliability and performance for various industrial applications. Designed to ensure optimum safety in electrical systems, this three pole device features a B tripping characteristic tailored for loads typically found within branch circuits. Built to meet stringent global standards, the breaker is engineered with user convenience in mind, including easy installation and maintenance.
Compact design allows for efficient use of panel space
Rated operational current ensures dependable performance
Designed to operate reliably across a wide temperature range
Supports multi wired and solid core conductor connections
Offers enhanced protection against mechanical and thermal stresses
Complies with prominent safety standards for global markets
Simplifies configuration with straightforward wiring diagrams
