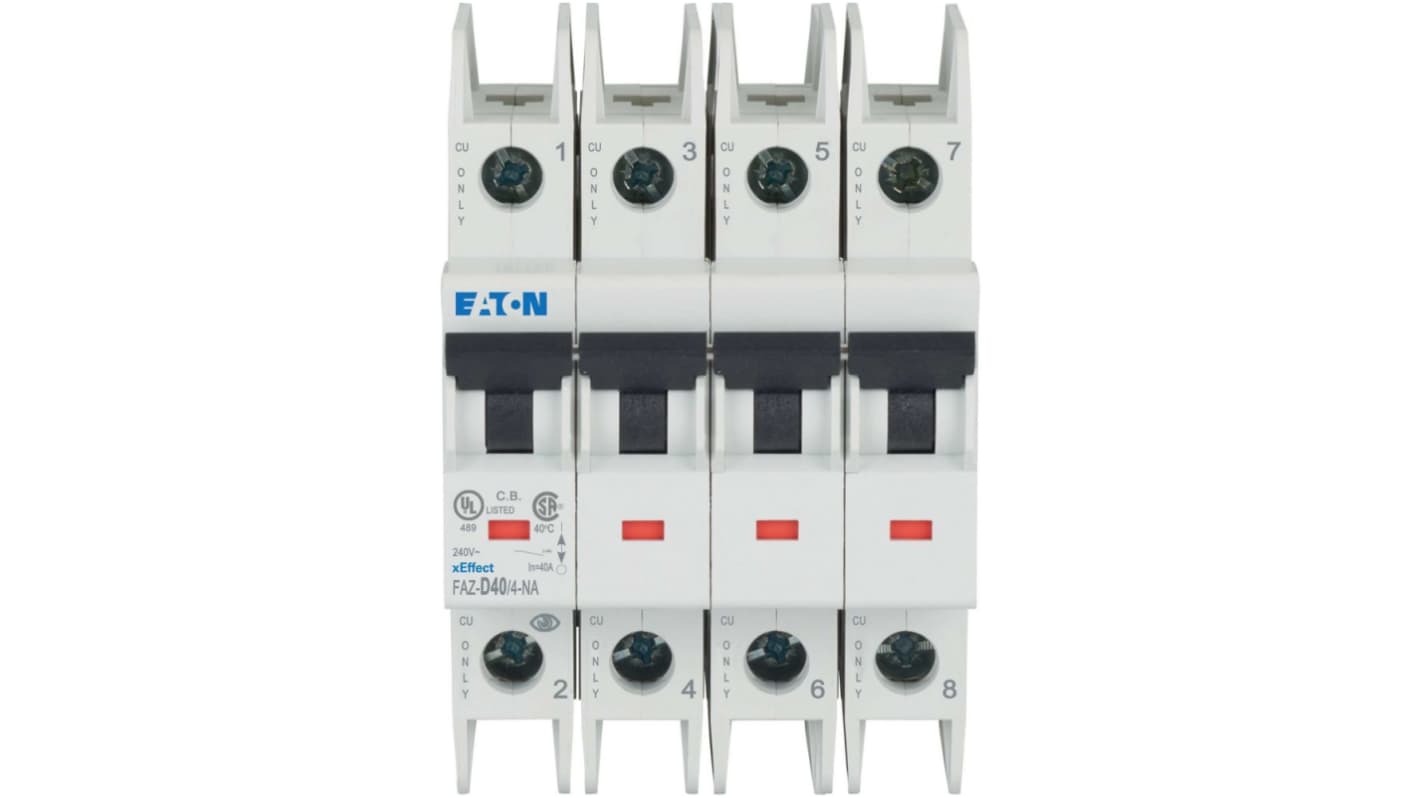

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 40 A, Type D, 240 V ac AC, 60 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 243-000
- Mfr. Part No.:
- 190843 FAZ-D40/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£288.66
(exc. VAT)
£346.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £288.66 |
*price indicative
- RS Stock No.:
- 243-000
- Mfr. Part No.:
- 190843 FAZ-D40/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 40 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 60 V | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20, IP40 | |
| Width | 70.8 mm | |
| Depth | 105mm | |
| Standards/Approvals | EN45545, CSA (Class . 1401), BCPD, CE, IEC 60947, suitable as, UL 489, CSA (File . 0445), UL (Category Control,Number DIVQ), rth America (UL,CSA ), IEC 617, IECEN 60947, CSA C. . 5, rth America, CSAC. . 509, UL (File . E519), Specially designed for, RoHS | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 40 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 60 V | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20, IP40 | ||
Width 70.8 mm | ||
Depth 105mm | ||
Standards/Approvals EN45545, CSA (Class . 1401), BCPD, CE, IEC 60947, suitable as, UL 489, CSA (File . 0445), UL (Category Control,Number DIVQ), rth America (UL,CSA ), IEC 617, IECEN 60947, CSA C. . 5, rth America, CSAC. . 509, UL (File . E519), Specially designed for, RoHS | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is engineered for both industrial and advanced commercial applications, providing reliable protection for electrical circuits in North America. Designed as a four pole device, it boasts robust performance with a tripping characteristic of D, making it suitable for feeder and branch circuits. The product ensures compliance with stringent standards such as IEC/EN 60947 2 and UL 489, highlighting its commitment to safety and efficiency. With a rated operational current of 40 A, this breaker is equipped to handle significant loads while maintaining a compact design that fits seamlessly into modern electrical panels.
Conforms to essential safety standards enhancing user confidence
Designed for modular spacings accommodating diverse installation needs
Exceptional lifespan reduces maintenance frequency and costs
Transformative operational capacity suitable for various environments
Flexible installation options cater to diverse system requirements
Equipped with a contact position indicator for user friendly monitoring
