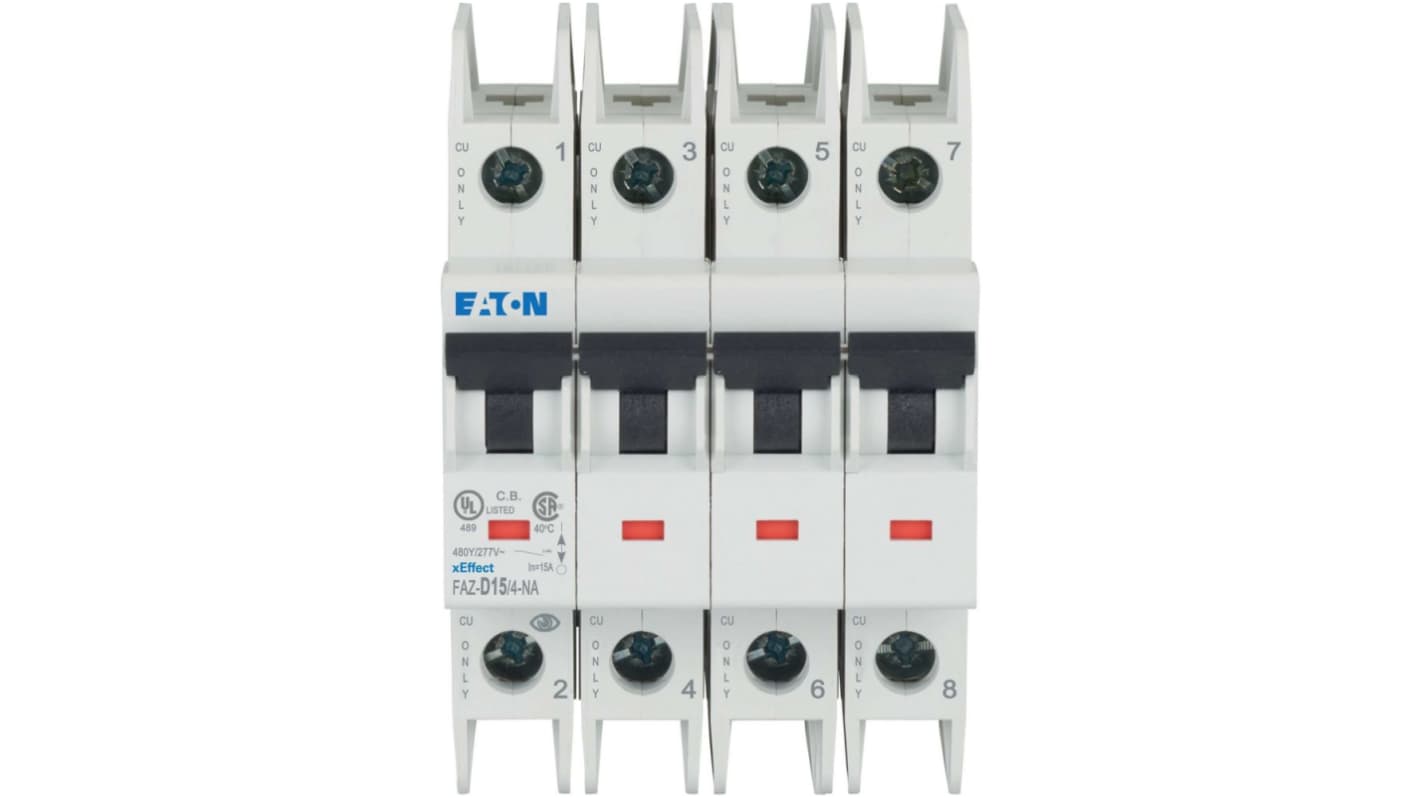

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 15A, Type D, 240V ac AC, 60 V dc DC, 15 kA Breaking Capacity
- RS Stock No.:
- 239-791
- Mfr. Part No.:
- 190836 FAZ-D15/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£278.43
(exc. VAT)
£334.12
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £278.43 |
*price indicative
- RS Stock No.:
- 239-791
- Mfr. Part No.:
- 190836 FAZ-D15/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 15A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240V ac | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP40, IP20 | |
| Width | 70.8mm | |
| Standards/Approvals | UL, CSA C. . 5, rth America (UL,CSA ), EN45545, UL (File . E519), RoHS, CSA (Class . 1401), IEC 617, CSA (File . 0445), IEC 60947, CSAC. . 509, UL 489, IECEN 60947, CE, suitable as BCPD | |
| Depth | 105mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 15A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240V ac | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP40, IP20 | ||
Width 70.8mm | ||
Standards/Approvals UL, CSA C. . 5, rth America (UL,CSA ), EN45545, UL (File . E519), RoHS, CSA (Class . 1401), IEC 617, CSA (File . 0445), IEC 60947, CSAC. . 509, UL 489, IECEN 60947, CE, suitable as BCPD | ||
Depth 105mm | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is expertly engineered for reliability and safety in electrical applications. Designed to offer robust protection across varied voltage ratings, this device expertly combines advanced technology with an easy to use format, ensuring seamless integration into your electrical system. With its compact four pole configuration, it is ideal for managing feeder and branch circuits, providing a pivotal role in safeguarding critical equipment from overloads and short circuits.
Built with a dual terminal capacity for versatile conductor connections
IP40 protection ensuring durability in various environments
Allows for a wide operational temperature range making it suitable for diverse settings
Ensures minimal space consumption with its compact modular design
Equipped with a corrosion resistant finish for prolonged lifespan
