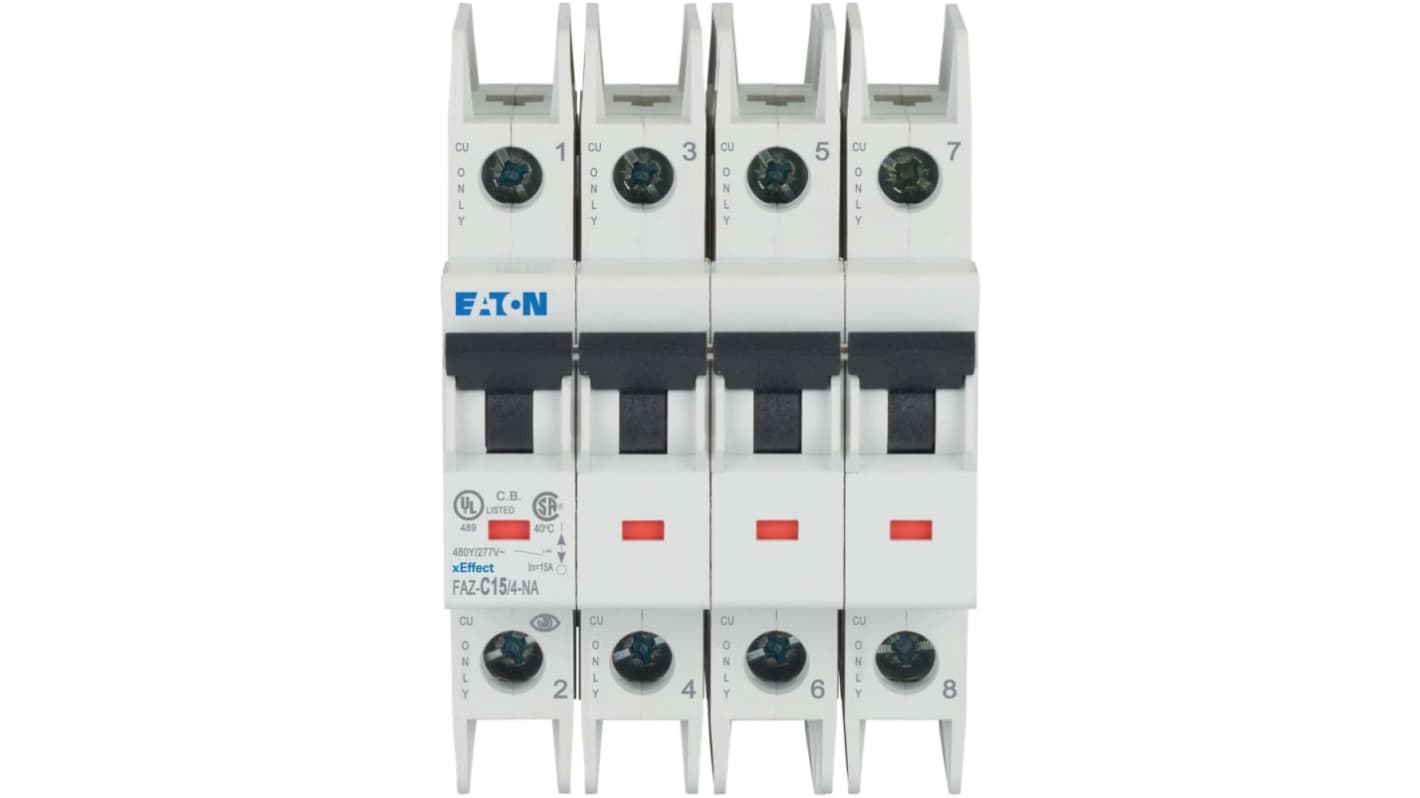

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 15 A, Type C, 240 V ac AC, 60 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 242-996
- Mfr. Part No.:
- 190816 FAZ-C15/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£283.08
(exc. VAT)
£339.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £283.08 |
*price indicative
- RS Stock No.:
- 242-996
- Mfr. Part No.:
- 190816 FAZ-C15/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 15 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 60 V | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP40, IP20 | |
| Width | 70.8 mm | |
| Height | 75.5mm | |
| Standards/Approvals | IEC 60947, CE, Specially designed for, rth America, UL (Category Control,Number DIVQ), rth America (UL,CSA ), UL (File . E519), IECEN 60947, RoHS, CSA C. . 5, IEC 617, CSAC. . 509, CSA (Class . 1401), UL 489, suitable as, EN45545, CSA (File . 0445), BCPD | |
| Depth | 105mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 15 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 60 V | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP40, IP20 | ||
Width 70.8 mm | ||
Height 75.5mm | ||
Standards/Approvals IEC 60947, CE, Specially designed for, rth America, UL (Category Control,Number DIVQ), rth America (UL,CSA ), UL (File . E519), IECEN 60947, RoHS, CSA C. . 5, IEC 617, CSAC. . 509, CSA (Class . 1401), UL 489, suitable as, EN45545, CSA (File . 0445), BCPD | ||
Depth 105mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is meticulously designed for both industrial and advanced commercial applications, ensuring optimal protection for your electrical systems. Built with a four pole configuration, this compact device effectively handles feeder and branch circuits, offering a reliable solution for voltage ratings up to 480Y/277V AC. Its robust RoHS conform construction underscores the commitment to environmental standards, while its versatile mounting options allow for flexible installation.
Accessible terminal connections facilitate straightforward wiring
IP20 protection rating offers reliable safety in various settings
Lifespan of up to 10000 operations ensures extended usage
Compatible with top hat rail mounting for efficient assembly
Enhanced breaking capacity handles sudden surges effectively
Internal resistance minimises energy loss for improved efficiency
