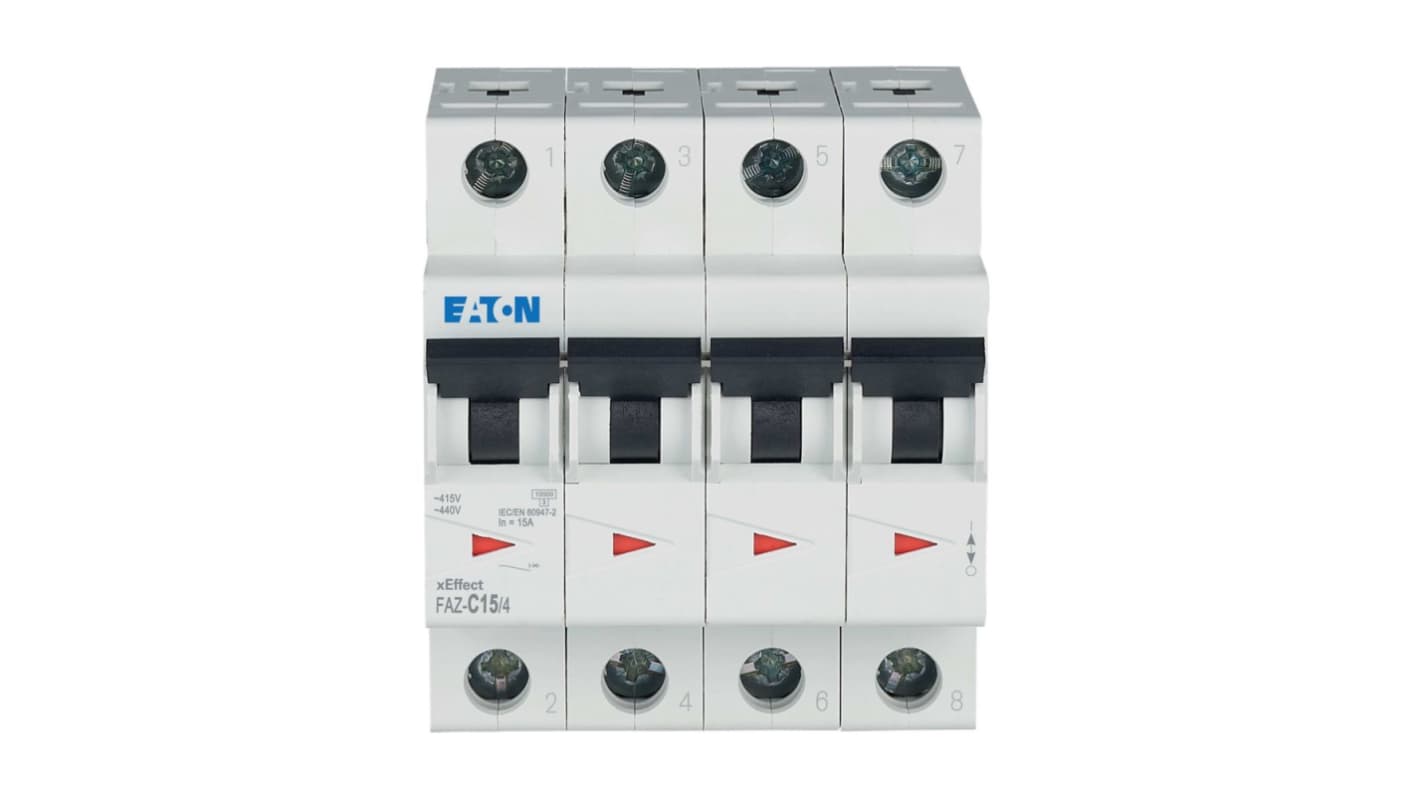

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 15 A, Type C, 400 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-030
- Mfr. Part No.:
- 279060 FAZ-C15/4
- Brand:
- Eaton
Subtotal (1 unit)*
£235.59
(exc. VAT)
£282.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £235.59 |
*price indicative
- RS Stock No.:
- 258-030
- Mfr. Part No.:
- 279060 FAZ-C15/4
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 15 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V ac | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Width | 72 mm | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Standards/Approvals | CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 15 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V ac | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Width 72 mm | ||
Height 75.5mm | ||
Depth 80mm | ||
Standards/Approvals CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is engineered to provide superior protection for electrical circuits. Designed with a tripping characteristic of C and a rated current of 15 A, this four pole device ensures reliable operation in a variety of industrial and advanced commercial applications. With a compact depth of 70.5 mm, it seamlessly integrates into switchgear setups while maintaining exceptional performance standards.
Wide ambient temperature range enhances usability in various conditions
Complies with international safety standards for increased trust
Efficient heat dissipation design contributes to extended product life
Easy installation instructions facilitate quick and safe deployment
Ideal for use in industrial and advanced commercial applications
Integrated electromagnetic compatibility ensures smooth operation
