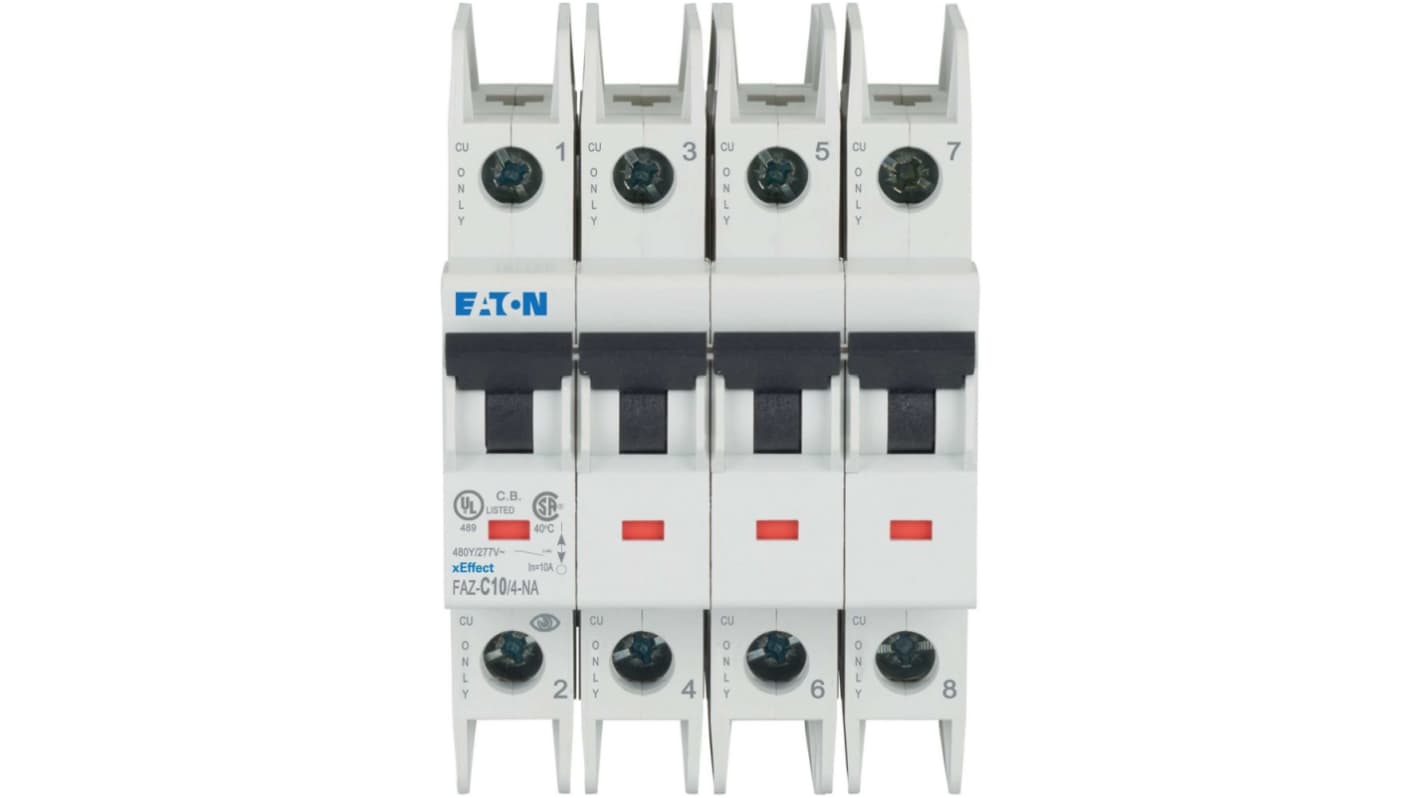

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 10 A, Type C, 240 V ac AC, 60 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 240-887
- Mfr. Part No.:
- 190926 FAZ-C10/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£271.90
(exc. VAT)
£326.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £271.90 |
*price indicative
- RS Stock No.:
- 240-887
- Mfr. Part No.:
- 190926 FAZ-C10/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 10 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 60 V | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | CSAC. . 509, rth America, RoHS, CSA (File . 0445), IECEN 60947, suitable as, UL (File . E519), IEC 617, UL 489, UL (Category Control,Number DIVQ), CSA C. . 5, rth America (UL,CSA ), BCPD, EN45545, Specially designed for, IEC 60947, CE, CSA | |
| Depth | 105mm | |
| Width | 70.8 mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 10 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 60 V | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP40, IP20 | ||
Standards/Approvals CSAC. . 509, rth America, RoHS, CSA (File . 0445), IECEN 60947, suitable as, UL (File . E519), IEC 617, UL 489, UL (Category Control,Number DIVQ), CSA C. . 5, rth America (UL,CSA ), BCPD, EN45545, Specially designed for, IEC 60947, CE, CSA | ||
Depth 105mm | ||
Width 70.8 mm | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series exemplifies reliability and innovation in electrical protection. Engineered to meet the rigorous demands of industrial and advanced commercial applications, this four pole device ensures robust performance under varied conditions. Its compliance with multiple international standards and certifications underscores its suitability for North American environments, ensuring safety and efficiency.
Designed for high operational efficiency in commercial settings
Rated for both AC and DC usage enhancing versatility
Built to withstand varying ambient temperatures ensuring durability
Each unit features an IP20 degree of protection for added reliability
Incorporates a clear contact position indicator for visibility
Can accommodate a diverse range of conductor cross sections
Satisfies stringent compliance with RoHS and other international standards
