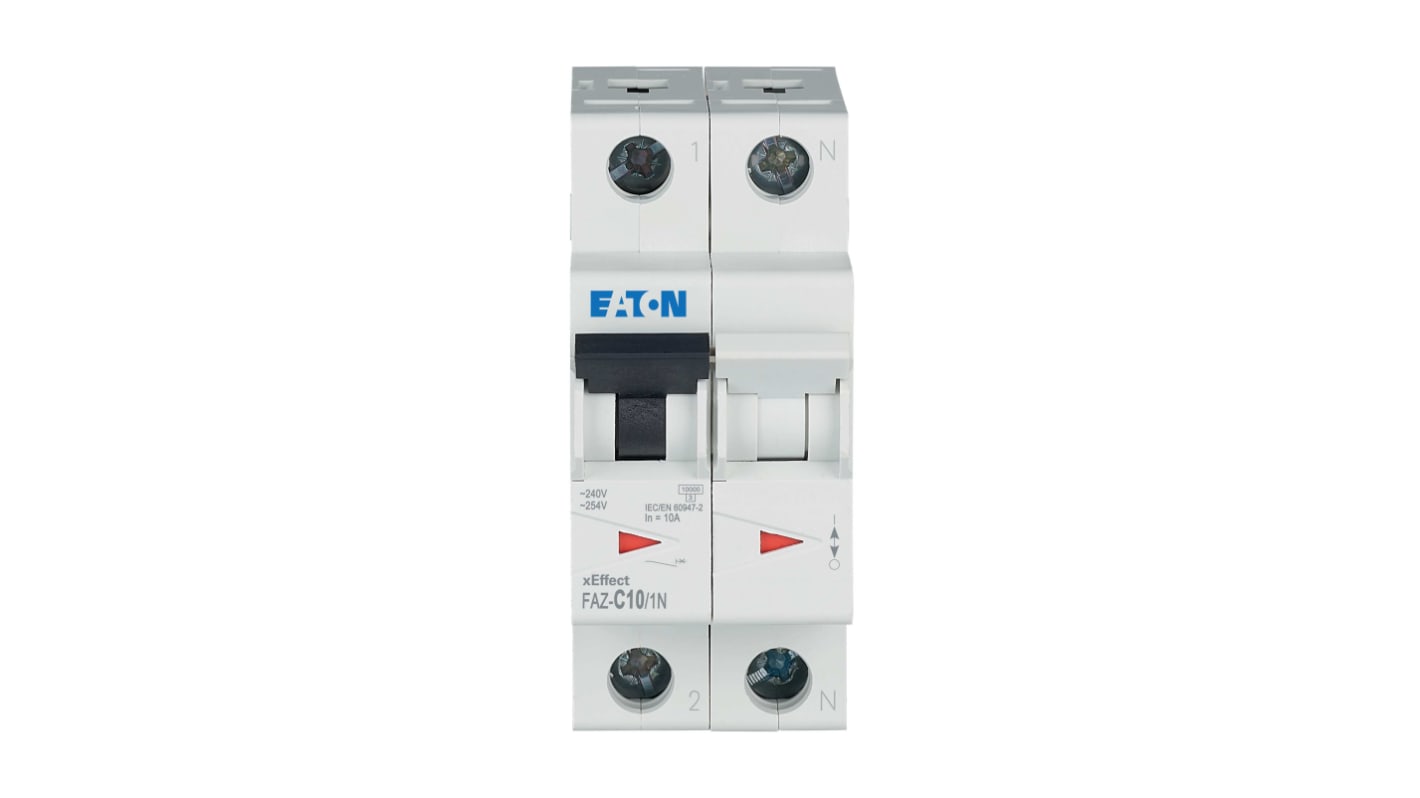

Eaton xEffect MCB, 1+N, 10A Curve C, 240V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-7087
- Mfr. Part No.:
- 278670 FAZ-C10/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£58.64
(exc. VAT)
£70.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10 unit(s) shipping from 01 October 2025
- Plus 10 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.64 |
*price indicative
- RS Stock No.:
- 922-7087
- Mfr. Part No.:
- 278670 FAZ-C10/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1+N | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240V | |
| Rated DC Voltage | 48V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Length | 17.8mm | |
| Width | 66mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 80mm | |
| Tripping Mechanism | Thermal-Magnetic | |
| Terminal Contact Type | Screw | |
| Reset Actuator Type | Toggle Switch | |
| Break Time | Instantaneous | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1+N | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 17.8mm | ||
Width 66mm | ||
Mounting Style DIN Rail Mount | ||
Depth 80mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- RO
Eaton MCB, 7.5kA Operational Switching Capacity, 17.5mm Mounting Width - FAZ Series - 278670 FAZ-C10/1N
Looking to boost your electrical safety? Choose this 1P+N MCB from Eaton to rein in dangerous currents and trip power supplies when faults are detected. This protects equipment against damage and reduces the irritation of downtime. It also makes your environment safer by guarding users against electric shocks. When there's a problem, the device breaks feed paths even if impatient fingers try to keep it in the ON position. With a narrow mounting width per pole of 17.5mm, it's easy to squeeze this compact unit onto crowded panels. Use it for small motors and fluorescent lighting.
Features & Benefits
• DIN rail mounting makes installation quick and easy
• Carries an IP40 rating when fitted to protect against tools and wires greater than 1mm
• IEC/EN 60947-2 approval assures you of a safe unit
• Carries an IP40 rating when fitted to protect against tools and wires greater than 1mm
• IEC/EN 60947-2 approval assures you of a safe unit
What's the reason for the neutral pole on this MCB?
It carries the circuit back to the power sources to ground it. This improves current circulation and optimisation.
What's the tripping characteristic of this MCB?
It has a type-C tripping curve, meaning it cuts power when it receives 5 to 10 times its 10A current rating.
Note
Eaton formerly known as Moeller
