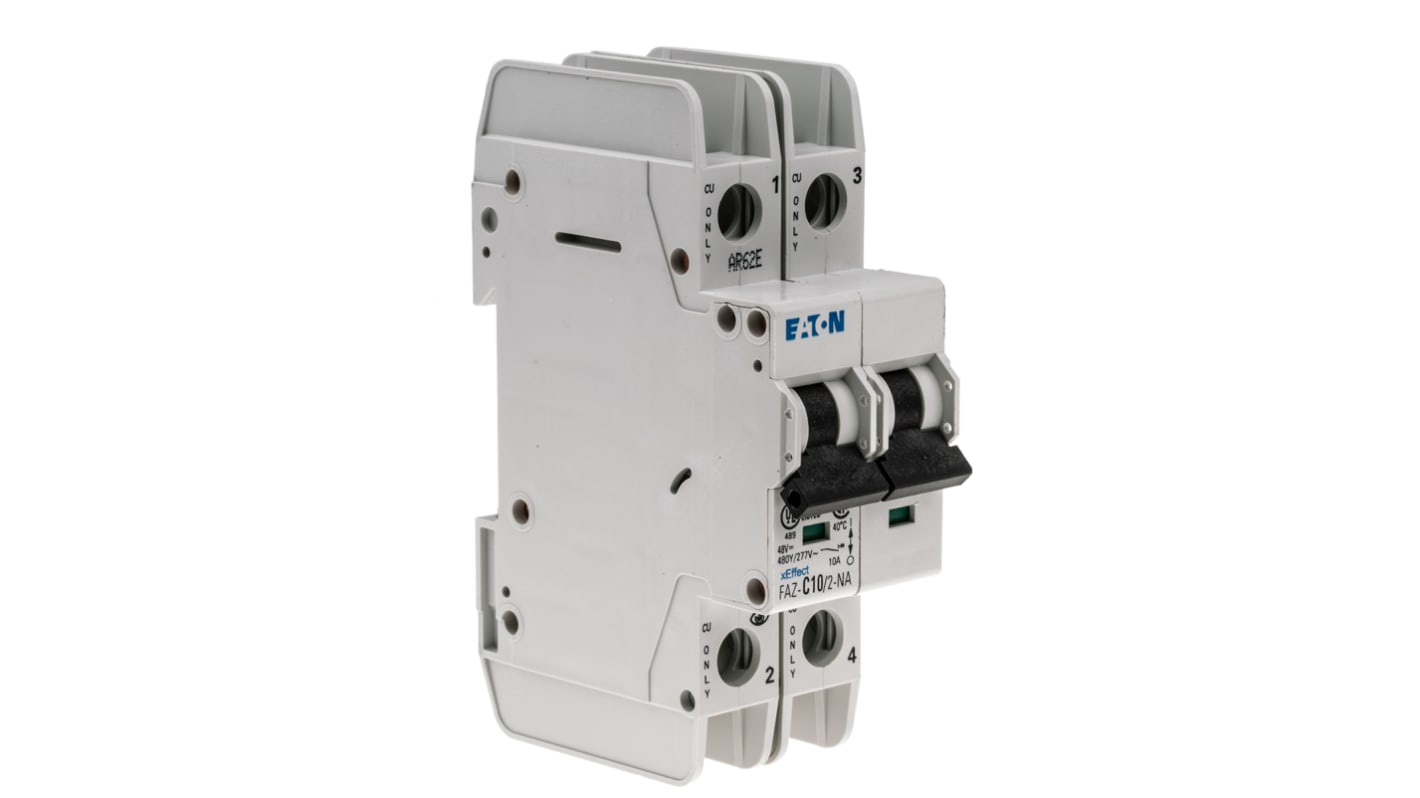

Eaton xEffect MCB, 2P, 10A Curve C, 240 → 415V AC, 60V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3245
- Distrelec Article No.:
- 304-02-372
- Mfr. Part No.:
- 102167 FAZ-C10/2-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£83.52
(exc. VAT)
£100.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 3 unit(s) shipping from 20 October 2025
- Plus 6 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.52 |
*price indicative
- RS Stock No.:
- 847-3245
- Distrelec Article No.:
- 304-02-372
- Mfr. Part No.:
- 102167 FAZ-C10/2-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 2 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 → 415V | |
| Rated DC Voltage | 60V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Width | 105mm | |
| Length | 35.4mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 76mm | |
| Tripping Mechanism | Thermal-Magnetic | |
| Terminal Contact Type | Screw | |
| Reset Actuator Type | Toggle Switch | |
| Break Time | Instantaneous | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 2 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 105mm | ||
Length 35.4mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- RO
Eaton MCB, Instantaneous Breaking Type, 3.6W Maximum Heat Loss - FAZ Series - 102167 FAZ-C10/2-NA
Stop pesky power issues in their tracks with this MCB from Eaton. Its type-C tripping characteristic indicates that it breaks when it receives loads five to ten times its 10A rating to pull the plug on damaging overcurrent. As the breaker trips instantaneously, it cuts off power faults before they can cause damage. You don't need to worry about electrical spikes, as it shuts down surges up to 10kA. Monitoring linked circuits is no trouble thanks to the two-pole format. MCBs like this protect workshop equipment and automotive manufacturing systems.
Features & Benefits
• Slim dimensions of 35.4 (W) x 75.5 (H) x 105mm (D) to slot easily into a busy setup
• Front-mounted toggles for quick resetting
• Labelled terminals help you line up wiring easily
• Service life of at least 20,000 electrical operations to reliably stop faults over a long lifespan
• Trip indicators clearly show circuit status for speedy spot-checks
• Front-mounted toggles for quick resetting
• Labelled terminals help you line up wiring easily
• Service life of at least 20,000 electrical operations to reliably stop faults over a long lifespan
• Trip indicators clearly show circuit status for speedy spot-checks
Do I need any special tools to install this unit?
No, this MCB clips onto a DIN rail and has screw terminals, so there's no need to break out special tools during installation.
Note
Eaton formerly known as Moeller
