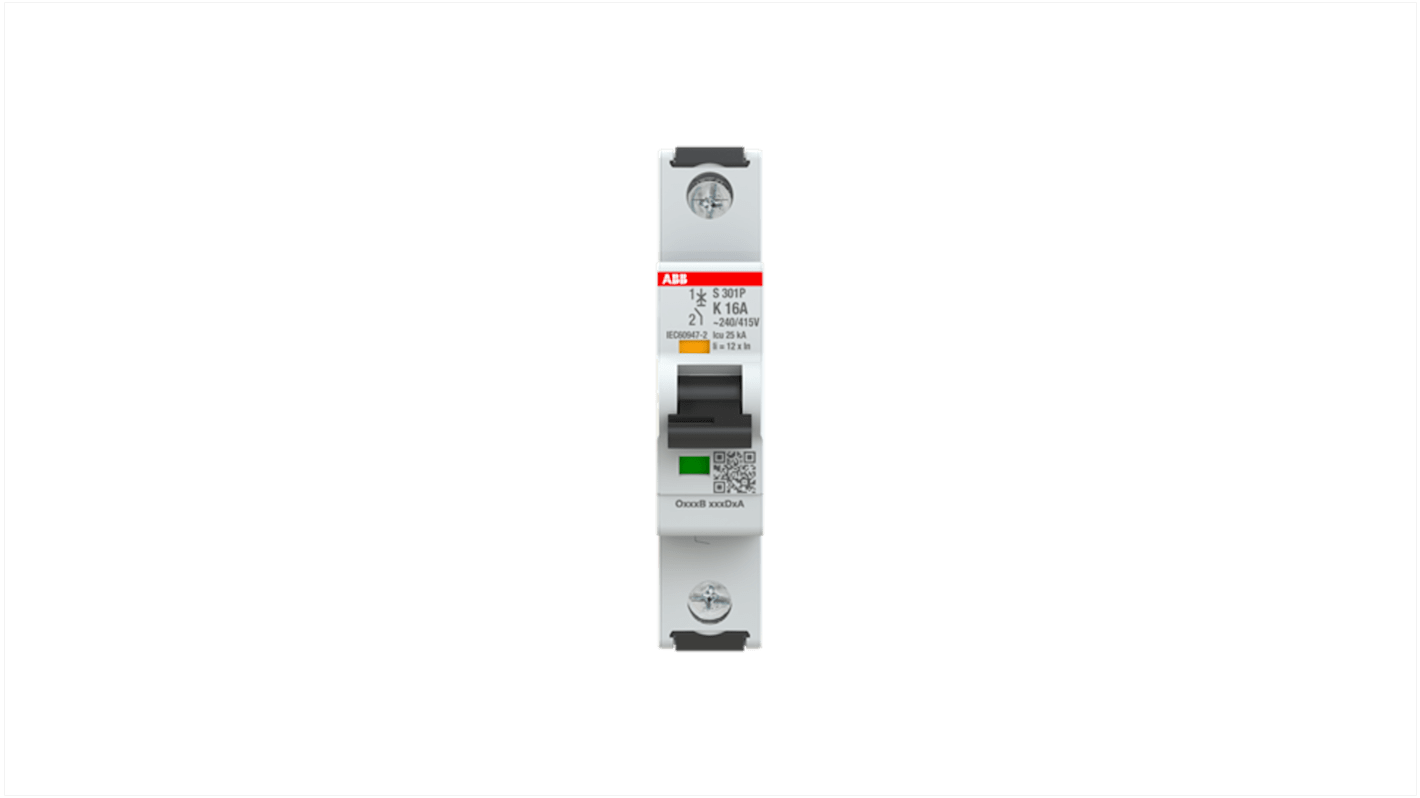

ABB S301 MCB, 1P, 16A Curve K, 415V AC, 125V DC, 25 kA Breaking Capacity

View all MCBs
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
201-298
Mfr. Part No.:
2CDS381001R0467
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Current Rating

16A

Tripping Characteristics

Type K

Rated AC Voltage

415V

Rated DC Voltage

125V

Breaking Capacity at Maximum Voltage Rating

25 kA

Series

S301

Circuit Breaker Type

MCB

Length

67.6mm

Width

17.5mm

Mounting Style

DIN Rail

Depth

67.6mm

Model Number

S301P-K16

Terminal Contact Type

Screw

COO (Country of Origin):
DE

ABB S301 Series MCB, 16A Current Rating, 1 Pole - 2CDS381001R0467


This MCB is a compact 1 pole circuit breaker designed for electrical circuit protection in commercial and industrial applications. With dimensions of 88mm x 69mm x 17.5mm, it features a current rating of 16A and is engineered to fit standard DIN rails. The circuit breaker is built to comply with international standards, ensuring both reliability and safety in electrical systems.

Features & Benefits


• 25kA breaking capacity supports high-demand circuits
• Type K MCB offers enhanced sensitivity for protection
• Screw terminal contact for easy and secure connections
• Dual DIN rail mounting allows seamless installation
• Electrical endurance of up to 20,000 operations for longevity
• Compact design facilitates space-efficient installations

Applications


• Used for protecting electrical installations in commercial settings
• Ideal for industrial machinery requiring stringent current protection
• Implements electrical circuit protection in automation systems
• Suited for use in residential settings needing reinforced safety
• Effective in preventing overloads in mechanical equipment setups

What is the significance of the 25kA breaking capacity in a circuit breaker?


The 25kA breaking capacity indicates the circuit breaker's ability to safely interrupt fault currents without damage, ensuring critical electrical systems can withstand short-circuit events.

How does the Type K characteristic benefit specific applications?


The Type K characteristic provides improved tripping at moderate overloads, making it beneficial in environments where equipment may experience fluctuating currents without causing nuisance tripping.

What are the advantages of screw terminal contacts over other types?


Screw terminal contacts offer a secure and stable connection, reducing the likelihood of accidental disconnection under load, which is crucial in maintaining system integrity.
