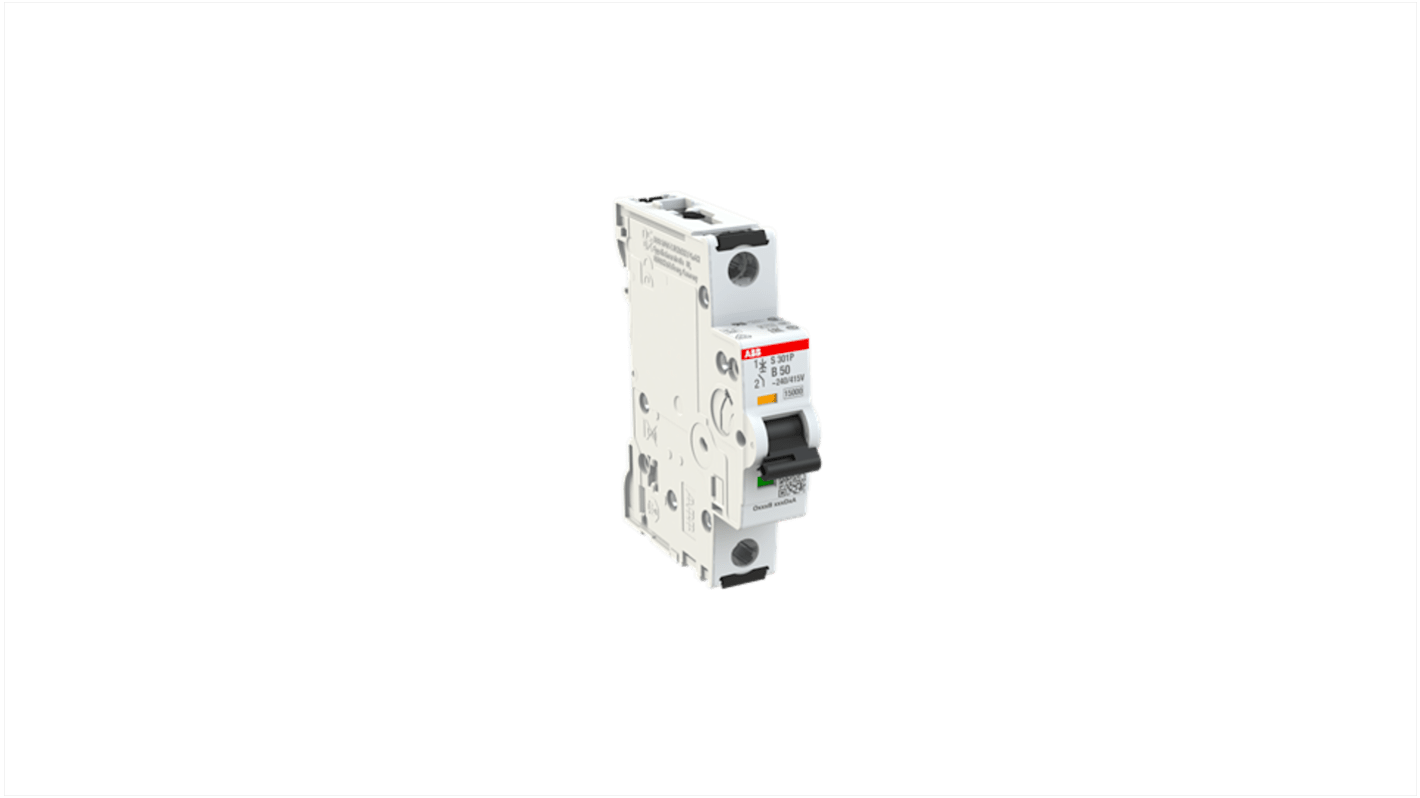

ABB S301 MCB, 1P, 50A Curve B, 415V AC, 125V DC, 25 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£47.96

(exc. VAT)

£57.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.96

*price indicative

RS Stock No.:
201-300
Mfr. Part No.:
2CDS381001R0505
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Current Rating

50A

Tripping Characteristics

Type B

Rated AC Voltage

415V

Rated DC Voltage

125V

Breaking Capacity at Maximum Voltage Rating

25 kA

Series

S301

Circuit Breaker Type

MCB

Width

17.5mm

Length

67.6mm

Mounting Style

DIN Rail

Depth

67.6mm

Model Number

S301P-B50

Terminal Contact Type

Screw

COO (Country of Origin):
DE

ABB S301 Series MCB, 50A Current Rating, Type B Tripping Characteristics - 2CDS381001R0505


This MCB is a 1 Pole circuit breaker designed for efficient electrical protection in commercial and industrial installations. With a current rating of 50A, this device has a tripping characteristic of Type B and operates effectively at a rated AC voltage of 415V and a DC voltage of 125V. Measuring 17.5mm in width and 67.6mm in length, the MCB is suitable for DIN rail mounting, ensuring seamless integration into electrical systems.

Features & Benefits


• Supports a breaking capacity of 25kA for reliable protection
• Designed for quick installation with dual DIN rail release
• Equipped with screw terminals for secure connections
• Compliant with international standards for quality assurance
• Provides clear trip indication for easy monitoring
• Versatile design accommodates top or bottom cable feeding

Applications


• Used with automation systems requiring circuit protection
• Suitable for electrical installations in commercial settings
• Ideal for protecting machinery from overload and short-circuits
• Employed in control panels for robust electrical systems
• Suitable for use in industrial environments with high electrical loads

What electrical standards does this circuit breaker comply with?


The circuit breaker adheres to IEC/EN 60947-2, IEC/EN 60898-1, UL 1077, and CSA 22.2 No. 235, ensuring it meets global safety and performance standards.

How does this product enhance system safety during operation?


It features a breaking capacity of 25kA, effectively safeguarding against potential short-circuits and overloads, significantly improving overall system resilience.

What is the operational voltage range for this device?


It operates at a rated AC voltage of 415V and a DC voltage of 125V, making it versatile for various applications in industrial and commercial environments.

What installation methods are supported by this MCB?


The product can be easily mounted on DIN rail, allowing for flexible installation options and accommodating both top and bottom cable connections.
