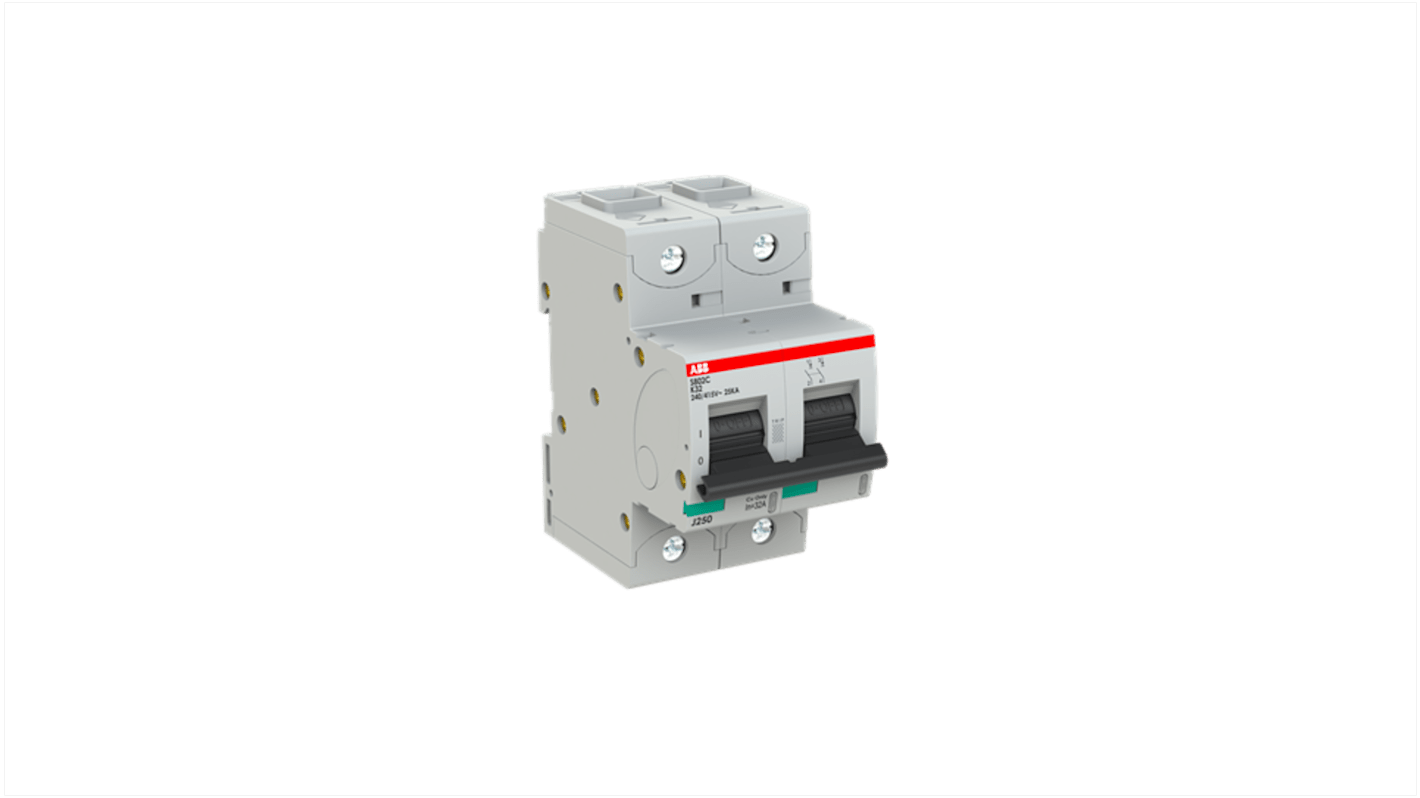

ABB S802C Miniature Circuit Breaker, 2-Pole, 32A, Type K, 415V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-958
- Mfr. Part No.:
- 2CCS882001R0537
- Brand:
- ABB
Subtotal (1 unit)*
£78.95
(exc. VAT)
£94.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.95 |
*price indicative
- RS Stock No.:
- 140-958
- Mfr. Part No.:
- 2CCS882001R0537
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 32A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 415V ac | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Series | S802C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP40 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 95mm | |
| Depth | 82.5mm | |
| Width | 54mm | |
| Tripping Mechanism | Anaerobic Adhesive, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 32A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 415V ac | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Series S802C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP40 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 95mm | ||
Depth 82.5mm | ||
Width 54mm | ||
Tripping Mechanism Anaerobic Adhesive, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high-performance MCB is a 2-pole circuit breaker with a K-Characteristic, ideal for residential, commercial, and industrial use. With a maximum breaking capacity of 25kA at 240/415V, it offers both overload and short circuit protection. Compliant with IEC/EN standards, it ensures the safety and security of your electrical applications.
2-pole High Performance Circuit breaker with K-Characteristic
Rated current of 32 A and maximum breaking capacity of 25kA at 240 or 415 V
Thermal tripping mechanism for overload protection and electromechanic tripping mechanism for short circuit protection
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
Suitable for use in residential commercial and industrial applications
