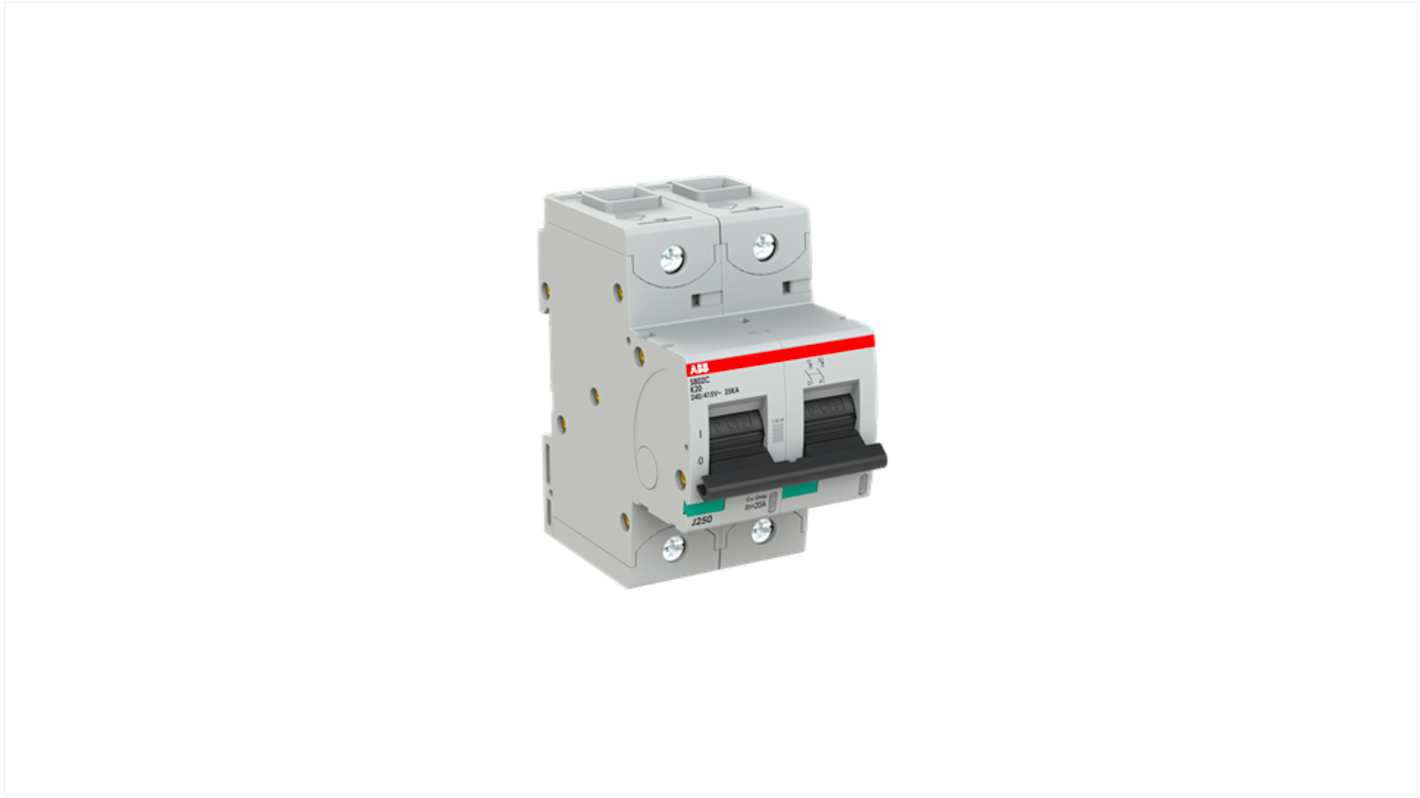

ABB S802C Miniature Circuit Breaker, 2-Pole, 20 A, Type K, 415 V ac AC, 440 V dc DC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-531
- Mfr. Part No.:
- 2CCS882001R0487
- Brand:
- ABB
Subtotal (1 unit)*
£103.47
(exc. VAT)
£124.16
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.47 |
*price indicative
- RS Stock No.:
- 140-531
- Mfr. Part No.:
- 2CCS882001R0487
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 20 A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 415 V ac | |
| Rated DC Voltage | 440 V dc | |
| Breaking Capacity | 25kA | |
| Series | S802C | |
| Terminal Type | Cage Type | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60947-2, UL 1077, IEC/EN 60898-1 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Width | 54 mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 20 A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 415 V ac | ||
Rated DC Voltage 440 V dc | ||
Breaking Capacity 25kA | ||
Series S802C | ||
Terminal Type Cage Type | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60947-2, UL 1077, IEC/EN 60898-1 | ||
Depth 82.5mm | ||
Height 95mm | ||
Width 54 mm | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 2-pole circuit breaker with K-Characteristic, suitable for various applications. It offers excellent current limiting capabilities, with a maximum breaking capacity of 25kA at 240/415V. The device is compliant with international standards like IEC/EN 60898-1 and IEC/EN 60947-2, making it suitable for residential, commercial, and industrial use.
Cage terminal design for easy installation
Thermal tripping mechanism for overload protection
Electromechanic tripping mechanism for short circuit protection
Fast arc extinction for increased safety
Extensive range of accessories available for added convenience
RoHS compliant for environmental safety
