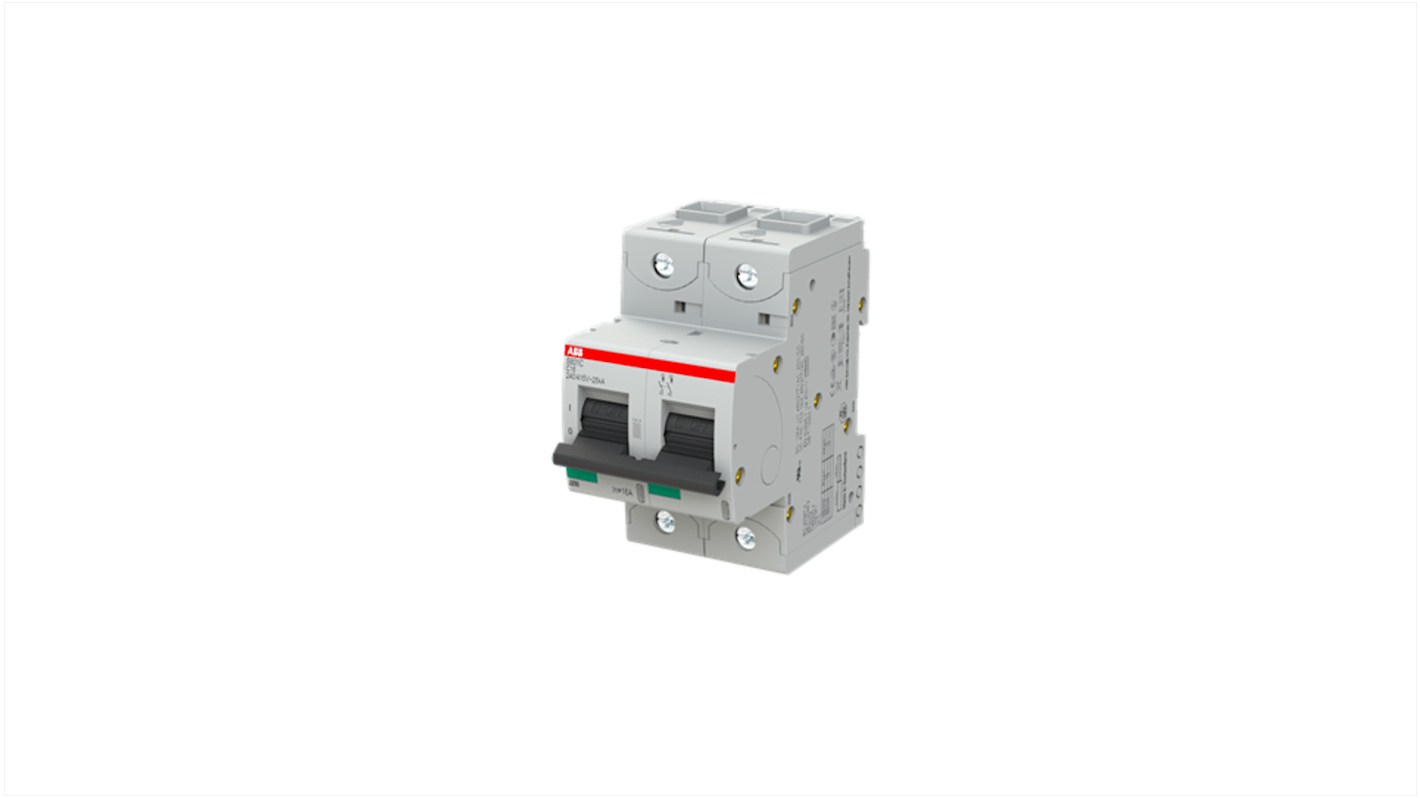

ABB S802C Miniature Circuit Breaker, 2-Pole, 16A, Type C, 415V ac AC, 440 V dc DC, 25 kA Breaking Capacity
- RS Stock No.:
- 141-048
- Mfr. Part No.:
- 2CCS882001R0164
- Brand:
- ABB
Subtotal (1 unit)*
£101.51
(exc. VAT)
£121.81
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £101.51 |
*price indicative
- RS Stock No.:
- 141-048
- Mfr. Part No.:
- 2CCS882001R0164
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 16A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 415V ac | |
| Rated DC Voltage | 440V dc | |
| Breaking Capacity | 25kA | |
| Series | S802C | |
| Terminal Type | Cage Clamp | |
| IP Rating | IP20 | |
| Depth | 82.5mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | |
| Width | 54mm | |
| Height | 95mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 415V ac | ||
Rated DC Voltage 440V dc | ||
Breaking Capacity 25kA | ||
Series S802C | ||
Terminal Type Cage Clamp | ||
IP Rating IP20 | ||
Depth 82.5mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | ||
Width 54mm | ||
Height 95mm | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 2-pole circuit breaker with a C-characteristic, featuring a rated current of 16 A and a maximum breaking capacity of 25kA at 240/415V. It is suitable for residential, commercial, and industrial applications, complying with IEC/EN standards for overload and short circuit protection. With a wide range of accessories available and fast arc extinction, MCB ensures the safety and security of your application.
2-pole High Performance Circuit breaker with C-characteristic
Rated current of 16 A and maximum breaking capacity of 25kA at 240 or 415 V
Compliance with IEC/EN standards for overload and short circuit protection
Suitable for residential commercial and industrial applications
Fast arc extinction for enhanced application security
