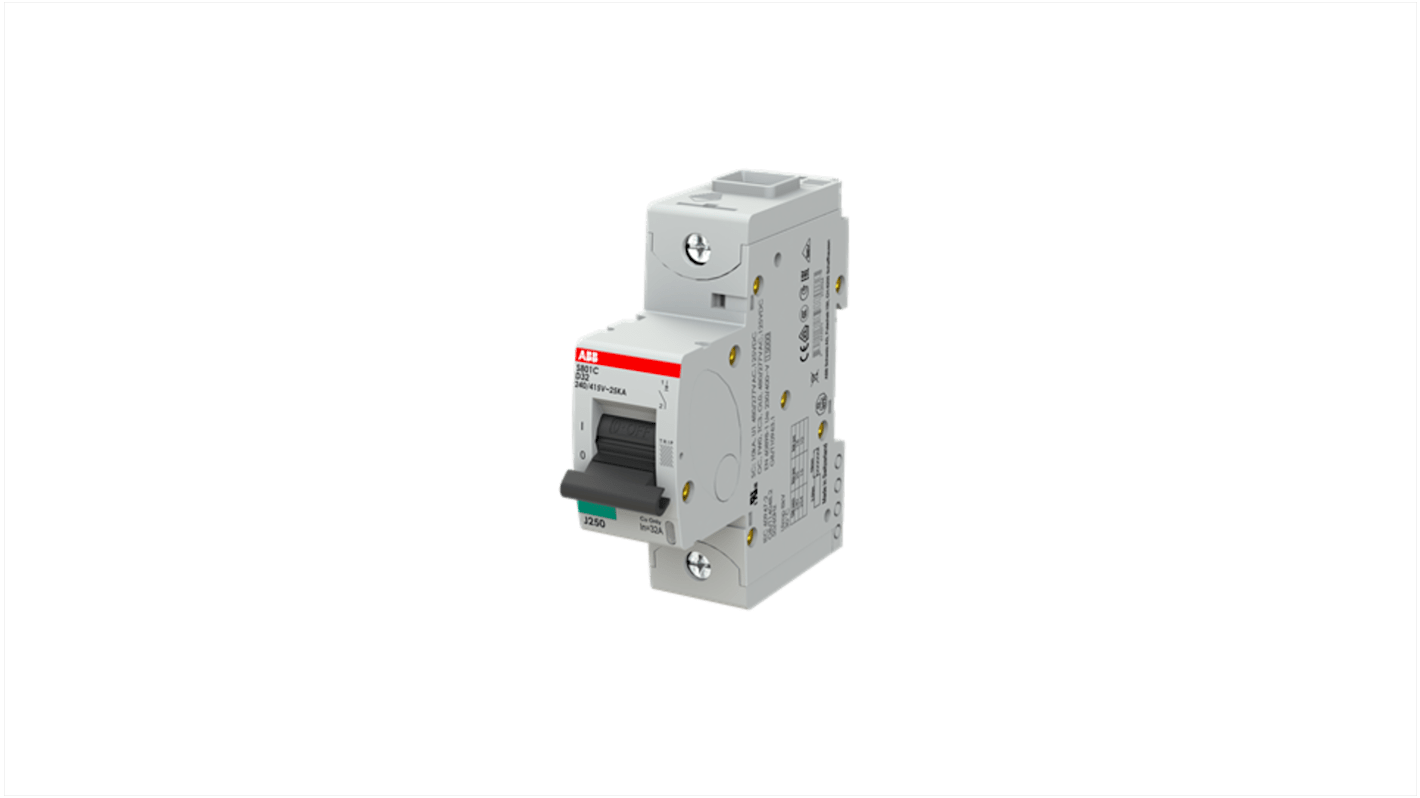

ABB S801C Miniature Circuit Breaker, 1-Pole, 32A, Type D, 400V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-800
- Mfr. Part No.:
- 2CCS881001R0321
- Brand:
- ABB
Subtotal (1 unit)*
£42.67
(exc. VAT)
£51.20
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.67 |
*price indicative
- RS Stock No.:
- 140-800
- Mfr. Part No.:
- 2CCS881001R0321
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 32A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Series | S801C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP20 | |
| Width | 27mm | |
| Standards/Approvals | IEC/EN | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 32A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Series S801C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP20 | ||
Width 27mm | ||
Standards/Approvals IEC/EN | ||
Depth 82.5mm | ||
Height 95mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high performance Miniature Circuit Breaker is a reliable current limiting device suitable for residential, commercial, and industrial applications. With a D-characteristic tripping mechanism, it offers overload and short circuit protection. Complying with international standards, this MCB has a maximum breaking capacity of 25kA at 240/415V, making it a secure choice for various settings.
Thermal and electromechanical tripping mechanisms for protection
Compliant with IEC/EN standards for safety and reliability
Maximum breaking capacity of 25kA at 240 or 415 V
Suitable for voltages up to 254/440V and DC applications
Extensive range of accessories available for added convenience
