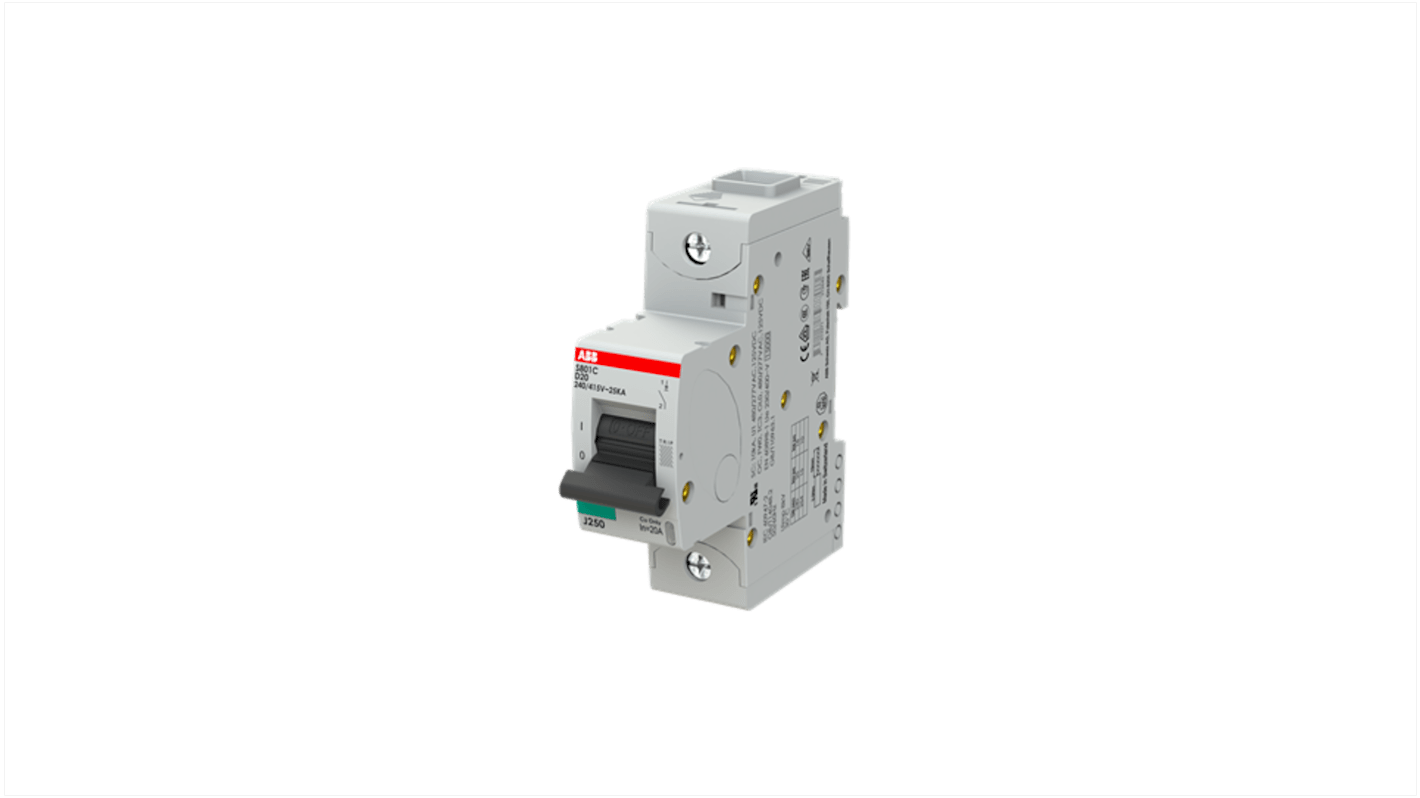

ABB S801C Miniature Circuit Breaker, 1-Pole, 20A, Type D, 400V ac AC, 125 V dc DC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-838
- Mfr. Part No.:
- 2CCS881001R0201
- Brand:
- ABB
Subtotal (1 unit)*
£54.58
(exc. VAT)
£65.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £54.58 |
*price indicative
- RS Stock No.:
- 140-838
- Mfr. Part No.:
- 2CCS881001R0201
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 125V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 25kA | |
| Series | S801C | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Width | 27mm | |
| Standards/Approvals | UL 1077, IEC/EN 60947-2, IEC/EN 60898-1 | |
| Reset Actuator Type | I/O Actuator | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 20A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 125V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 25kA | ||
Series S801C | ||
Terminal Type Cage Terminal | ||
IP Rating IP20 | ||
Depth 82.5mm | ||
Height 95mm | ||
Width 27mm | ||
Standards/Approvals UL 1077, IEC/EN 60947-2, IEC/EN 60898-1 | ||
Reset Actuator Type I/O Actuator | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 1-pole circuit breaker with a D-characteristic. It is designed for both residential and industrial applications, offering overload and short circuit protection. With a maximum breaking capacity of 25kA at 240/415V, this MCB ensures the safety of your electrical systems.
1-pole High Performance Circuit Breaker
Maximum breaking capacity of 25kA at 240 or 415 V
Thermal and electromechanical tripping mechanisms for overload and short circuit protection
Secure and reliable protection for electrical systems
Versatile use for different voltage ranges and applications
Fast arc extinction for enhanced safety
Global approvals ensure compatibility worldwide
