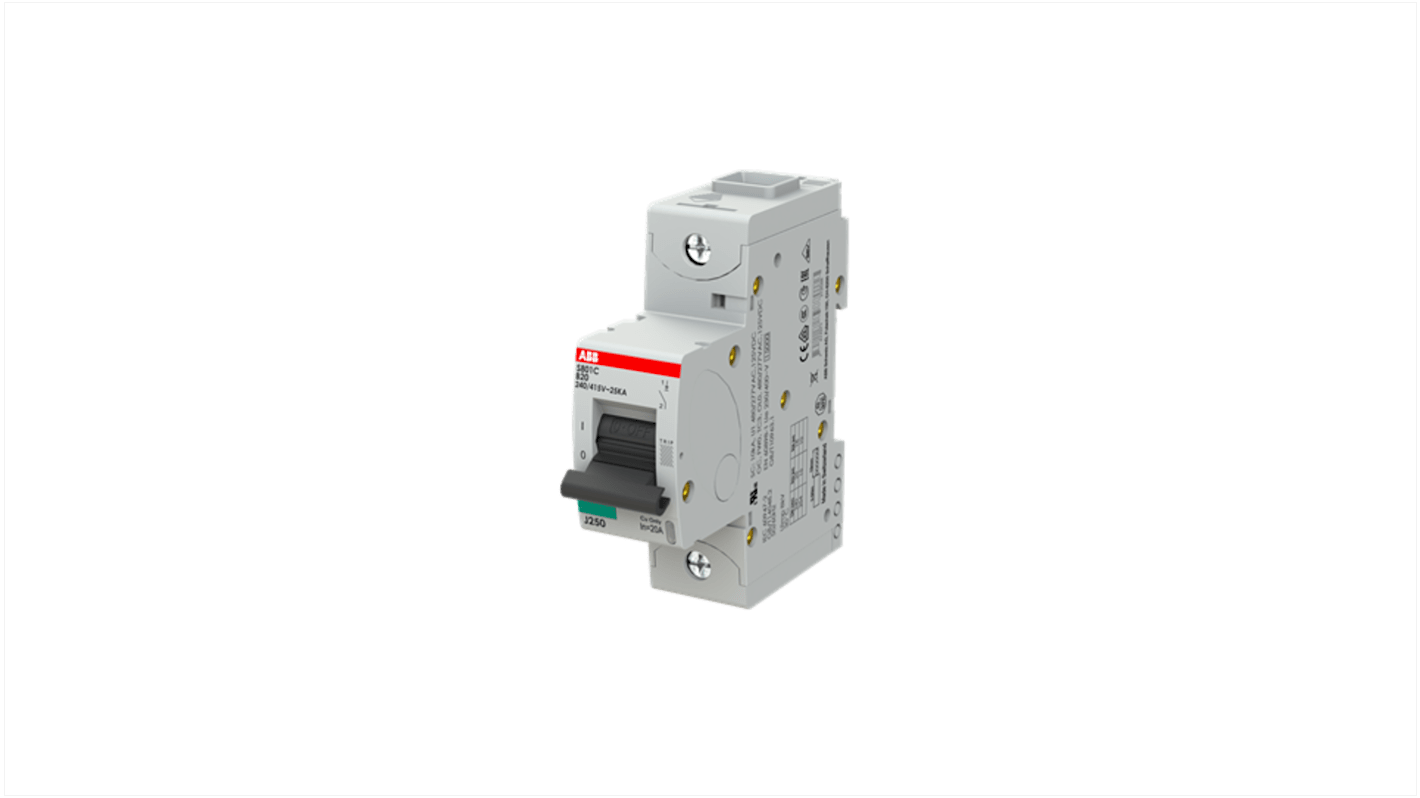

ABB S801C Miniature Circuit Breaker, 1-Pole, 20 A, Type B, 400 V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-828
- Mfr. Part No.:
- 2CCS881001R0205
- Brand:
- ABB
Subtotal (1 unit)*
£45.03
(exc. VAT)
£54.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.03 |
*price indicative
- RS Stock No.:
- 140-828
- Mfr. Part No.:
- 2CCS881001R0205
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 20 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Breaking Capacity | 25kA | |
| Mount Type | Screw, DIN Rail | |
| Series | S801C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Width | 27 mm | |
| Reset Actuator Type | I/O Actuator | |
| Tripping Mechanism | Anaerobic Adhesive, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 20 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Breaking Capacity 25kA | ||
Mount Type Screw, DIN Rail | ||
Series S801C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | ||
Depth 82.5mm | ||
Height 95mm | ||
Width 27 mm | ||
Reset Actuator Type I/O Actuator | ||
Tripping Mechanism Anaerobic Adhesive, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high performance Miniature Circuit Breaker (MCB)is designed to provide reliable overload and short circuit protection for residential, commercial, and industrial applications. With a maximum breaking capacity of 25kA, two tripping mechanisms, and compliance with various international standards, MCB ensures the safety of your electrical systems.
1-pole MCB with B-characteristic and rated current of 20 A
Current limiting device suitable for voltages up to 254/440V
Dual tripping mechanisms for overload and short circuit protection
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
Fast arc extinction for enhanced application security
