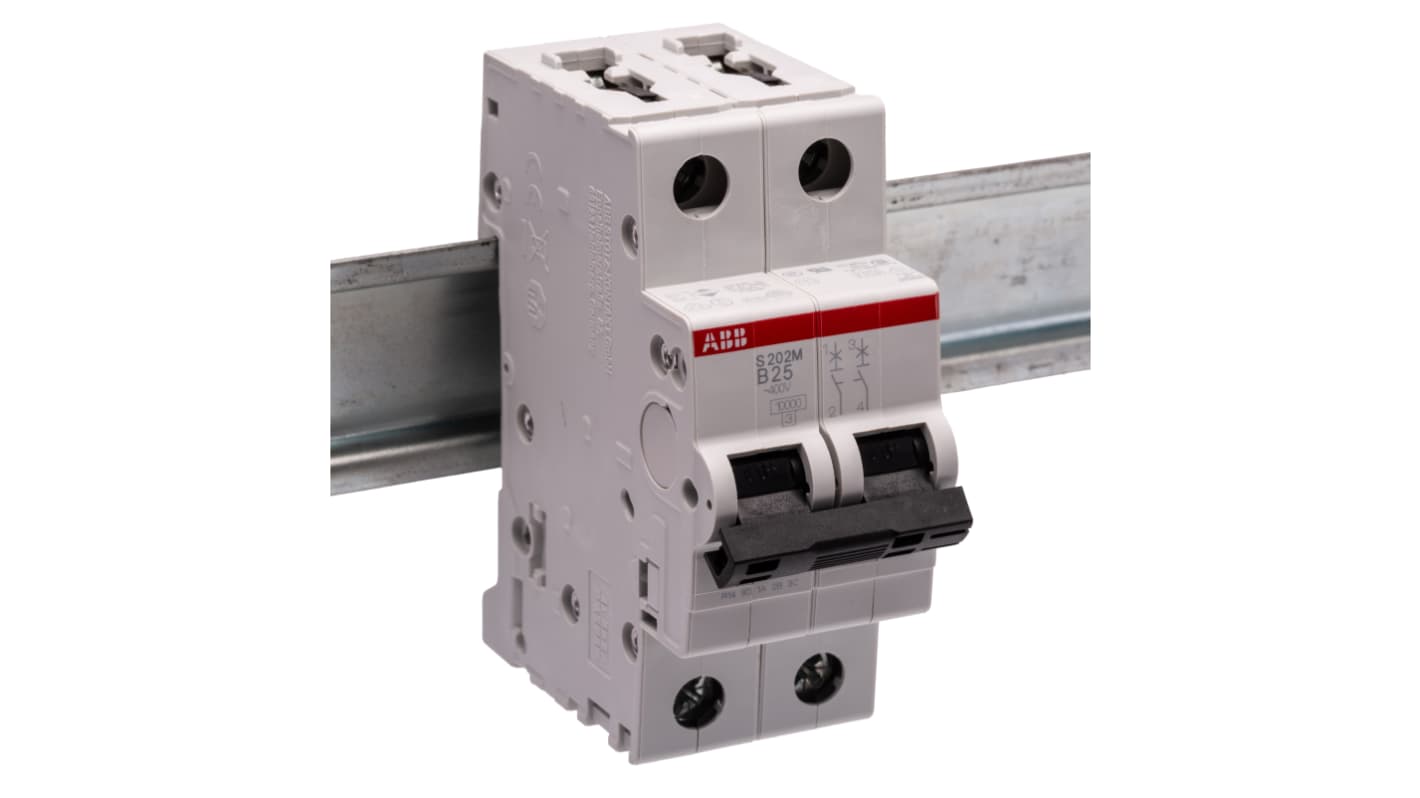

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 25A, Type B, 440V ac AC, 125 V dc DC, 10 kA Breaking
- RS Stock No.:
- 131-927
- Mfr. Part No.:
- 2CDS272001R0255 S202M-B25
- Brand:
- ABB
Subtotal (1 unit)*
£52.80
(exc. VAT)
£63.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £52.80 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 131-927
- Mfr. Part No.:
- 2CDS272001R0255 S202M-B25
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 25A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 440V ac | |
| Rated DC Voltage | 125V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200M | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 35mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 76mm | |
| Height | 88mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 440V ac | ||
Rated DC Voltage 125V dc | ||
Breaking Capacity 10kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200M | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Width 35mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 76mm | ||
Height 88mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
Reset Actuator Type Toggle Switch | ||
ABB S200M Series MCB, 2 Poles, 25A Current Rating - 2CDS272001R0255 S202M-B25
This miniature circuit breaker (MCB) provides electrical safety for both residential and commercial settings. It features capabilities for overload and short circuit protection, operating effectively within a range of up to 440V AC and 125V DC.
Features & Benefits
• Type B circuit breaker supports standard residential applications
• Dual thermal and electromechanical tripping mechanisms enhance protection
• Rated breaking capacity of 10kA ensures high fault tolerance
• Designed for DIN rail mounting simplifies installation
Applications
• Suitable for residential and commercial electrical panel installations
• Ideal for industrial environments requiring circuit protection
• Applicable in automation systems for overload safety
Is it suitable for integration into existing electrical systems?
Yes, it can easily fit into standard DIN rail configurations.
Can the operating voltage be adjusted?
Yes, the rated operational voltages can be adjusted in the specified range.
