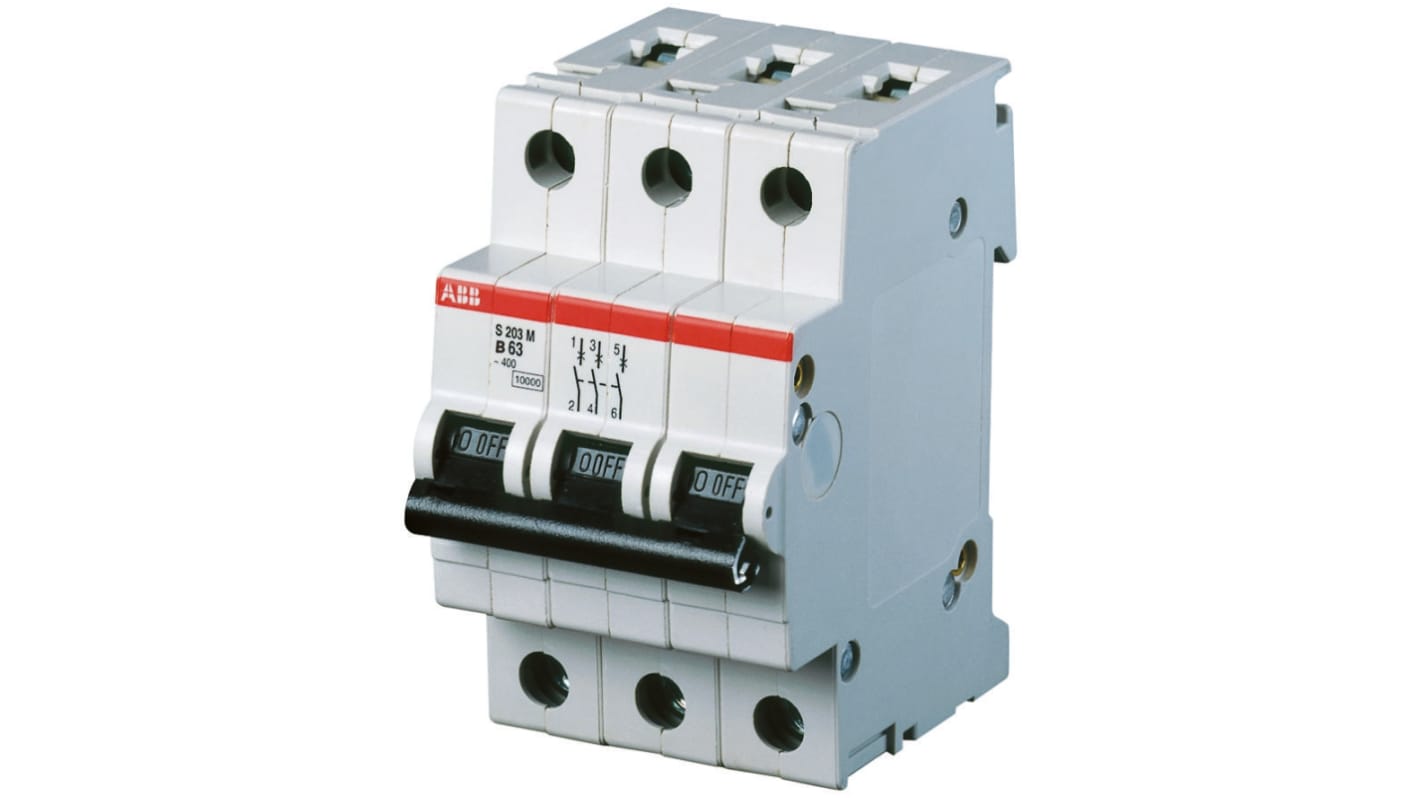

ABB System Pro M Compact S200M MCB, 3P, 25A Curve B, 440V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 535-6112
- Mfr. Part No.:
- 2CDS273001R0255 S203M-B25
- Brand:
- ABB
Subtotal (1 unit)*
£79.86
(exc. VAT)
£95.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £79.86 |
*price indicative
- RS Stock No.:
- 535-6112
- Mfr. Part No.:
- 2CDS273001R0255 S203M-B25
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 3 | |
Current Rating | 25A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 440V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | System Pro M Compact | |
Series | S200M | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | S203M-B25 | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 440V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range System Pro M Compact | ||
Series S200M | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number S203M-B25 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 25A, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS273001R0255 S203M-B25
This miniature circuit breaker is designed for use in various electrical installations, providing essential protection against overloads and short circuits to ensure safety in commercial and industrial environments. By integrating thermal and electromechanical tripping mechanisms, it responds effectively to different fault conditions, thereby enhancing system integrity.
Features & Benefits
• Delivers short circuit protection for critical electrical systems
• Incorporates a thermal electromechanical tripping mechanism for improved safety
• Designed for simple installation on DIN rails for easier setup
• Current-limiting design for enhanced operational reliability
• High breaking capacity of 10kA to manage fault currents
• Compliant with IEC standards, ensuring wide applicability
• Incorporates a thermal electromechanical tripping mechanism for improved safety
• Designed for simple installation on DIN rails for easier setup
• Current-limiting design for enhanced operational reliability
• High breaking capacity of 10kA to manage fault currents
• Compliant with IEC standards, ensuring wide applicability
Applications
• Suitable for commercial electrical panels, providing efficient protection
• Ideal for industrial machinery to prevent circuit overloads
• Effective in residential settings where safety is vital
• Appropriate for projects that require compliance with rigorous electrical regulations
• Ideal for industrial machinery to prevent circuit overloads
• Effective in residential settings where safety is vital
• Appropriate for projects that require compliance with rigorous electrical regulations
What are the installation requirements for this device?
It can be mounted easily on standard DIN rails, making it compatible with most electrical panels.
How does the tripping mechanism work?
The device employs both thermal and electromechanical mechanisms to respond appropriately to overloads and short circuits.
Can it handle different voltage types?
Yes, it is designed for both AC and DC applications, making it versatile for various setups.
Is this suitable for use in wet environments?
While it provides a degree of protection, specific environmental conditions should be evaluated to ensure compliance with safety standards.
What maintenance is required for optimal performance?
Regular inspections should be conducted to ensure functionality, with any signs of wear or damage being addressed promptly.
Standards
BS EN 60898
