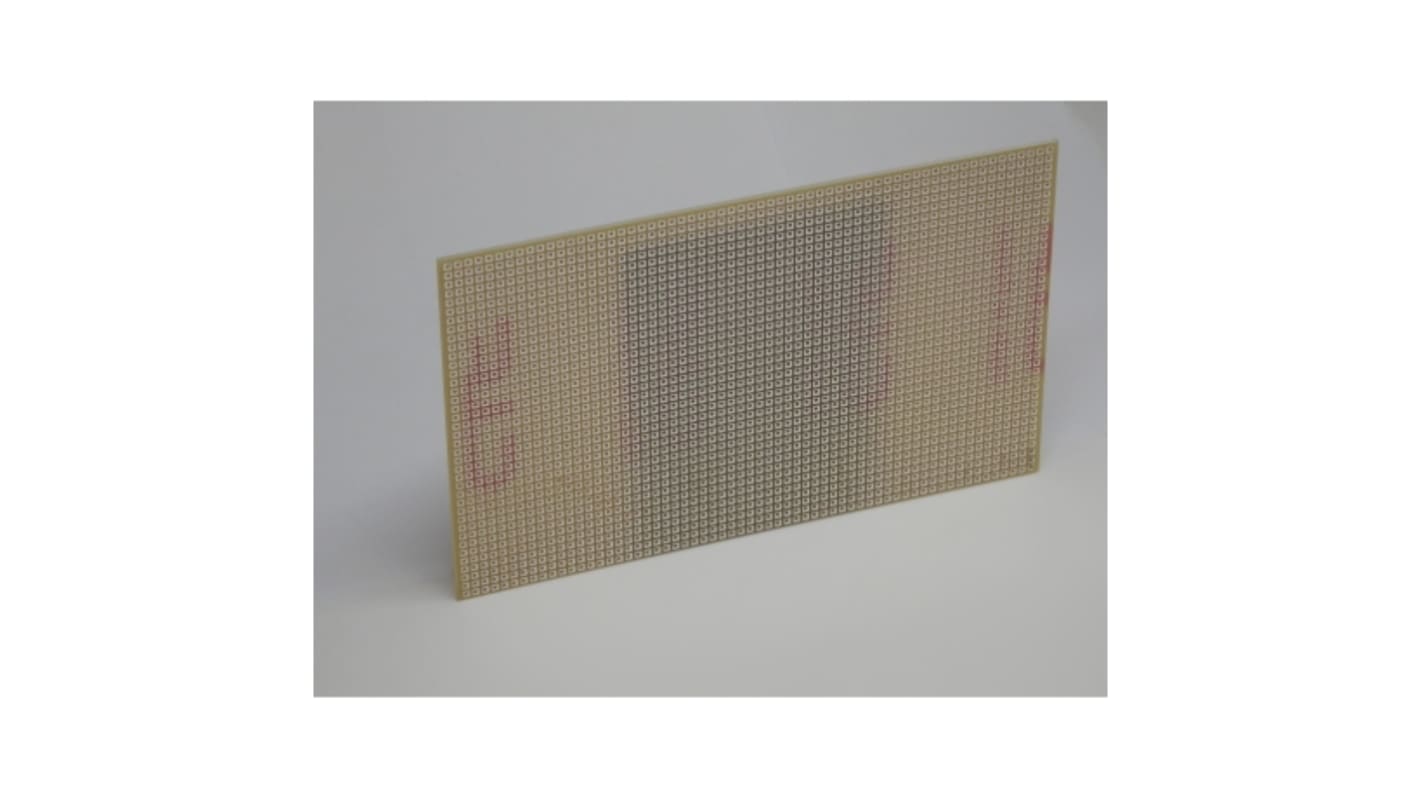

CIF Single Sided Matrix Board FR4 1mm Holes, 160 x 200mm
- RS Stock No.:
- 218-9176
- Mfr. Part No.:
- AGP20
- Brand:
- CIF
2 In stock - FREE next working day delivery available
37 available from Europe for delivery within 1 working day(s).
Added
Price Each
£14.15
(exc. VAT)
£16.98
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £14.15 |
| 5 - 9 | £13.16 |
| 10 - 19 | £12.69 |
| 20 - 49 | £11.55 |
| 50 + | £11.04 |
- RS Stock No.:
- 218-9176
- Mfr. Part No.:
- AGP20
- Brand:
- CIF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
The CIF Tinned copper clad board has 1mm dia, pitch 2.5 mm 1 side and format 160 x 200mm.
Drilled in steps of 2.54 mm
Ø -> drilling 1 mm
Square pads 2 mm side.
Interval 0.54 mm over the entire surface.
Ø -> drilling 1 mm
Square pads 2 mm side.
Interval 0.54 mm over the entire surface.
Specifications
Attribute | Value |
|---|---|
| Number of Sides | 1 |
| Dimensions | 160 x 200mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1mm |
| FR Material Grade | FR4 |
