CIF Single Sided Matrix Board 1mm Holes, 2.54mm Pitch, 100 x 580mm
- RS Stock No.:
- 181-6586
- Mfr. Part No.:
- ACP58
- Brand:
- CIF
Bulk discount available
Subtotal (1 unit)*
£24.54
(exc. VAT)
£29.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £24.54 |
| 10 - 24 | £23.31 |
| 25 - 49 | £22.08 |
| 50 + | £20.86 |
*price indicative
- RS Stock No.:
- 181-6586
- Mfr. Part No.:
- ACP58
- Brand:
- CIF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CIF | |
| Number of Sides | 1 | |
| Hole Pitch | 2.54mm | |
| Dimensions | 100 x 580mm | |
| Length | 100mm | |
| Width | 580mm | |
| Hole Diameter | 1mm | |
| Copper Thickness | 35µm | |
Select all | ||
|---|---|---|
Brand CIF | ||
Number of Sides 1 | ||
Hole Pitch 2.54mm | ||
Dimensions 100 x 580mm | ||
Length 100mm | ||
Width 580mm | ||
Hole Diameter 1mm | ||
Copper Thickness 35µm | ||
- COO (Country of Origin):
- FR

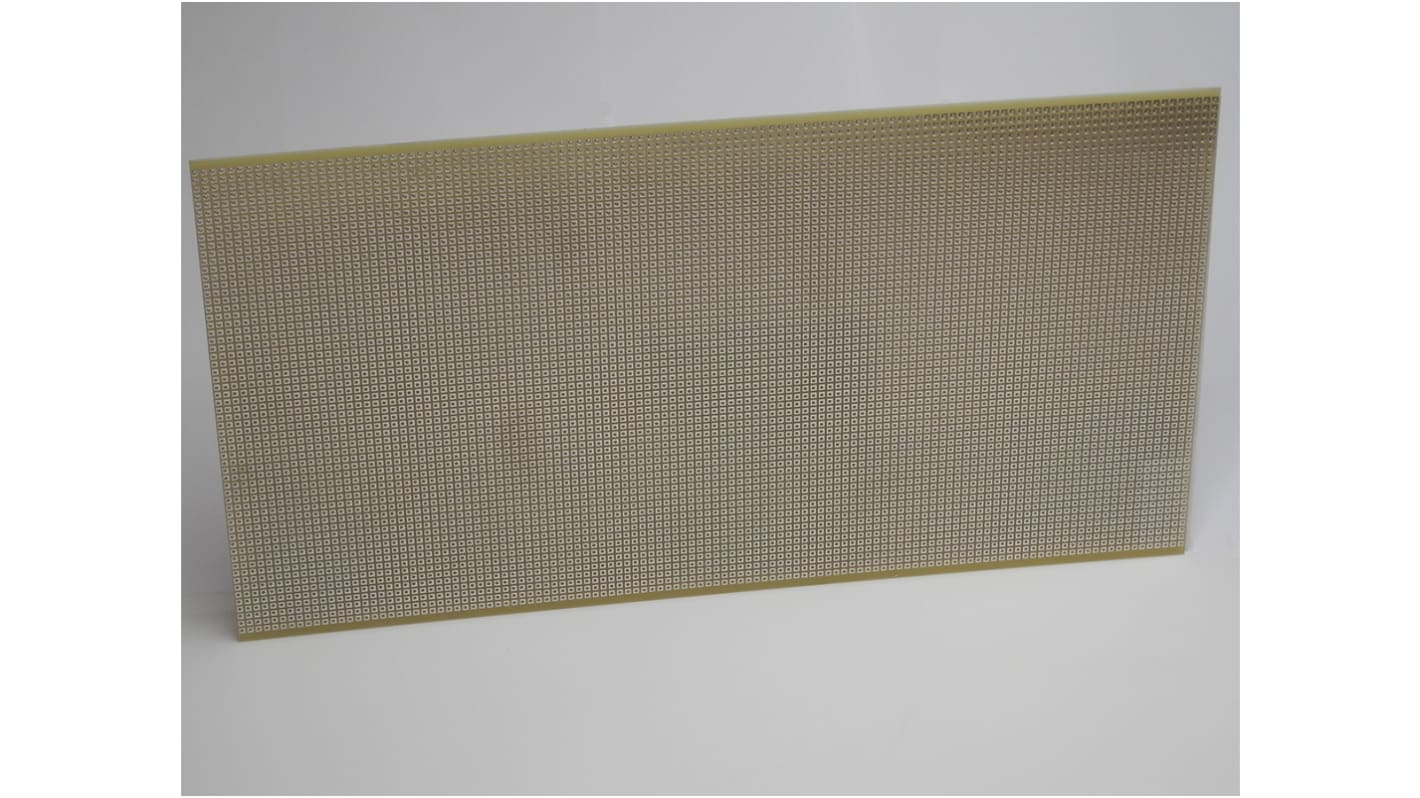

Cif Athelec Matrix Board
The Cif Athelec matrix board is 100mm long and 580mm wide. It is a single-sided board with 1mm holes and 2.54mm pitch.
Features and Benefits
• 15/10th tinned copper clad pads on CEM 1
• A gap of 0.54mm on the whole surface
• Copper thickness 35μm
• Square pads 2mm each side
• A gap of 0.54mm on the whole surface
• Copper thickness 35μm
• Square pads 2mm each side
Applications
• As a pre design tool
• Laying out electrical components securely
• To customise circuit board fabrication
• Laying out electrical components securely
• To customise circuit board fabrication
