CIF Single Sided Matrix Board 1mm Holes, 2.54mm Pitch, 100 x 160mm
- RS Stock No.:
- 181-6589
- Mfr. Part No.:
- ACB16
- Brand:
- CIF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-6589
- Mfr. Part No.:
- ACB16
- Brand:
- CIF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CIF | |
| Number of Sides | 1 | |
| Hole Pitch | 2.54mm | |
| Dimensions | 100 x 160mm | |
| Length | 100mm | |
| Width | 160mm | |
| Thickness | 1.5mm | |
| Base Material | Epoxy fibre-glass | |
| Hole Diameter | 1mm | |
| Copper Thickness | 35µm | |
Select all | ||
|---|---|---|
Brand CIF | ||
Number of Sides 1 | ||
Hole Pitch 2.54mm | ||
Dimensions 100 x 160mm | ||
Length 100mm | ||
Width 160mm | ||
Thickness 1.5mm | ||
Base Material Epoxy fibre-glass | ||
Hole Diameter 1mm | ||
Copper Thickness 35µm | ||
- COO (Country of Origin):
- FR

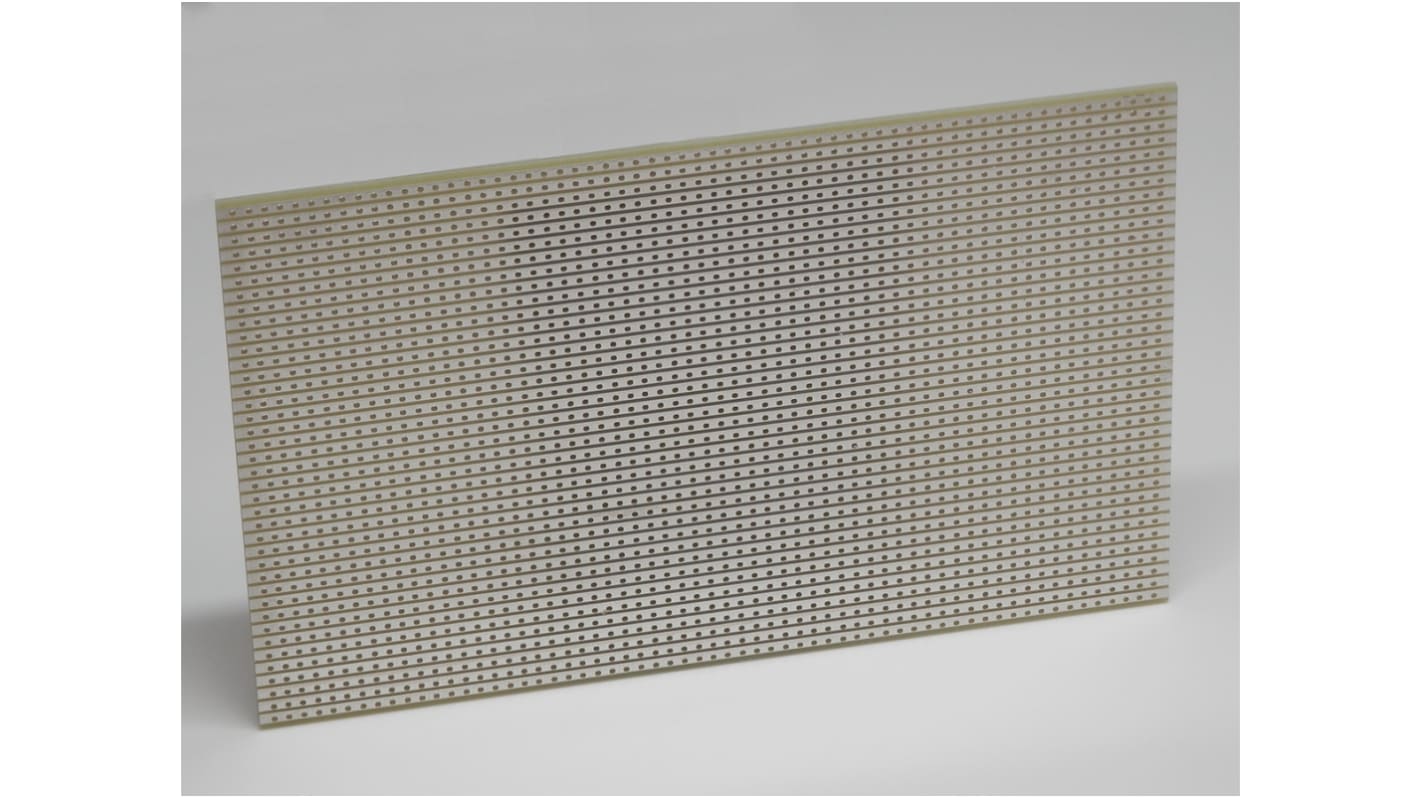

Cif Athelec Matrix Board
The Cif Athelec matrix board is 100mm long and 160mm wide.
Applications
• As a pre design tool
• Laying out electrical components securely
• To customise circuit board fabrication
• Laying out electrical components securely
• To customise circuit board fabrication
