KIMO Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 1000 Pa
- RS Stock No.:
- 241-0445
- Mfr. Part No.:
- MP 110 S
- Brand:
- KIMO
Subtotal (1 unit)*
£288.66
(exc. VAT)
£346.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £288.66 |
*price indicative
- RS Stock No.:
- 241-0445
- Mfr. Part No.:
- MP 110 S
- Brand:
- KIMO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KIMO | |
| Accuracy | 0.5 % | |
| Product Type | Manometer | |
| Number of Pressure Ports | 2 | |
| Maximum Pressure Measurement | 1000Pa | |
| Minimum Pressure Measurement | -1000Pa | |
| Pressure Port Type | Differential | |
| Power Source | Battery | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | 0°C | |
| Battery Type | AAA LR03 | |
| Battery Life | 180h | |
| Maximum Operating Temperature | 50°C | |
| Display Type | 4-line Display | |
| Standards/Approvals | 2014/30/EU EMC, RoHS II, 2012/19/EU WEEE, 2014/35/EU | |
| Height | 147.9mm | |
| Length | 71.5mm | |
| Width | 34.2 mm | |
| Hazardous Area Certification | No | |
| Weight | 220g | |
| Select all | ||
|---|---|---|
Brand KIMO | ||
Accuracy 0.5 % | ||
Product Type Manometer | ||
Number of Pressure Ports 2 | ||
Maximum Pressure Measurement 1000Pa | ||
Minimum Pressure Measurement -1000Pa | ||
Pressure Port Type Differential | ||
Power Source Battery | ||
IP Rating IP54 | ||
Minimum Operating Temperature 0°C | ||
Battery Type AAA LR03 | ||
Battery Life 180h | ||
Maximum Operating Temperature 50°C | ||
Display Type 4-line Display | ||
Standards/Approvals 2014/30/EU EMC, RoHS II, 2012/19/EU WEEE, 2014/35/EU | ||
Height 147.9mm | ||
Length 71.5mm | ||
Width 34.2 mm | ||
Hazardous Area Certification No | ||
Weight 220g | ||
- COO (Country of Origin):
- FR

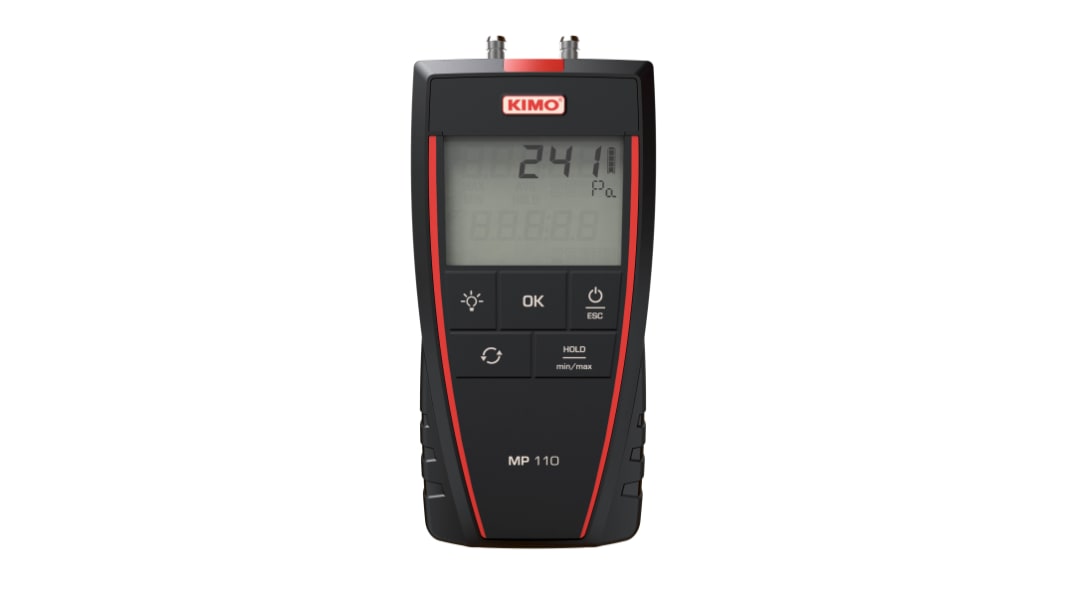

The KIMO portable micromanometer with integrated pressure sensor has 2-line display. It has functions such as pressure, hold, min, max, backlight, change of unit, configurable automatic switch-off, manual auto-zero. It is supplied with black and white silicone tube.
Backlit LCD screen
Easily view different parameters
Browse saved measurements history and data graphs
Create reports (PDF, CSV, or XML) and add up to four (4) photos
