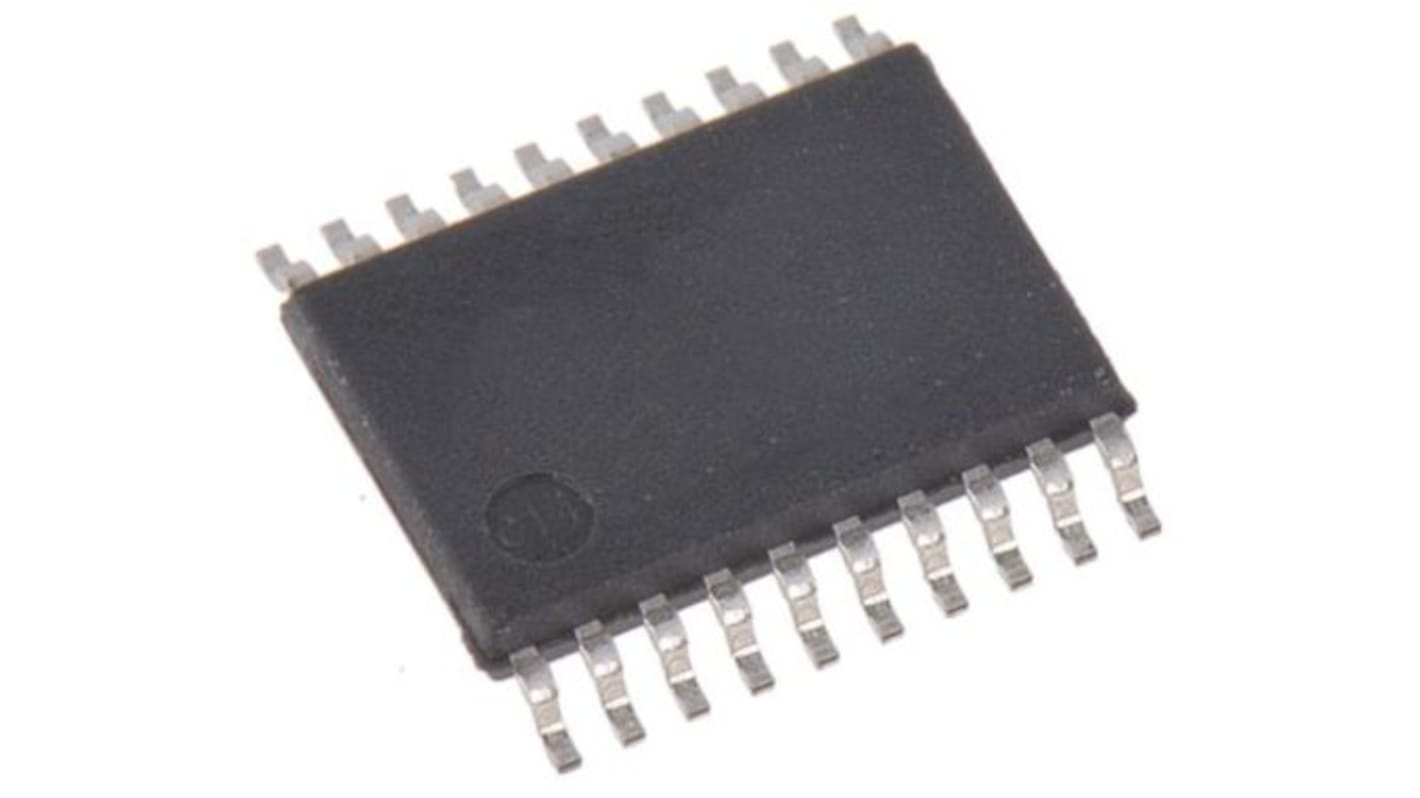

Renesas Electronics 9DB102BGILF, LVDS Buffer 2 TTL Buffer, 20-Pin TSSOP

Bulk discount available
View bulk pricing options

Subtotal (1 pack of 5 units)*

£16.35

(exc. VAT)

£19.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 5£3.27£16.35
10 - 20£2.95£14.75
25 - 95£2.776£13.88
100 - 245£2.418£12.09
250 +£2.29£11.45

*price indicative

Packaging Options:
RS Stock No.:
217-7929
Mfr. Part No.:
9DB102BGILF
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Number of Drivers

2

Product Type

LVDS Buffer

Input Type

TTL

Sub Type

Buffer

Output Type

Buffer

Number of Elements per Chip

2

Mount Type

Surface

Package Type

TSSOP

Pin Count

20

Minimum Supply Voltage

3V

Maximum Supply Voltage

3.3V

ESD Protection

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

9DB102

Standards/Approvals

No

Length

6.6mm

Height

1.05mm

Automotive Standard

No

The Renesas Electronics 9DB102 zero-delay buffer supports PCI Express clocking requirements. The 9DB102 is driven by a differential SRC output pair from an IDT CK409/CK410-compliant main clock generator such as the 952601 or 954101. It attenuates jitter on the input clock and has a selectable PLL Band Width to maximize performance in systems with or without Spread- Spectrum clocking.

2 - 0.7 V HCSL differential output pairs

Phase jitter: PCIe Gen2 < 3.1 ps rms

Phase jitter: PCIe Gen1 < 86 ps peak to peak

Supports zero delay buffer mode and fanout mode

Bandwidth programming available

33-110 MHz operation in PLL mode

10-110 MHz operation in Bypass mode
