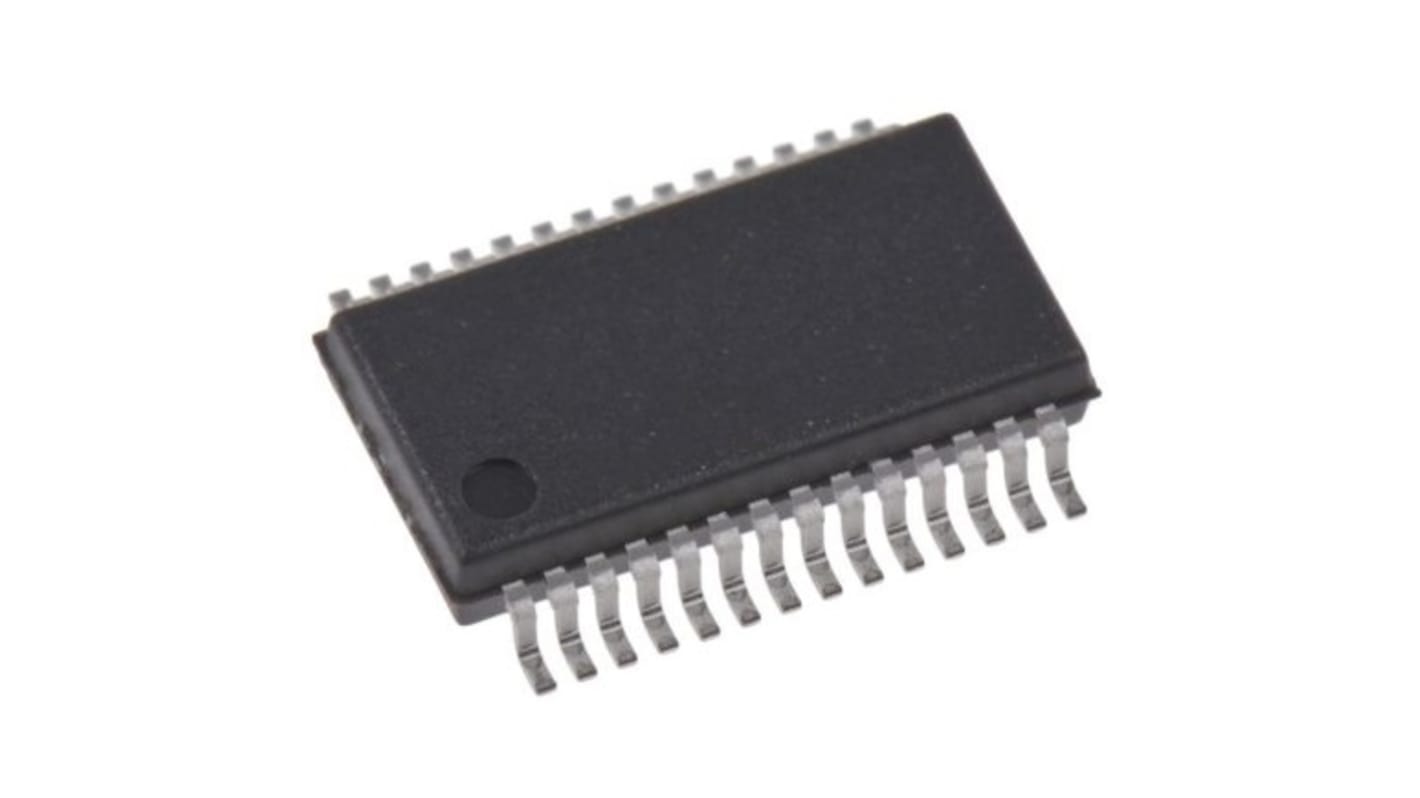

Renesas Electronics HIN213EIAZ 28-Channel Line Transmitter, CMOS/TTL, 28-Pin SSOP

View all Line Interface ICs
Bulk discount available

Subtotal (1 tube of 705 units)*

£804.405

(exc. VAT)

£965.145

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Tube*
705 - 2115£1.141£804.41
2820 +£1.113£784.67

*price indicative

RS Stock No.:
264-3547
Mfr. Part No.:
HIN213EIAZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS

Product Type

Line Transmitter

Logic Function

Transceiver

IC Type

Transmitter/Receiver

Number of Channels

28

Input Type

CMOS, TTL

Output Type

CMOS/TTL

Mount Type

PCB

Package Type

SSOP

Pin Count

28

Maximum Supply Voltage

30V

Maximum High Level Output Current

15mA

Maximum Propagation Delay Time @ CL

0.5μs

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

8mA

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Series

HIN213E

Height

2mm

Length

6.5mm

Automotive Standard

No

Supply Current

8mA

The Renesas Electronics Transceiver IC, family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems.

Low power consumption

Pb-free plus anneal available

Requires only single +5V power supply

Requires only 0.1μF or greater external capacitors
