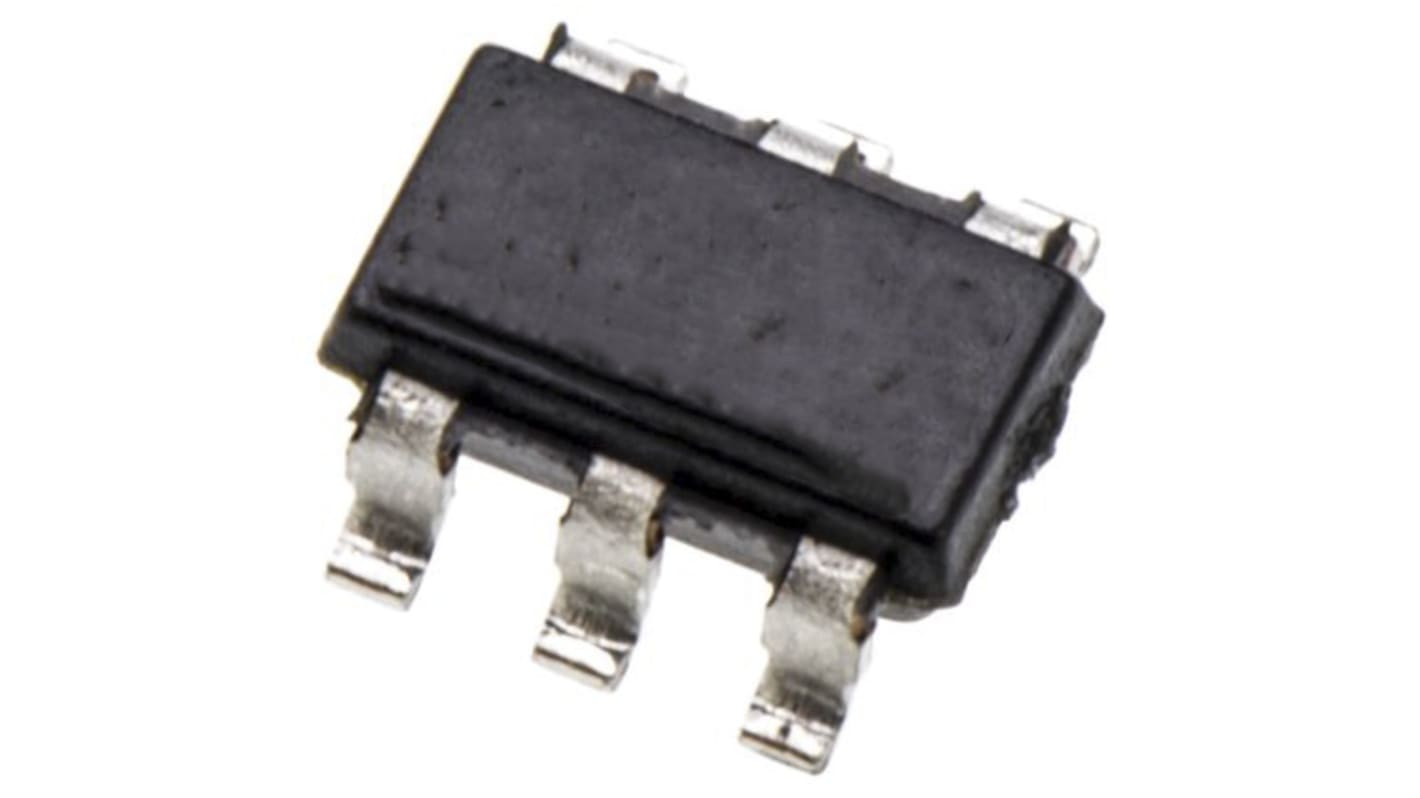

Renesas Electronics ISL3281EIHZ-T Line Transceiver, Non-Inverting, 6-Pin SOT-23

View all Line Interface ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

£7.32

(exc. VAT)

£8.785

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,575 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£1.464£7.32
50 - 95£1.246£6.23
100 - 245£1.068£5.34
250 - 995£0.994£4.97
1000 +£0.75£3.75

*price indicative

Packaging Options:
RS Stock No.:
256-1613
Mfr. Part No.:
ISL3281EIHZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

BiCMOS

Product Type

Line Transceiver

Logic Function

Transceiver

IC Type

Transceiver

Input Type

RS422/RS485

Polarity

Non-Inverting

Package Type

SOT-23

Pin Count

6

Minimum Supply Voltage

3V

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

500μA

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

80μA

Maximum Operating Temperature

85°C

Series

ISL3281E

Standards/Approvals

IEC 61000, RoHS

Length

2.9mm

Height

1.45mm

Width

1.6 mm

Supply Current

400μA

Automotive Standard

No

The Renesas RS-485/RS-422 Receiver is ±16.5kV IEC61000 ESD Protected, 3.0V to 5.5V powered, single receivers that meet both the RS-485 and RS-422 standards for balanced communication. These receivers have very low bus currents (+125μA/-100μA), so they present a true 1/8 unit load to the RS-485 bus. This allows up to 256 receivers on the network without violating the RS-485 specification’s 32 unit load maximum and without using repeaters.

Pb-free (RoHS compliant)

Wide supply range of 3.0V to 5.5V

Specified for +125°C operation

True 1/8 unit load allows up to 256 devices on the bus

High data rates up to 20Mbps

Low quiescent supply current of 500μA (max)

Very low shutdown supply current is of 20μA (max)
