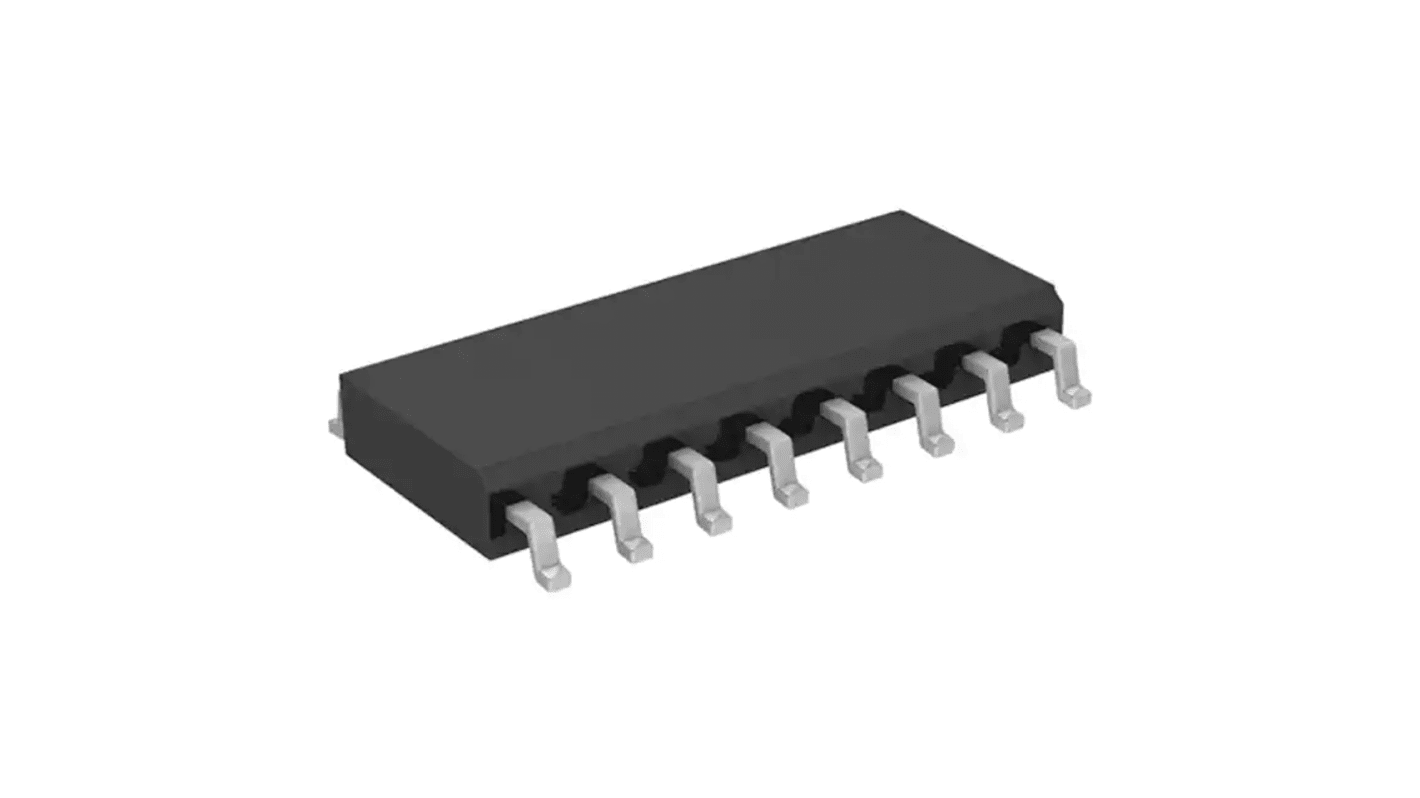

Renesas Electronics HIN232ACBNZ Line Transceiver, 16-Pin SOIC
- RS Stock No.:
- 235-5233
- Mfr. Part No.:
- HIN232ACBNZ
- Brand:
- Renesas Electronics
3648 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 48)
£1.166
(exc. VAT)
£1.399
(inc. VAT)
| Units | Per unit | Per Tube* |
| 48 - 192 | £1.166 | £55.968 |
| 240 - 432 | £1.108 | £53.184 |
| 480 - 1152 | £1.026 | £49.248 |
| 1200 + | £0.98 | £47.04 |
| *price indicative | ||
- RS Stock No.:
- 235-5233
- Mfr. Part No.:
- HIN232ACBNZ
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics HIN232A high-speed RS-232 transmitter/receiver interface circuit meets all ElA high-speed RS-232E and V.28 specifications, and is particularly suited for those applications where +/-12V is not available. They require a single +5V power supply and feature on-board charge pump voltage converters which generate +10V and -10V supplies from the 5V supply.
High data rate is 230kbit/s
Requires only single +5V power supply
On-board voltage doubler/inverter
Low power consumption (Typ) is 5mA
Requires only single +5V power supply
On-board voltage doubler/inverter
Low power consumption (Typ) is 5mA
Specifications
Attribute | Value |
|---|---|
| Logic Function | Transceiver |
| IC Type | Transceiver IC |
| Input Type | CMOS, TTL |
| Package Type | SOIC |
| Pin Count | 16 |
