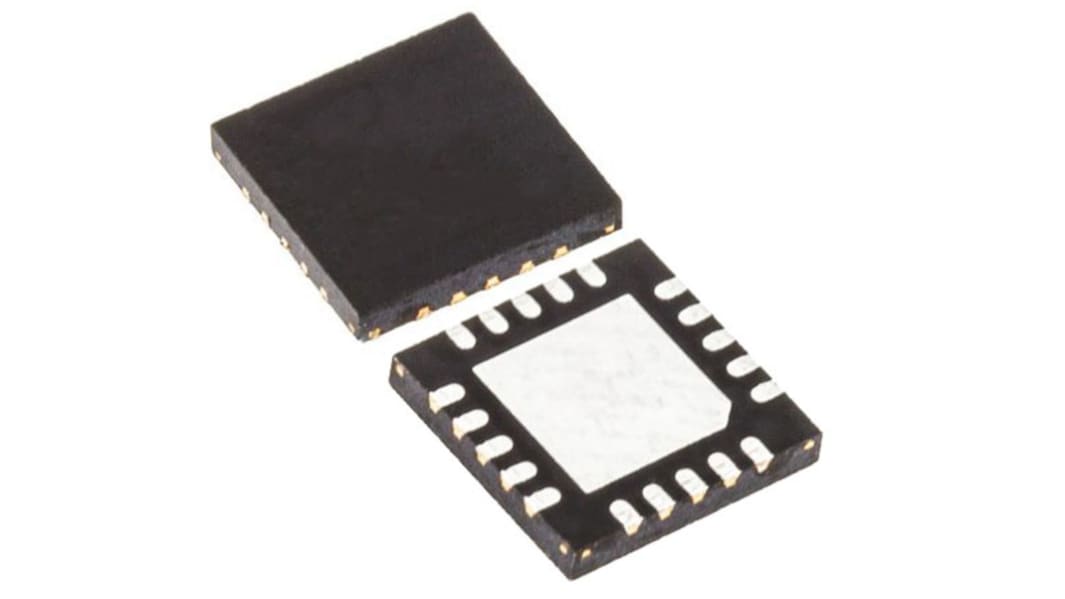

Maxim Integrated MAX3225EETP+ Line Transceiver, CMOS/TTL, Inverting, 20-Pin TQFN

View all Line Interface ICs

Subtotal (1 pack of 2 units)*

£7.26

(exc. VAT)

£8.72

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 950 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +£3.63£7.26

*price indicative

Packaging Options:
RS Stock No.:
190-7391
Mfr. Part No.:
MAX3225EETP+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Logic Family

CMOS

Product Type

Line Transceiver

Logic Function

Driver & Receiver

IC Type

Line Transceiver IC

Input Type

Single Ended

Output Type

CMOS/TTL

Polarity

Inverting

Mount Type

Surface

Package Type

TQFN

Pin Count

20

Minimum Supply Voltage

3V

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

-1mA

Maximum Low Level Output Current

1.6mA

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

0.15μs

Maximum Operating Temperature

85°C

Standards/Approvals

No

Height

0.8mm

Length

5.1mm

Series

MAX3225E

Supply Current

1μA

Automotive Standard

No

For Space-Constrained Applications:

MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V Transceivers in UCSP™

MAX3222E/MAX3232E/MAX3241E/MAX3246E: ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, Transceivers (MAX3246E Available in UCSP)

For Low-Voltage or Data Cable Applications:

MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx Transceivers with ±15kV ESD-Protected I/O and Logic Pins

Applications

Automotive

Battery-Powered Equipment

Cellular Phones

Handheld Equipment

Notebook, Subnotebook, and Palmtop Computers

Peripherals

Printers
