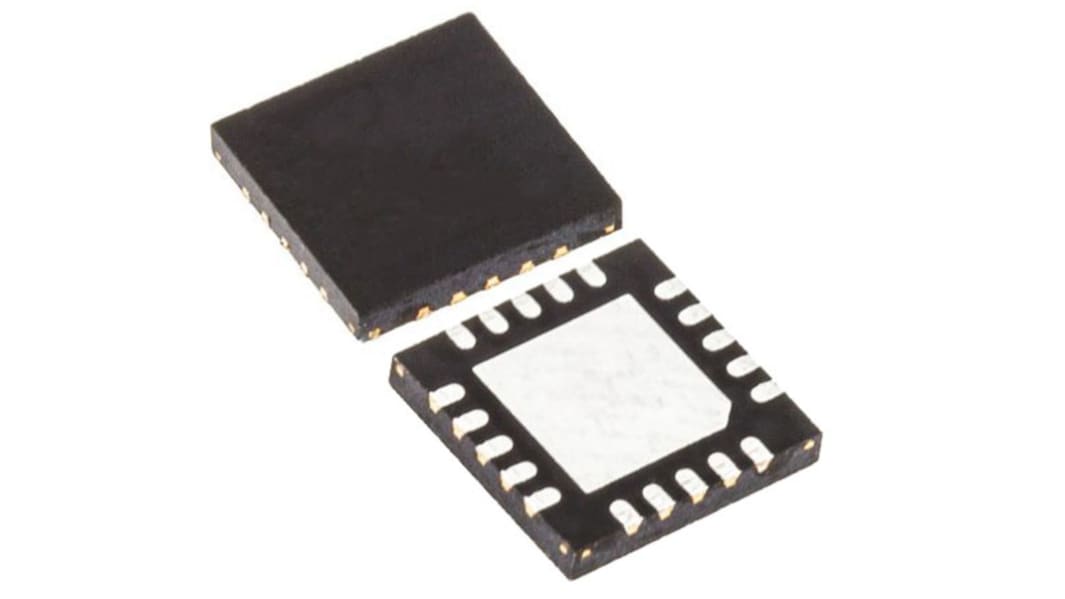

Maxim Integrated MAX3225EETP+ Line Transceiver, 20-Pin TQFN
- RS Stock No.:
- 190-6215
- Mfr. Part No.:
- MAX3225EETP+
- Brand:
- Maxim Integrated
3360 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 60)
£4.254
(exc. VAT)
£5.105
(inc. VAT)
| Units | Per unit | Per Tube* |
| 60 + | £4.254 | £255.24 |
| *price indicative | ||
- RS Stock No.:
- 190-6215
- Mfr. Part No.:
- MAX3225EETP+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
For Space-Constrained Applications:
MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V Transceivers in UCSP™
MAX3222E/MAX3232E/MAX3241E/MAX3246E: ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, Transceivers (MAX3246E Available in UCSP)
For Low-Voltage or Data Cable Applications:
MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx Transceivers with ±15kV ESD-Protected I/O and Logic Pins
Applications
Automotive
Battery-Powered Equipment
Cellular Phones
Handheld Equipment
Notebook, Subnotebook, and Palmtop Computers
Peripherals
Printers
MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V Transceivers in UCSP™
MAX3222E/MAX3232E/MAX3241E/MAX3246E: ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, Transceivers (MAX3246E Available in UCSP)
For Low-Voltage or Data Cable Applications:
MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx Transceivers with ±15kV ESD-Protected I/O and Logic Pins
Applications
Automotive
Battery-Powered Equipment
Cellular Phones
Handheld Equipment
Notebook, Subnotebook, and Palmtop Computers
Peripherals
Printers
Specifications
Attribute | Value |
|---|---|
| IC Type | Line Transceiver IC |
| Input Type | Single Ended |
| Number of Transmitters | 2 (RS-232) |
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Pin Count | 20 |
| Dimensions | 5 x 5 x 0.75mm |
