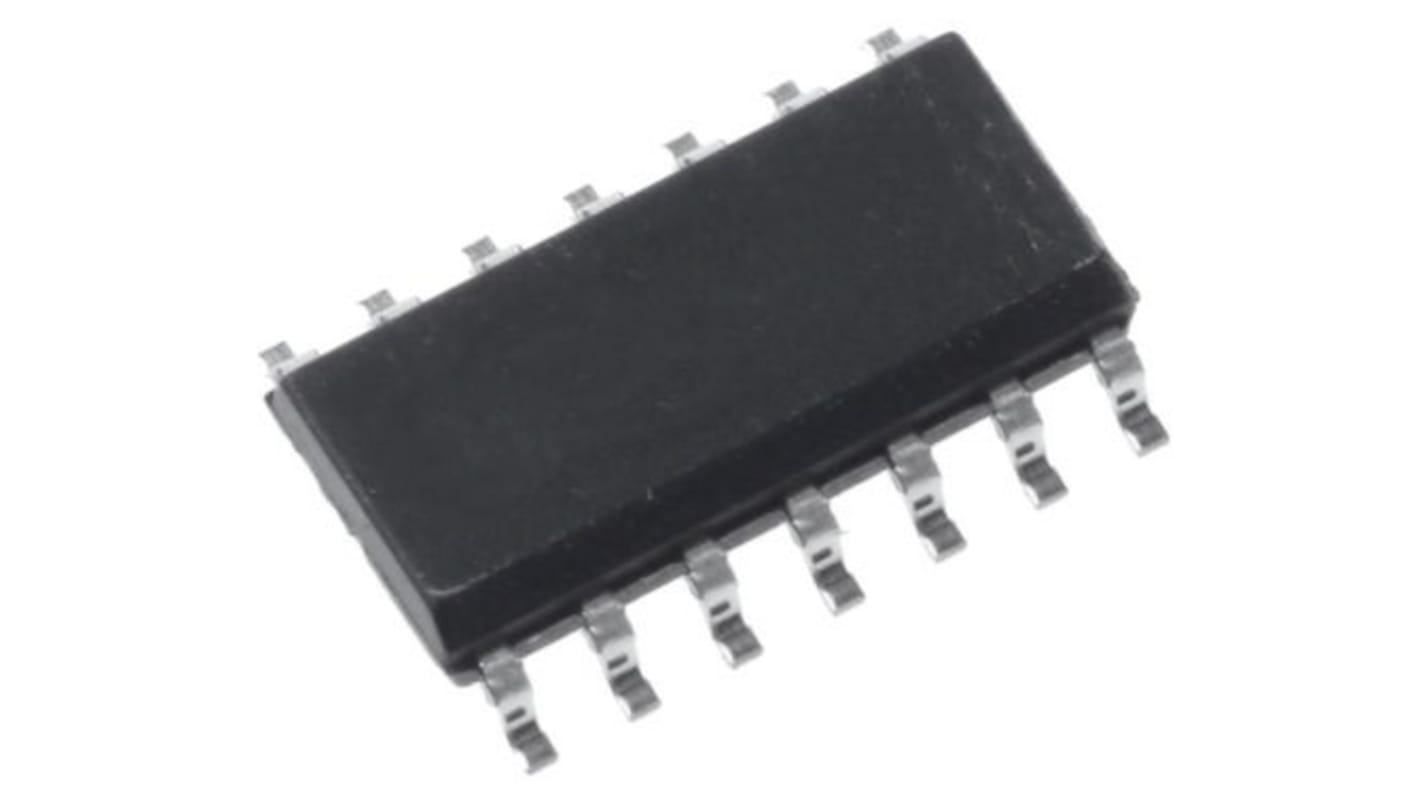

Maxim Integrated MAX3070EASD+ Line Transceiver, BiCMOS, Inverting, 14-Pin SOIC

View all Line Interface ICs

Subtotal (1 pack of 2 units)*

£6.23

(exc. VAT)

£7.476

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 728 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +£3.115£6.23

*price indicative

Packaging Options:
RS Stock No.:
190-7135
Mfr. Part No.:
MAX3070EASD+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Product Type

Line Transceiver

Logic Family

CMOS/TTL

Logic Function

Driver, Line Driver, Converter

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

BiCMOS

Polarity

Inverting

Mount Type

Surface

Package Type

SOIC

Pin Count

14

Minimum Supply Voltage

-0.3V

Maximum High Level Output Current

250mA

Maximum Supply Voltage

6V

Maximum Propagation Delay Time @ CL

1.5ms

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

40mA

Maximum Operating Temperature

125°C

Height

1.75mm

Series

MAX3070E

Standards/Approvals

No

Length

8.75mm

Width

6.2 mm

Automotive Standard

No

Supply Current

1.5mA

Protection for Robust Performance

±15kV Human Body Model ESD on I/O Pins

True Fail-Safe Receiver

Enhanced Slew-Rate-Limiting Facilitates Error-Free Data Transmission (MAX3070E-MAX3075E/MAX3079E)

Hot-Swap Input Structure on DE and Active-Low RE

Flexible Feature Set for Ease of Design

Pin-Selectable Full/Half-Duplex Operation (MAX3079E)

Phase Controls to Correct for Twisted-Pair Reversal (MAX3079E)

Allows up to 256 Transceivers on the Bus

Available in Industry-Standard SO and DIP packages

10μA Shutdown Current Mode for Power Savings (Except MAX3071E/MAX3074E/MAX3077E)

Applications/Uses

Industrial Control

Instrumentation

Lighting Systems

Security Systems

Telecom
