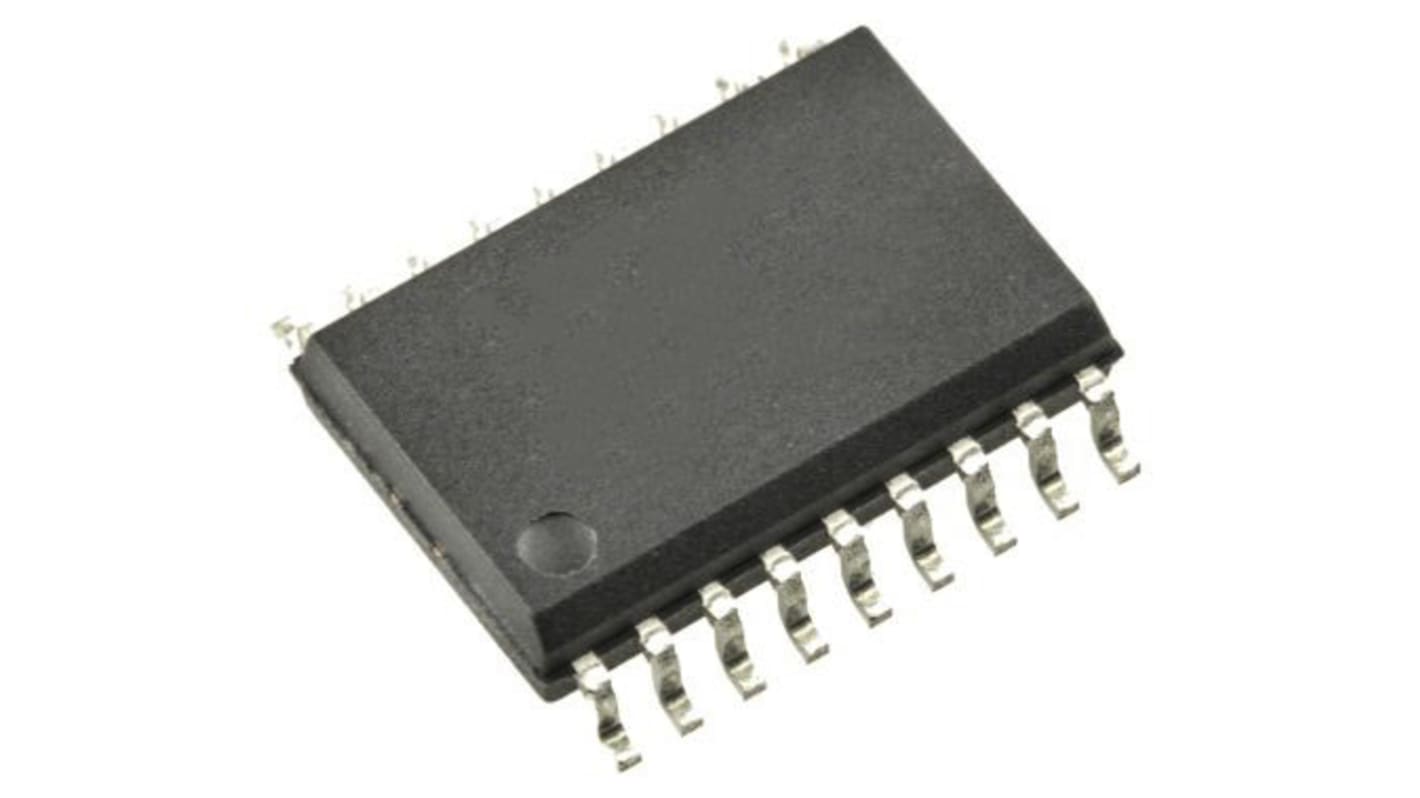

Maxim Integrated MAX222EWN+ Line Transceiver, 18-Pin SOIC
- RS Stock No.:
- 190-6156
- Mfr. Part No.:
- MAX222EWN+
- Brand:
- Maxim Integrated
200 In stock - FREE next working day delivery available
Price Each (In a Tube of 40)
£5.645
(exc. VAT)
£6.774
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 - 80 | £5.645 | £225.80 |
| 120 + | £5.628 | £225.12 |
| *price indicative | ||
- RS Stock No.:
- 190-6156
- Mfr. Part No.:
- MAX222EWN+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
The MAX220–MAX249 family of line drivers/receivers is intended for communications interfaces, particularly applications where ±12V is not available..
The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
The MAX220–MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C. See ordering information table at the end of the data sheet for all package and temperature options.
The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
The MAX220–MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C. See ordering information table at the end of the data sheet for all package and temperature options.
Specifications
Attribute | Value |
|---|---|
| IC Type | Line Transceiver IC |
| Input Type | Single Ended |
| Mounting Type | Surface Mount |
| Number of Transmitters | 2 (RS-232) |
| Package Type | SOIC |
| Pin Count | 18 |
| Dimensions | 11.75 x 7.6 x 2.35mm |
