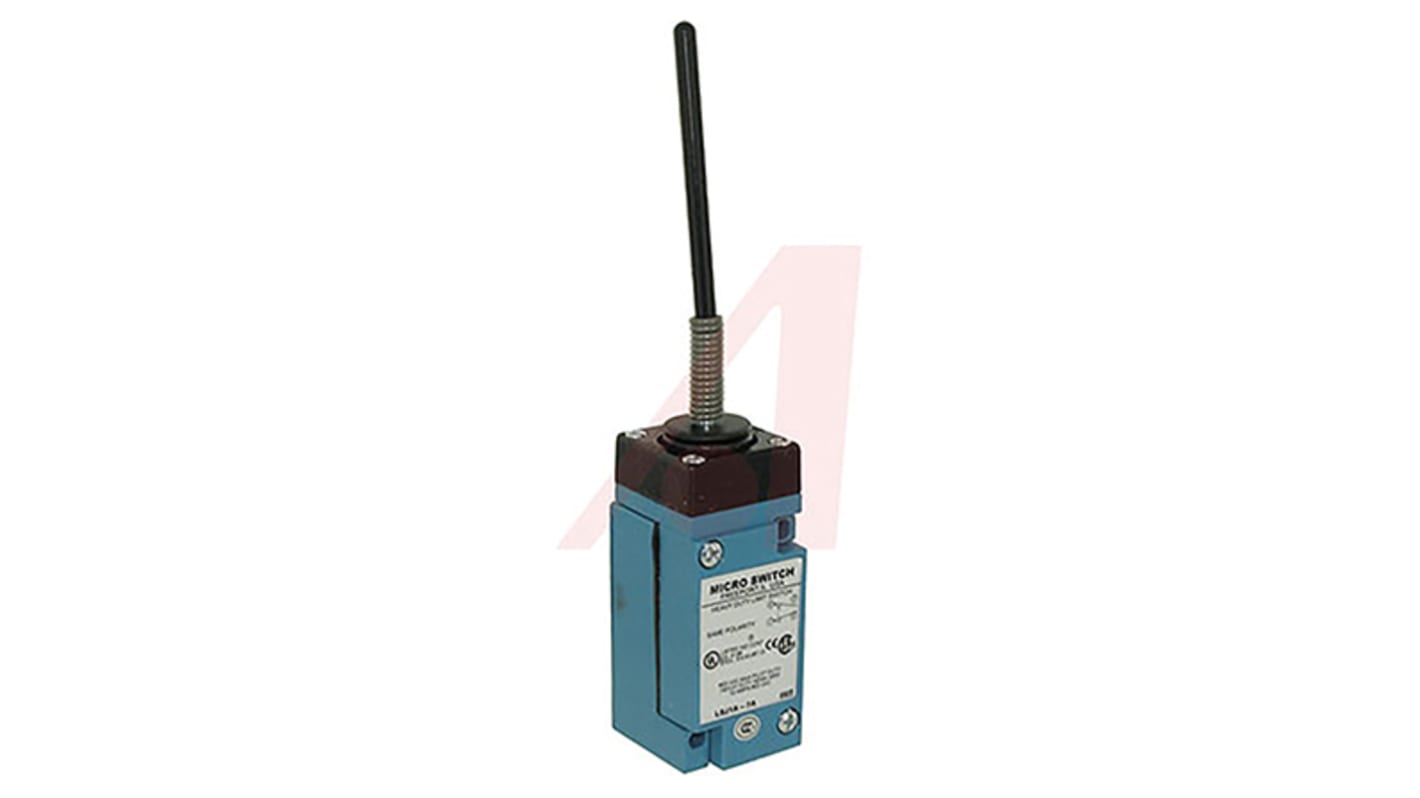

Honeywell HDLS Series Coil Spring Limit Switch, SPDT, IP67, IP66, IP65, Die Cast Zinc Housing, 600V ac, 10A
- RS Stock No.:
- 821-1340
- Mfr. Part No.:
- LSYJC1A-7N
- Brand:
- Honeywell
Subtotal (1 unit)*
£361.63
(exc. VAT)
£433.96
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 23 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £361.63 |
*price indicative
- RS Stock No.:
- 821-1340
- Mfr. Part No.:
- LSYJC1A-7N
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Coil Spring | |
| Product Type | Limit Switch | |
| IP Rating | IP67, IP66, IP65 | |
| Contact Configuration | SPDT | |
| Housing Material | Die Cast Zinc | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Series | HDLS | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -12°C | |
| Switching AC Voltage | 600V ac | |
| Maximum Operating Temperature | 121°C | |
| Depth | 1.745in | |
| Standards/Approvals | CCC, CE, CSA, EN, IEC, RoHS, UL | |
| Length | 210.03mm | |
| Width | 1.62in | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 50000000Cycles | |
| Mounting Orientation | Side | |
| Conduit Entry | 12.7 mm | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Coil Spring | ||
Product Type Limit Switch | ||
IP Rating IP67, IP66, IP65 | ||
Contact Configuration SPDT | ||
Housing Material Die Cast Zinc | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Series HDLS | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -12°C | ||
Switching AC Voltage 600V ac | ||
Maximum Operating Temperature 121°C | ||
Depth 1.745in | ||
Standards/Approvals CCC, CE, CSA, EN, IEC, RoHS, UL | ||
Length 210.03mm | ||
Width 1.62in | ||
Hazardous Area Certification NO | ||
Mechanical Life 50000000Cycles | ||
Mounting Orientation Side | ||
Conduit Entry 12.7 mm | ||
Honeywell HDLS Series Limit Switch, IP67, 10A Switching Current - LSYJC1A-7N
This limit switch is a Compact mechanical device designed to detect and control position in industrial automation systems. It provides change-of-state signalling through a snap-action contact mechanism and is intended for side-mounted installation in equipment where robust environmental protection and sustained operation are required.
Features and Benefits:
• Snap-action contacts deliver fast state change for precise control
• SPDT contact arrangement enables single-pole changeover switching
• Coil spring actuator offers consistent actuation force and reset
• Die cast zinc housing resists impact in industrial settings
• Rated for 10A switching current to handle moderate loads
• Mechanical life of 50 million cycles minimises maintenance intervals
• SPDT contact arrangement enables single-pole changeover switching
• Coil spring actuator offers consistent actuation force and reset
• Die cast zinc housing resists impact in industrial settings
• Rated for 10A switching current to handle moderate loads
• Mechanical life of 50 million cycles minimises maintenance intervals
Applications
• Suitable for conveyor end-of-travel detection in production lines
• Ideal for limit sensing on industrial machine tools
• Used for position feedback in material handling systems
• Can be used for safety interlocks on access panels
• Ideal for limit sensing on industrial machine tools
• Used for position feedback in material handling systems
• Can be used for safety interlocks on access panels
What ingress protection levels are provided for use in harsh environments?
The enclosure meets IP67 as well as IP66 and IP65 classifications, allowing protection against dust and temporary immersion or high-pressure water jets depending on installation.
What electrical switching limits should be observed when integrating this device?
The switch is suitable for AC circuits up to 600V and DC circuits up to 250V with a maximum switching current of 10 A.
What temperature range can it tolerate during operation?
It operates between −12°C and a maximum of 121°C, enabling deployment in elevated-temperature industrial processes.
How is the switch normally mounted and connected on equipment?
It is designed for side mounting and provides a 12.7mm conduit entry for cable or conduit termination.
Which standards and approvals cover its suitability for industrial use?
It carries recognised approvals including CCC, CE, CSA, EN, IEC, RoHS and UL confirming conformity to multiple regulatory and safety frameworks.
Approvals
UL, CSA.
Standards
IP65, IP66, IP67
HDLS switches have a IP65, IP66 and IP67 rating. This means they are dust-tight and offer protection against water jets, heavy seas and the effects of immersion.
NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
Type 1: Enclosures that meet Type 1 are for indoor use, and provide some limited protection for the enclosed equipment.
Type 3: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as windblown dust) and the ingress of water (such as rain or snow). Enclosures that meet NEMA 3 offer protection against ice forming externally.
Type 4: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as falling dirt and windblown dust) and the ingress of water (such as rain, snow or sleet alongside splashing water and hose directed water). Enclosures that meet NEMA 3 offer protection against ice forming externally.
Type 4X: Allows for indoor our outdoor use and provides some ptoection against windust dust and rain, corroision, splashing water and hose directed water.
Type 6: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as falling dirt and windblown dust) and the ingress of water (such as rain, snow or sleet alongside splashing water and hose directed water). Enclosures that meet NEMA 4 offer protection against ice forming externally.
Type 6P: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from solid objects (such as falling dirt and windblown dust) and the ingress of water (such as hose directed water). Enclosures that meet the NEMA 6P requirement also offer protection against water when being submerged at a limited depth.
Type 12: Limit switches that meet Type 12 requirements provide limited protection against dust, falling dirt and non-corrosive liquids.
Type 13: Enclosures that meet Type 13 are suited to harsh environments. Enclosures can be used indoors and provide protection against access to hazardous parts. They offer protection against solid objects such as falling dirt, windblown dirt, fibres and lint. They provide a level of protection from dripping and splashing water and other liquids such as spraying splashing and seepage of oil and non-corrosive coolants."
HDLS switches have a IP65, IP66 and IP67 rating. This means they are dust-tight and offer protection against water jets, heavy seas and the effects of immersion.
NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
Type 1: Enclosures that meet Type 1 are for indoor use, and provide some limited protection for the enclosed equipment.
Type 3: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as windblown dust) and the ingress of water (such as rain or snow). Enclosures that meet NEMA 3 offer protection against ice forming externally.
Type 4: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as falling dirt and windblown dust) and the ingress of water (such as rain, snow or sleet alongside splashing water and hose directed water). Enclosures that meet NEMA 3 offer protection against ice forming externally.
Type 4X: Allows for indoor our outdoor use and provides some ptoection against windust dust and rain, corroision, splashing water and hose directed water.
Type 6: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from foreign objects (such as falling dirt and windblown dust) and the ingress of water (such as rain, snow or sleet alongside splashing water and hose directed water). Enclosures that meet NEMA 4 offer protection against ice forming externally.
Type 6P: Allows for indoor or outdoor use and provides a degree of protection against access to hazardous parts. The enclosures provide some protection from solid objects (such as falling dirt and windblown dust) and the ingress of water (such as hose directed water). Enclosures that meet the NEMA 6P requirement also offer protection against water when being submerged at a limited depth.
Type 12: Limit switches that meet Type 12 requirements provide limited protection against dust, falling dirt and non-corrosive liquids.
Type 13: Enclosures that meet Type 13 are suited to harsh environments. Enclosures can be used indoors and provide protection against access to hazardous parts. They offer protection against solid objects such as falling dirt, windblown dirt, fibres and lint. They provide a level of protection from dripping and splashing water and other liquids such as spraying splashing and seepage of oil and non-corrosive coolants."
