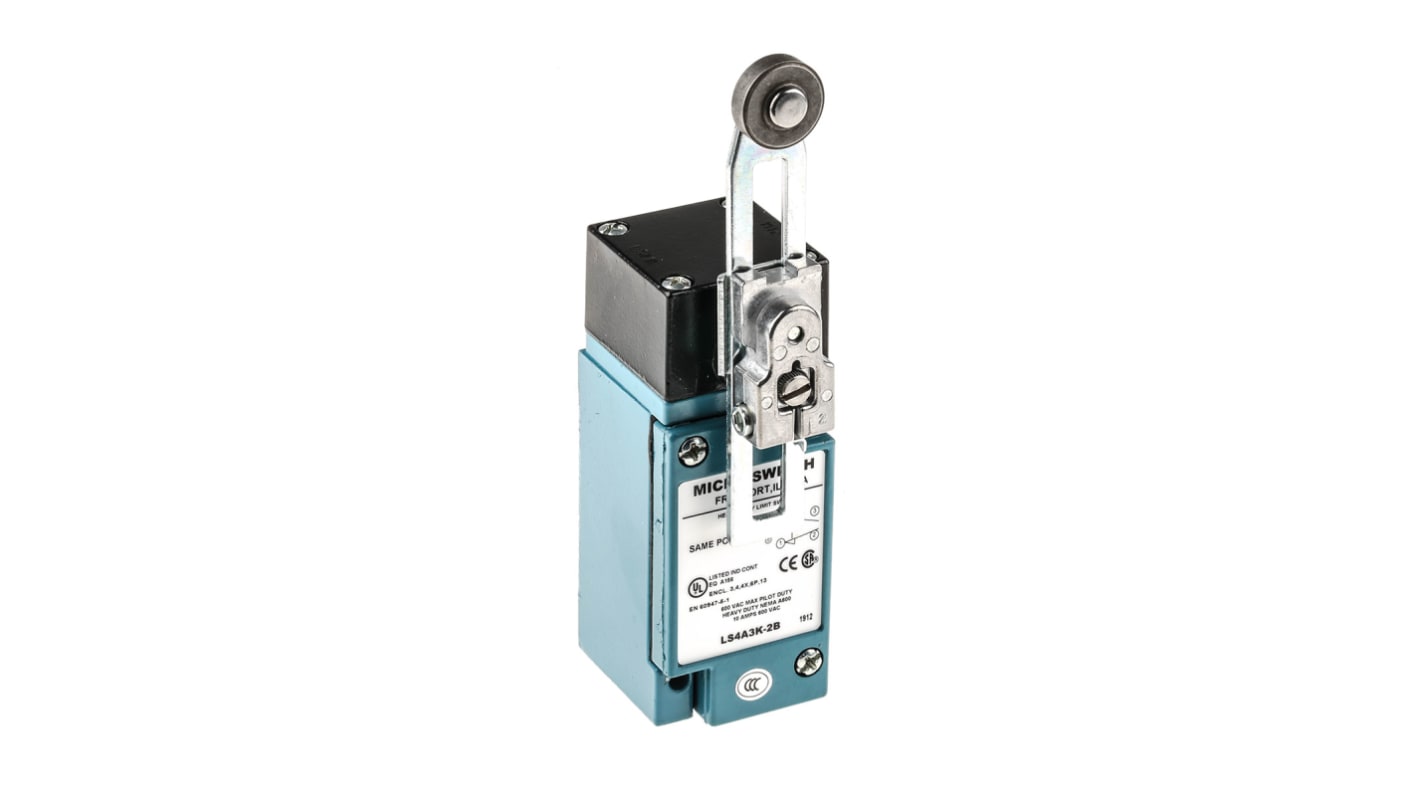

Honeywell HDLS Series Adjustable Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Epoxy Coated Housing, 240V ac, 10A
- RS Stock No.:
- 193-2059
- Distrelec Article No.:
- 303-44-373
- Mfr. Part No.:
- LS4A3K-2B
- Brand:
- Honeywell
Subtotal (1 unit)*
£334.08
(exc. VAT)
£400.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 21 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £334.08 |
*price indicative
- RS Stock No.:
- 193-2059
- Distrelec Article No.:
- 303-44-373
- Mfr. Part No.:
- LS4A3K-2B
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Limit Switch | |
| Actuator Type | Adjustable Roller Lever | |
| IP Rating | IP67 | |
| Contact Configuration | SPDT | |
| Housing Material | Die Cast Zinc Epoxy Coated | |
| Contact Type | Snap Action | |
| Terminal Type | M20 | |
| Switching Current | 10A | |
| Series | HDLS | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -12°C | |
| Maximum Operating Temperature | 121°C | |
| Length | 106.7mm | |
| Width | 41.1mm | |
| Standards/Approvals | UL, CSA, CE | |
| Depth | 62mm | |
| Hazardous Area Certification | No | |
| Operating Force | 17.8N | |
| Mechanical Life | 50000000Operations | |
| Conduit Entry | 20 mm | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Limit Switch | ||
Actuator Type Adjustable Roller Lever | ||
IP Rating IP67 | ||
Contact Configuration SPDT | ||
Housing Material Die Cast Zinc Epoxy Coated | ||
Contact Type Snap Action | ||
Terminal Type M20 | ||
Switching Current 10A | ||
Series HDLS | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -12°C | ||
Maximum Operating Temperature 121°C | ||
Length 106.7mm | ||
Width 41.1mm | ||
Standards/Approvals UL, CSA, CE | ||
Depth 62mm | ||
Hazardous Area Certification No | ||
Operating Force 17.8N | ||
Mechanical Life 50000000Operations | ||
Conduit Entry 20 mm | ||
- HDLS Series Limit and Enclosed Switches Rotary Actuated Switches Data Sheet
- HDLS Series Limit and Enclosed Switches -Heavy Duty Limit Switches Data Sheet
- LS4A3K-2B Technical Data Sheet
- HDLS Series Switches Installation Instructions
- Honeywell Limit Switch Comparison
- Application Note - Sensors and Switches in Oil Rig Applications
Honeywell HDLS Series Limit Switch, 20mm Conduit Entry, Die Cast Zinc Housing - LS4A3K-2B
This limit switch provides electromechanical position detection for industrial automation and control systems, using a roller-actuated lever to convert mechanical movement into an electrical change. It is designed for harsh environments where robust enclosure protection and reliable switching are required, fitting installations that need a compact, conduit-ready actuator with snap-action contact behaviour.
Features and Benefits:
• Die-cast zinc housing offering enhanced mechanical protection for installations
• IP67 ingress protection enabling operation in dusty or water-exposed locations
• SPDT snap-action contacts delivering fast state change and predictable switching
• Rated switching capacity of 10A at 240V AC for substantial load handling
• Mechanical endurance of 50 million operations reducing maintenance frequency
• Operating temperature range supporting use up to 121°C for high-temperature tasks
• IP67 ingress protection enabling operation in dusty or water-exposed locations
• SPDT snap-action contacts delivering fast state change and predictable switching
• Rated switching capacity of 10A at 240V AC for substantial load handling
• Mechanical endurance of 50 million operations reducing maintenance frequency
• Operating temperature range supporting use up to 121°C for high-temperature tasks
Applications
• Suitable for conveyor end-of-travel detection in manufacturing lines
• Used for limit sensing on industrial presses and machine tools
• Ideal for position feedback on robotic pick-and-place mechanisms
• Can be used for gate or hatch position monitoring in outdoor installations
• Used with control panels requiring a Compact switch with conduit entry
• Used for limit sensing on industrial presses and machine tools
• Ideal for position feedback on robotic pick-and-place mechanisms
• Can be used for gate or hatch position monitoring in outdoor installations
• Used with control panels requiring a Compact switch with conduit entry
What conduit size does it accept for cable entry?
It accepts an M20 conduit entry allowing standard industrial gland fittings.
How does the actuator type affect mounting versatility?
The adjustable roller lever enables alignment with various cam profiles and travel directions to suit differing mechanical linkages.
What electrical connection style is provided for wiring?
Termination is via a Terminal designated M20 for secure cable or gland attachment in control enclosures.
How Compact is the unit for constrained panel spaces?
The unit has a length of 106.7mm and width of 41.1mm, allowing fitting into confined assemblies without an excessive footprint.
Approvals
UL, CSA
Standards
EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300
