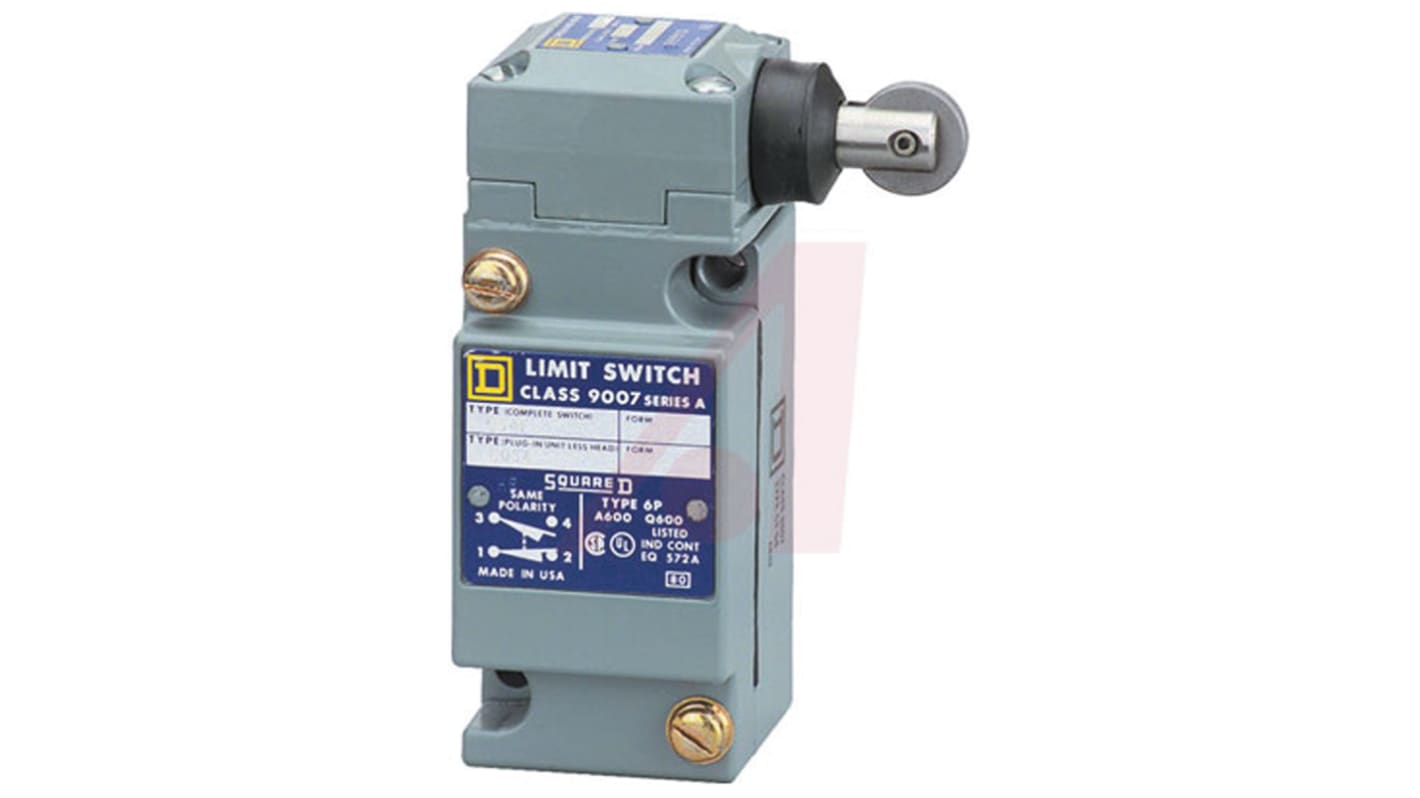

Telemecanique Sensors 9007 Series Coil Spring Limit Switch, 1 NO/1 NC, IP67, Zinc Zamak Alloy Housing, 600V ac, 10A
- RS Stock No.:
- 814-8074
- Mfr. Part No.:
- 9007C54F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£419.20
(exc. VAT)
£503.04
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £419.20 |
*price indicative
- RS Stock No.:
- 814-8074
- Mfr. Part No.:
- 9007C54F
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Coil Spring | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP67 | |
| Housing Material | Zinc Zamak Alloy | |
| Contact Type | Snap Action | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Series | 9007 | |
| Switching AC Voltage | 600V ac | |
| Minimum Operating Temperature | -28.9°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA, CE, UL, RoHS | |
| Width | 39mm | |
| Depth | 45mm | |
| Length | 102mm | |
| Hazardous Area Certification | No | |
| Operating Force | 4lb | |
| Mechanical Life | 1000000Operations | |
| Mounting Orientation | Front | |
| Conduit Entry | 12.7 mm | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Coil Spring | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP67 | ||
Housing Material Zinc Zamak Alloy | ||
Contact Type Snap Action | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Series 9007 | ||
Switching AC Voltage 600V ac | ||
Minimum Operating Temperature -28.9°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA, CE, UL, RoHS | ||
Width 39mm | ||
Depth 45mm | ||
Length 102mm | ||
Hazardous Area Certification No | ||
Operating Force 4lb | ||
Mechanical Life 1000000Operations | ||
Mounting Orientation Front | ||
Conduit Entry 12.7 mm | ||
- COO (Country of Origin):
- MX
9007C Heavy Duty Industrial Limit Switches
Class 9007 type C heavy duty industrial limit switches specially designed for use in hazardous application locations: gases (explosion) and dust environment.
Standard and compact body types available
Plug-in body
Conforming to NEMA 250
Linear movement (plunger), rotary movement (lever) and multi-directional movement (wobble stick, cat whisker)
Metal, die cast, zinc alloy enclosure
