RS PRO Roller Plunger Limit Switch, 1 NO/1 NC, IP67, Zinc Zamak Alloy Housing, 400V ac, 10A

RS Stock No.:: 136-248
Brand:: RS PRO

RS PRO Roller Plunger Limit Switch, 1 NO/1 NC, IP67, Zinc Zamak Alloy Housing, 400V ac, 10A

Subtotal (1 unit)*

£48.04

(exc. VAT)

£57.65

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 4 unit(s) shipping from 20 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£48.04

*price indicative

RS Stock No.:: 136-248
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Actuator Type	Roller Plunger
	Product Type	Limit Switch
	IP Rating	IP67
	Contact Configuration	1 NO/1 NC
	Housing Material	Zinc Zamak Alloy
	Contact Type	Snap Action
	Terminal Type	M3.5 Screw Clamp Terminal
	Switching Current	10A
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	400V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Width	31.5mm
	Depth	16mm
	Length	70mm
	Standards/Approvals	IEC 60947-5:1/EN 60947-5-1
	Hazardous Area Certification	NO
	Mechanical Life	10000000Cycles
	Conduit Entry	M20x1.5 Cable Gland
	Operating Force	10N

	Select all
	Brand RS PRO
	Actuator Type Roller Plunger
	Product Type Limit Switch
	IP Rating IP67
	Contact Configuration 1 NO/1 NC
	Housing Material Zinc Zamak Alloy
	Contact Type Snap Action
	Terminal Type M3.5 Screw Clamp Terminal
	Switching Current 10A
	Minimum Operating Temperature -25°C
	Switching AC Voltage 400V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Width 31.5mm
	Depth 16mm
	Length 70mm
	Standards/Approvals IEC 60947-5:1/EN 60947-5-1
	Hazardous Area Certification NO
	Mechanical Life 10000000Cycles
	Conduit Entry M20x1.5 Cable Gland
	Operating Force 10N

COO (Country of Origin):: IT

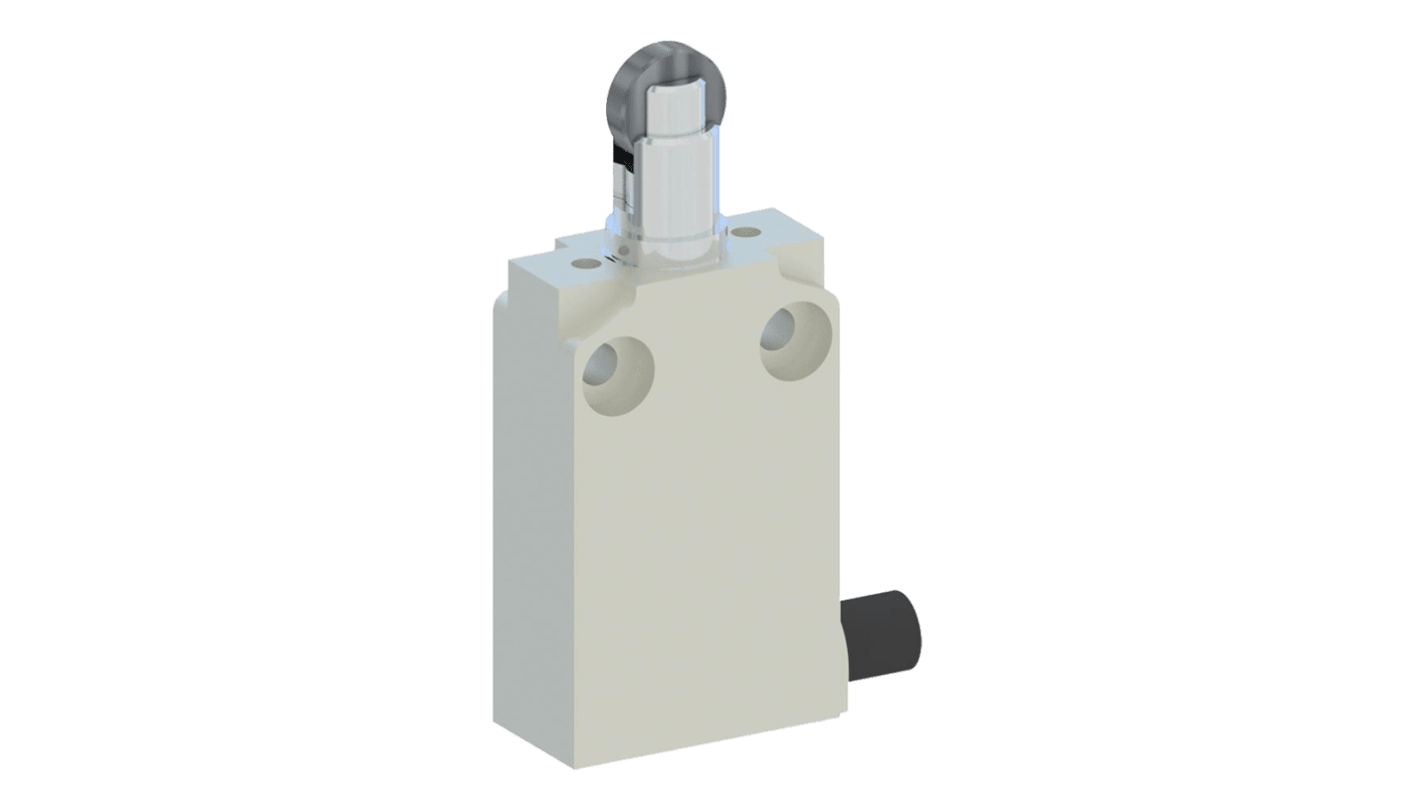

RS PRO Limit Switch with Roller Plunger - 1NO/1NC, 240V AC Max, 10A

RS PRO limit switch with a metal roller plunger is the ideal solution for demanding industrial applications. Designed to provide both versatility and performance, this limit switch performs reliably across various environments—from heavy-duty tasks to extreme conditions. Whether used in manufacturing, automation, or other industrial operations, RS PRO limit switches ensure dependable operation, offering the adaptability needed to integrate seamlessly into your existing systems.

Why Choose RS PRO Limit Switches?

RS PRO offers a diverse selection of limit switches with various actuation heads, dimensions, cable entries, electrical connections, and materials. This range of customisation options allows you to tailor each switch to your exact specifications, ensuring that it meets the unique demands of your application. By providing a perfect fit for your systems, RS PRO limit switches help enhance performance and boost operational efficiency.

Features and Benefits

Presence/Absence Detection

Positioning and Travel Limitation

Object Counting and Monitoring

Pre-wired with UL cable 5 x 0.75

Housing is made from painted zamak.

Metal roller plunger

Snap Action Contacts

Aesthetic and durable design

Standards Met

IEC 60947-5-1, EN 60947-5-1

Applications

Automation and Control

Industrial
