Honeywell GLA Series Adjustable Roller Lever Limit Switch, 2 NO/2 NC, IP67, Die Cast Zinc Housing, 600 V ac, 10 A

RS Stock No.:: 808-3129
Mfr. Part No.:: GLAA20A2B
Brand:: Honeywell

Honeywell GLA Series Adjustable Roller Lever Limit Switch, 2 NO/2 NC, IP67, Die Cast Zinc Housing, 600 V ac, 10 A

Bulk discount available

Subtotal (1 unit)*

£234.11

(exc. VAT)

£280.93

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 12 unit(s) shipping from 10 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£234.11
5 - 9	£224.73
10 +	£213.05

*price indicative

Upgrade to Honeywell HDLS Limit Switches

Rugged, reliable, and built for tough environments - Honeywell HDLS limit switches deliver long-lasting performance and precise actuation. A simple way to boost durability and reduce downtime.

Shop Here

RS Stock No.:: 808-3129
Mfr. Part No.:: GLAA20A2B
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Adjustable Roller Lever
	Product Type	Limit Switch
	IP Rating	IP67
	Contact Configuration	2 NO/2 NC
	Housing Material	Die Cast Zinc
	Contact Type	Snap Action
	Switching Current	10 A
	Series	GLA
	Switching AC Voltage	600 V ac
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	250 V dc
	Maximum Operating Temperature	85°C
	Length	42mm
	Depth	82mm
	Width	42 mm
	Standards/Approvals	CCC, CE, CSA, UL
	Hazardous Area Certification	No
	Mechanical Life	15000000Operations
	Mounting Orientation	Side
	Conduit Entry	0.5 to 14 NPT

	Select all
	Brand Honeywell
	Actuator Type Adjustable Roller Lever
	Product Type Limit Switch
	IP Rating IP67
	Contact Configuration 2 NO/2 NC
	Housing Material Die Cast Zinc
	Contact Type Snap Action
	Switching Current 10 A
	Series GLA
	Switching AC Voltage 600 V ac
	Minimum Operating Temperature -25°C
	Switching DC Voltage 250 V dc
	Maximum Operating Temperature 85°C
	Length 42mm
	Depth 82mm
	Width 42 mm
	Standards/Approvals CCC, CE, CSA, UL
	Hazardous Area Certification No
	Mechanical Life 15000000Operations
	Mounting Orientation Side
	Conduit Entry 0.5 to 14 NPT

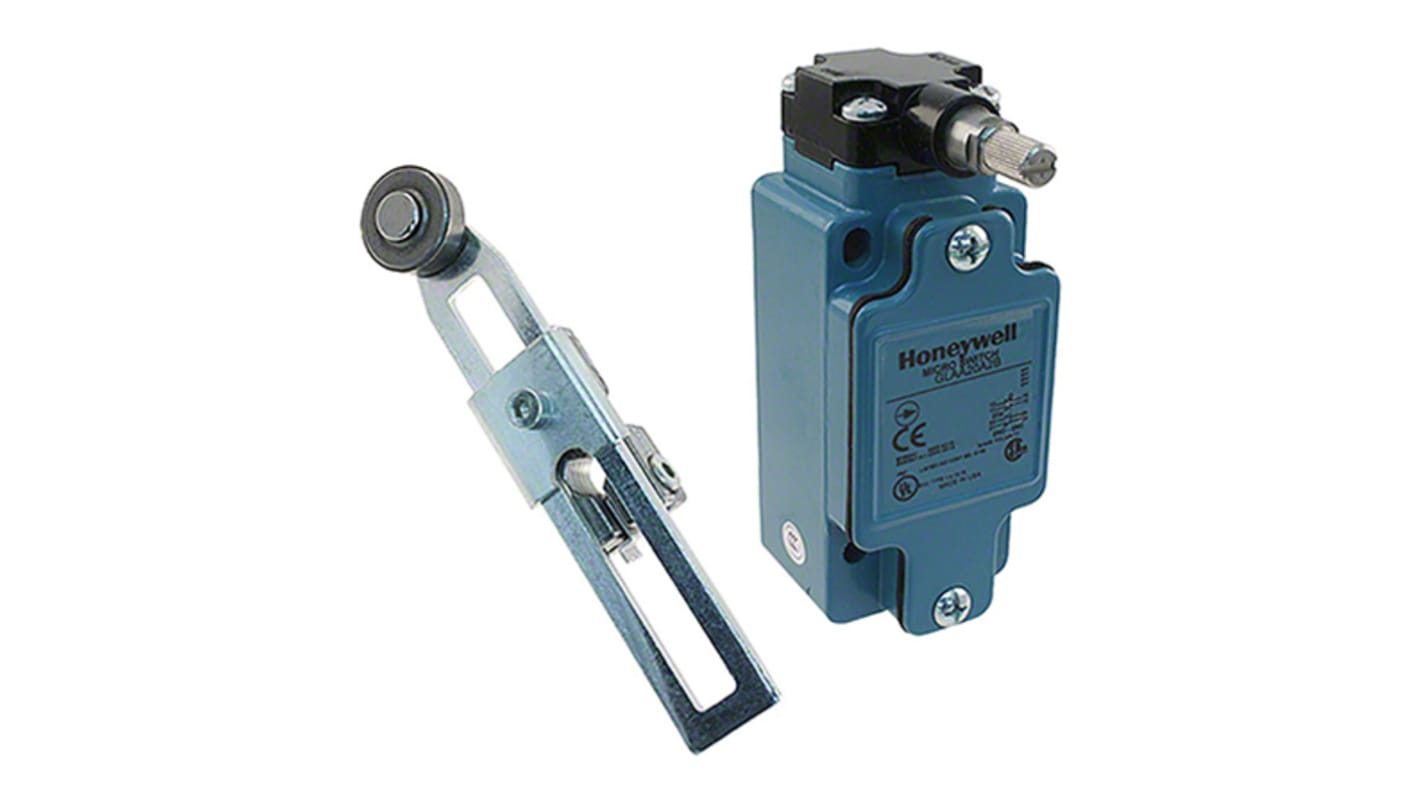

Honeywell Snap-Action Roller Lever Limit Switch, 10A, 250V DC - GLA Series - GLAA20A2B

This roller lever limit switch from Honeywell is a sensing device that uses an actuator to detect the presence of an object. It's supplied ready to install as it includes the actuator and an integral contact block, making assembly quick and simple. The rugged die-cast zinc housing is resistant to abrasion and corrosion for long-lasting performance. Thanks to its broad operating temperature range of -25°C to +85°C, the switch is suitable for use in demanding environments. The silver contacts ensure good electrical conductivity and resistance to corrosion, giving you a reliable electrical connection.

Features & Benefits

• Robust mechanical lifespan of 15 million operations for long-lasting performance

• Compact dimensions of 42 (length) x 42 (width) x 82mm (depth) to save space

• IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes

Applications

• Railway signalling equipment

• Apertures and doors

• Construction machinery

• Cranes and elevators

Is this limit switch adjustable?

Yes. The adjustable actuator is mounted on a rubber roller that allows you to easily shorten or extend its length to match your system requirements.
