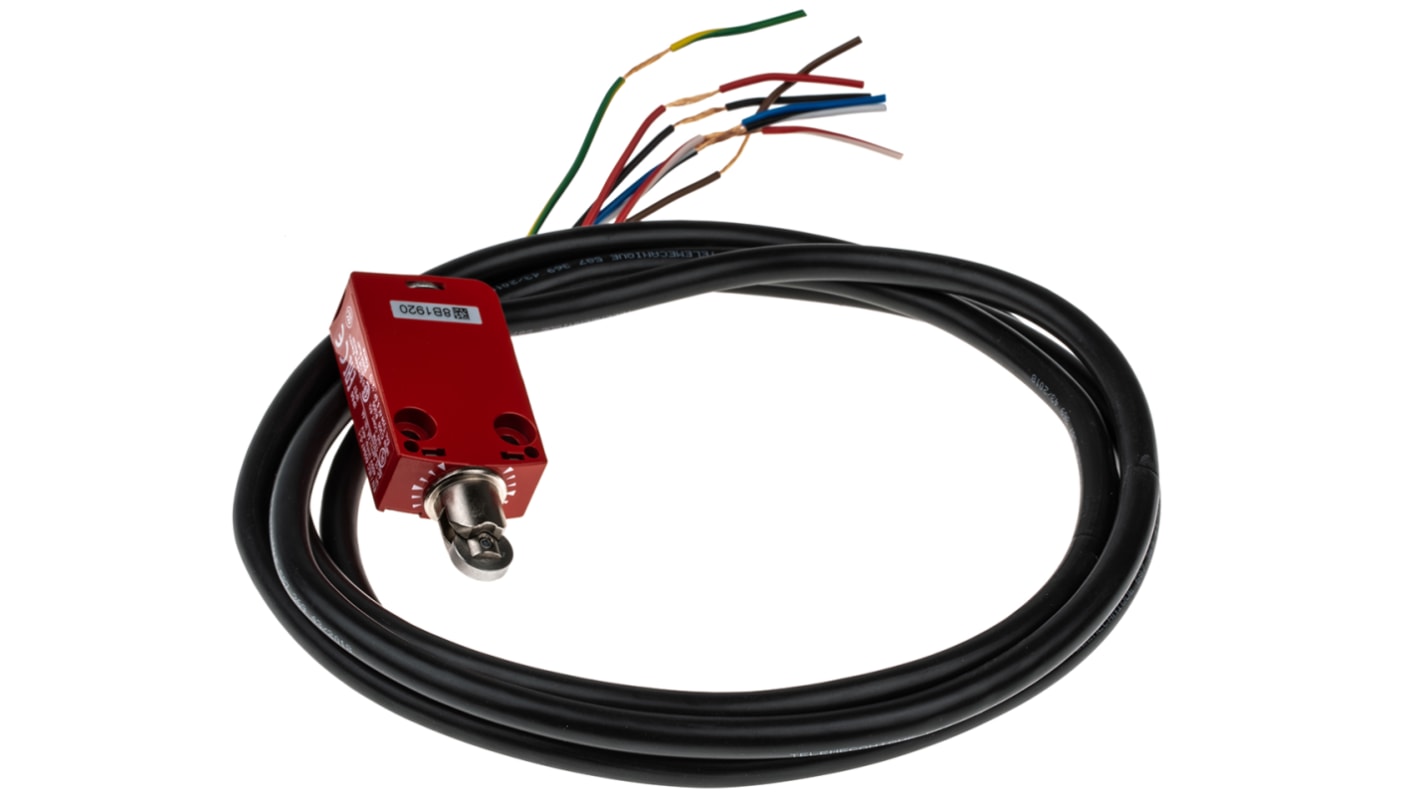

Telemecanique Sensors XCSM Series Plunger Interlock Switch, 1 NO/2 NC, IP68, IP67, Metal Housing, 240V ac, 1.5A
- RS Stock No.:
- 479-3037
- Mfr. Part No.:
- XCSM3902L2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£109.00
(exc. VAT)
£130.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 52 unit(s) shipping from 04 May 2026
- Plus 2 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £109.00 |
*price indicative
- RS Stock No.:
- 479-3037
- Mfr. Part No.:
- XCSM3902L2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Interlock Switch | |
| Actuator Type | Plunger | |
| Contact Configuration | 1 NO/2 NC | |
| IP Rating | IP68, IP67 | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 1.5A | |
| Terminal Type | Cable | |
| Series | XCSM | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, RoHS, REACH, CSA | |
| Depth | 16mm | |
| Length | 70mm | |
| Width | 30mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 10000000Cycles | |
| Operating Force | 7N | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Interlock Switch | ||
Actuator Type Plunger | ||
Contact Configuration 1 NO/2 NC | ||
IP Rating IP68, IP67 | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 1.5A | ||
Terminal Type Cable | ||
Series XCSM | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, RoHS, REACH, CSA | ||
Depth 16mm | ||
Length 70mm | ||
Width 30mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 10000000Cycles | ||
Operating Force 7N | ||
RoHS Status: Exempt
Telemecanique Sensors Safety Limit Switch
The Telemecanique Sensors XCSD series safety limit switch has a plunger actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection and positive opening switching function. This switch is designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with an actuator operated guard switch. When used on its own, it is always installed in positive mode but if combined in pairs then one switch in is positive mode and the other is in negative mode.
Note:
With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.
Features and Benefits
Snap action contacts
Cable length is 2m
Miniature/compact red metal housing, pre-cabled
Plastic protective cover, secured by 5-lobe socket head safety screw
Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°
Linear movement switch (plunger) has an on-end approach only
Minimum mechanical life of 10000000 cycles
Cable composition is 7 x 0.5mm²
Certifications
IP66 rated
IP67 rated
IP68 rated
EN1088
EN/IEC60204-1
EN/IEC60947-5-1
UL508
approved
CSAC22.2 No 14 certified
